6.1.3. Connecting the power supply
Connect M12 male
connector to
POWER IN
and M12 female
connector to
POWER OUT
Screw Size Torque Tool Required
M12 0.6 N·m [5 in·lb] M12 Torque Wrench
The pin assignment of the slots can be found in Section 3.1.3, “Connections”.
1
2
3
4
5

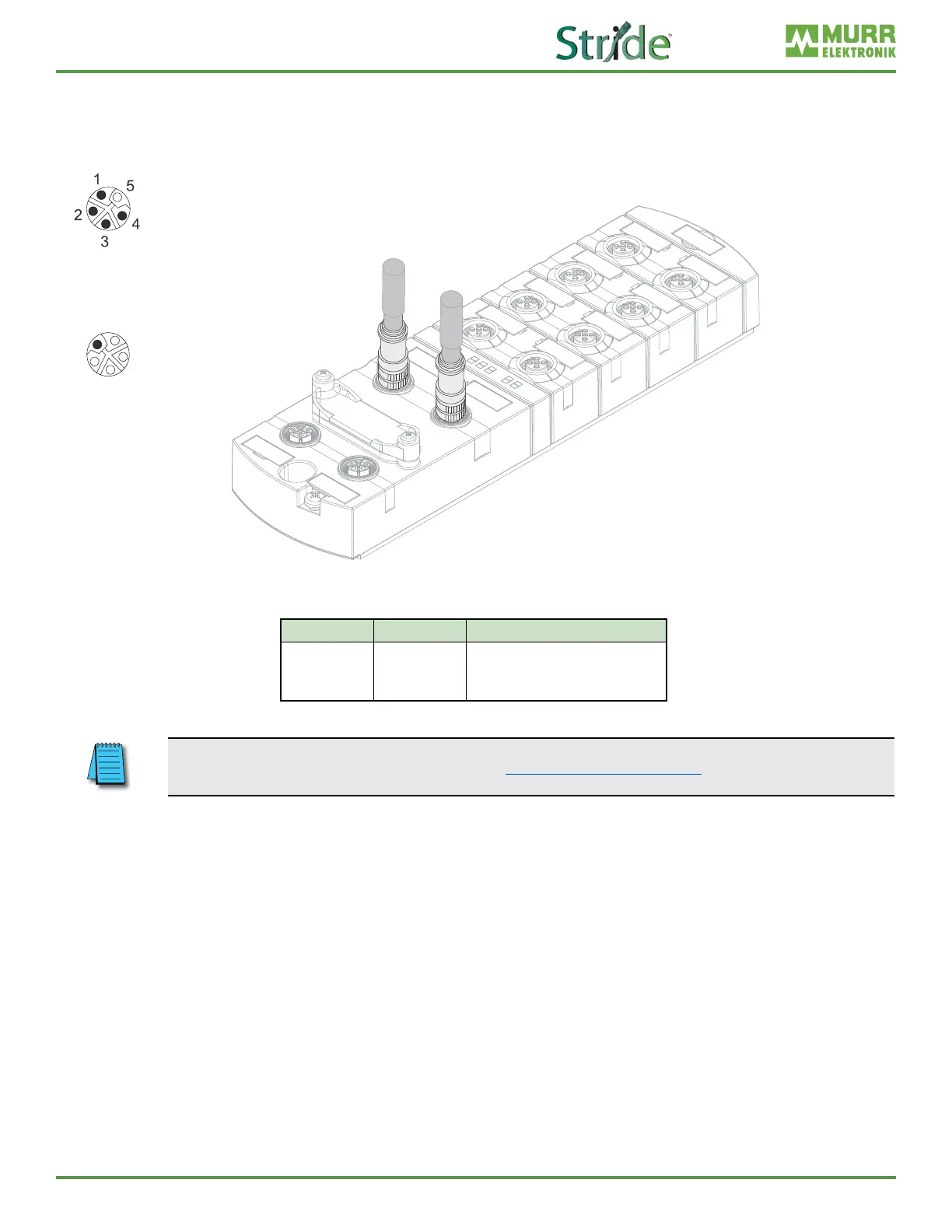

Fig. 6-3: Example of M12 connection (Power).
