5.4. Mounting the module
NOTICE
Material damage due to incorrect installation
The fastening screws and tightening torques depend on the surface of the installation site.
➔ Use fastening screws that are suitable for the mounting surface structure!
➔ Carefully tighten the screws! The indicated tightening torques must be adhered to.
NOTICE
Material damage through improper use
Do not use the modules as climbing aids. Improper use can cause the modules to break o or to be
damaged otherwise
➔ Install the modules in such a way that they cannot be used as climbing aid!
Screw Size Torque Tool Required
M6 3 N·m [26 in·lb]
Phillips Screwdriver,
Part # TW-SD-PH-2
M6
M6
M4
208.5 [8.209]
≤60 [2.4]

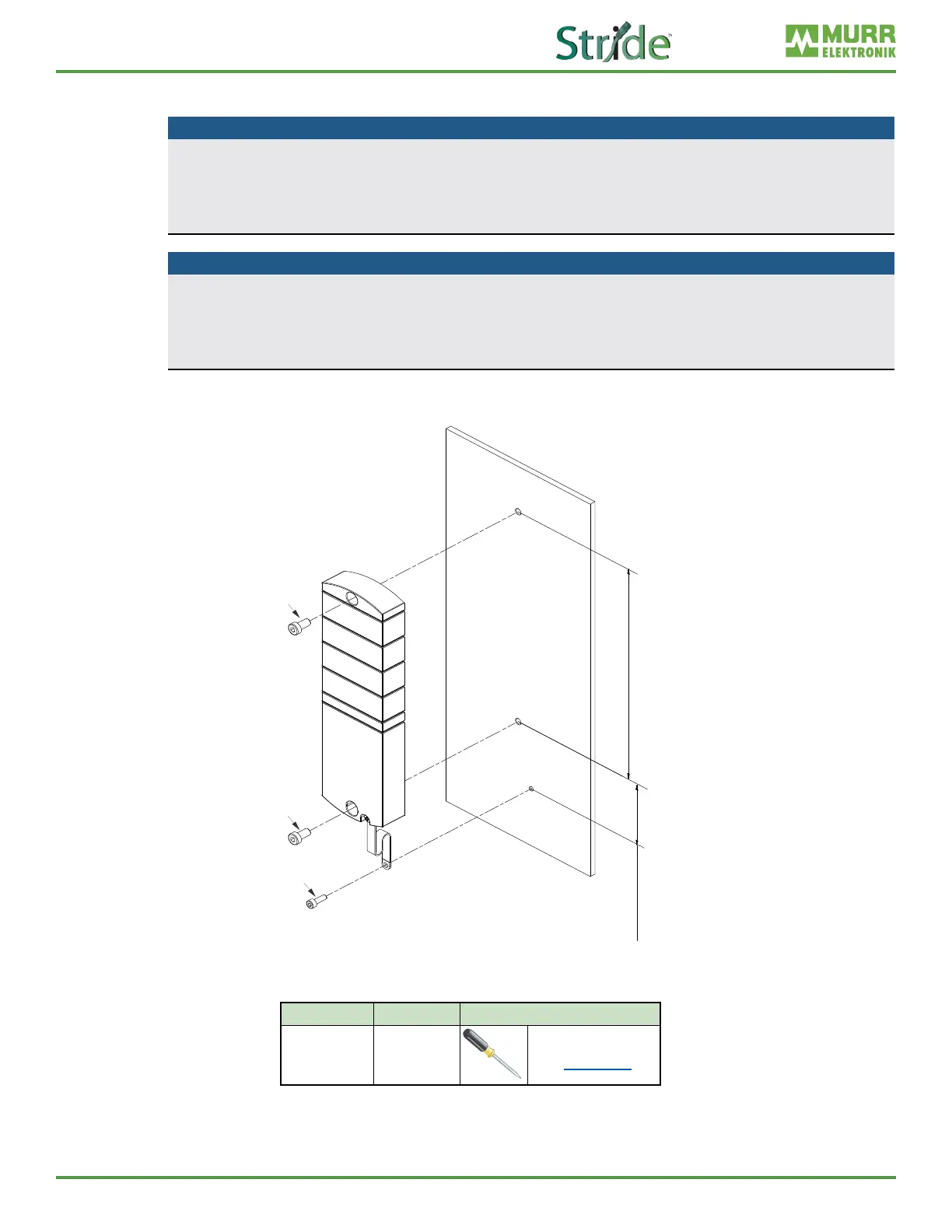

Fig. 5-3: Fasten module. Dimensions in mm [in] (gure similar)
