Web Server (WebUI) Powered by
Version 1, May 2022
10.2. Menu bar
In the rst line of the system tree, the device is displayed with part number and product name.
The menu bar comprises the following clickable menu items:
◼ Status
◼ Parameters
◼ Diagnostics
◼ Maintenance

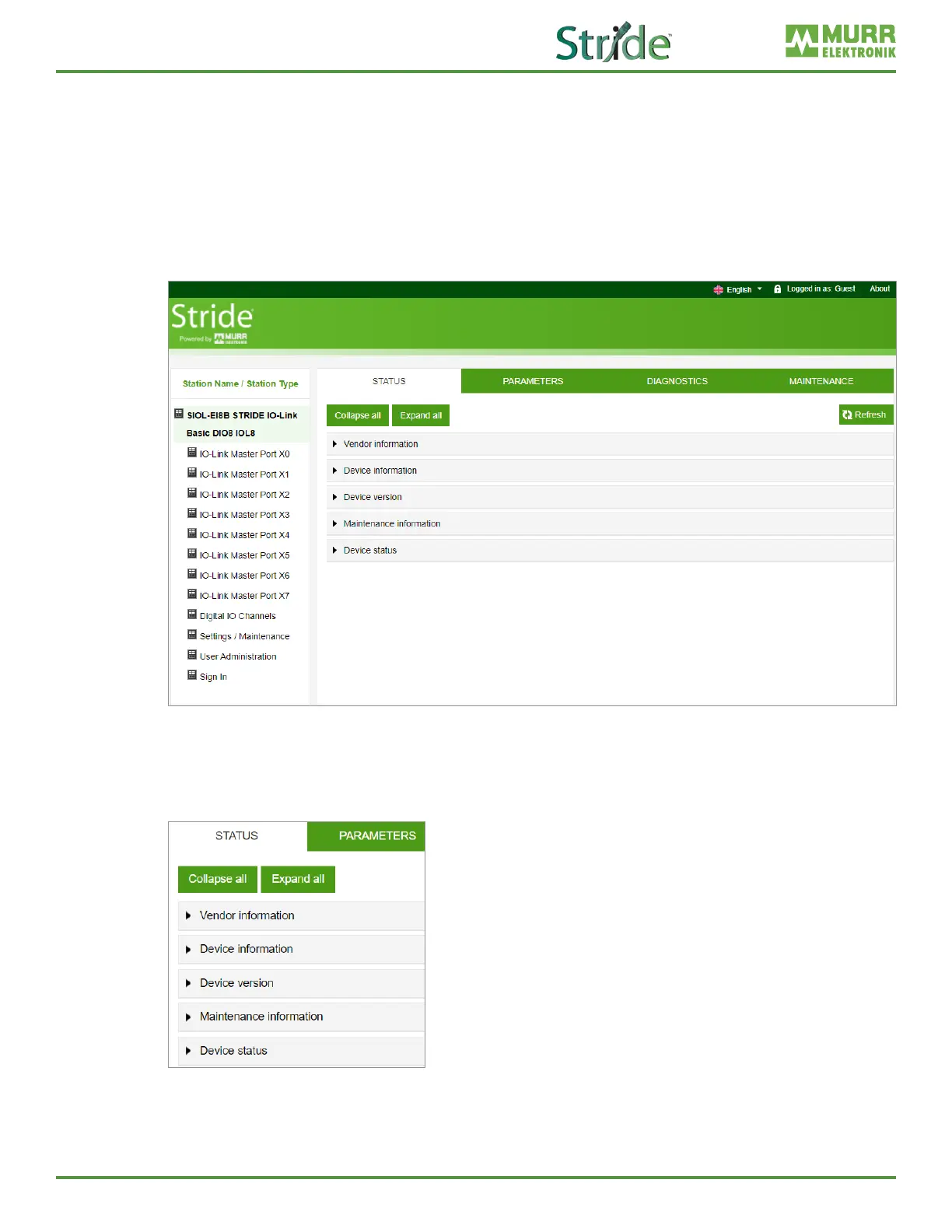

Fig. 10-3: Menu bar.
10.2.1. STATUS menu
The “Status” menu item contains the following subitems:
Fig. 10-4: Menu item “Status”.
