3.1.3. Connections

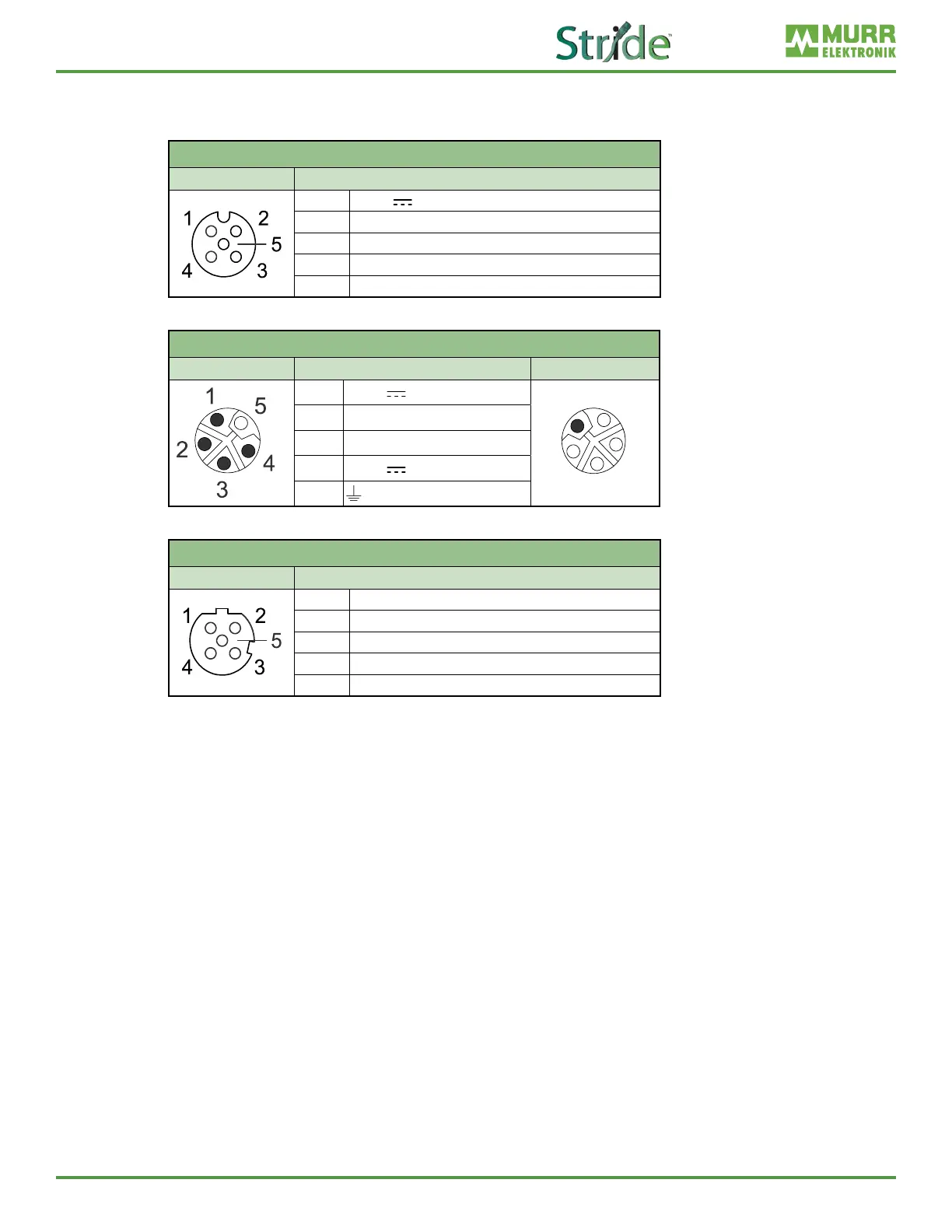

3.1.3.1. Pin assignments
M12 Female Connector, A-coded
X0–X7
Pin 1 24VDC
Pin 2 DI/DO
Pin 3 0V
Pin 4 DI/DO/IO-Link
Pin 5 0V
M12 Male/Female Connector, L-coded, POWER IN/OUT
XD1 XD2
Pin 1 24VDC US (operating voltage)
1
2
3
4
5
Pin 2 0V UA (actuator voltage)
Pin 3 0V US
Pin 4 24VDC UA
Pin 5
M12 Female Connector, D-coded, Port 1 / Port 2
XF1/XF2
Pin 1 TD +
Pin 2 RD +
Pin 3 TD -
Pin 4 RD -
Pin 5 n.c.
