10.3. IO-Link Master Port
The system tree displays 8 IO-Link master ports (X0 ... X7) that can be selected individually. Depending
on the user role, information can be read or functions can be congured here. When IO-Link
communication is active, the IO-Link device name automatically appears under the relevant port.
Fig. 10-8: IO-Link master port.
10.3.1. STATUS menu
The IO-Link master status is displayed here in the Status menu.

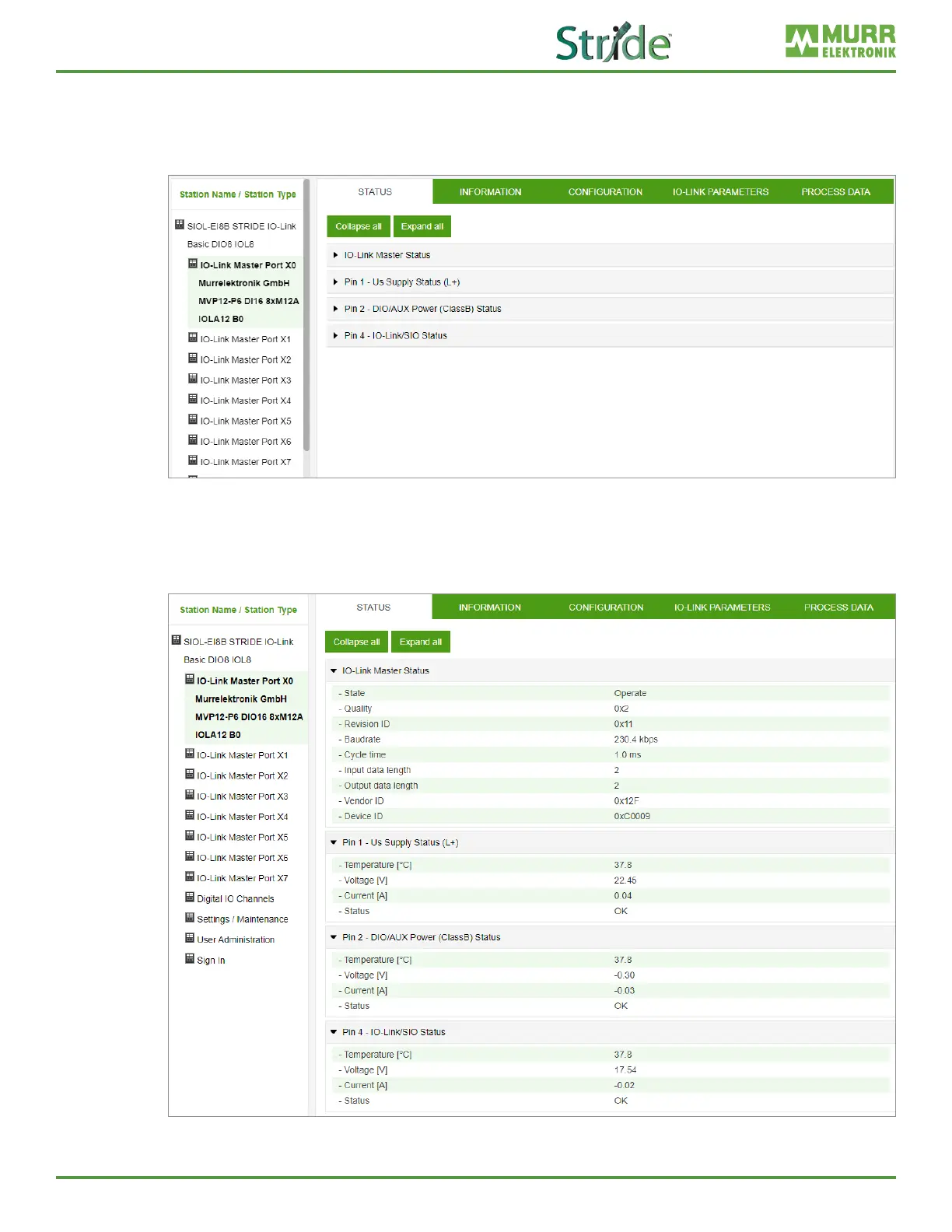

Fig. 10-9: IO-Link master port – IO-Link master status.
