9.1.7. LED indication for POWER US and UA

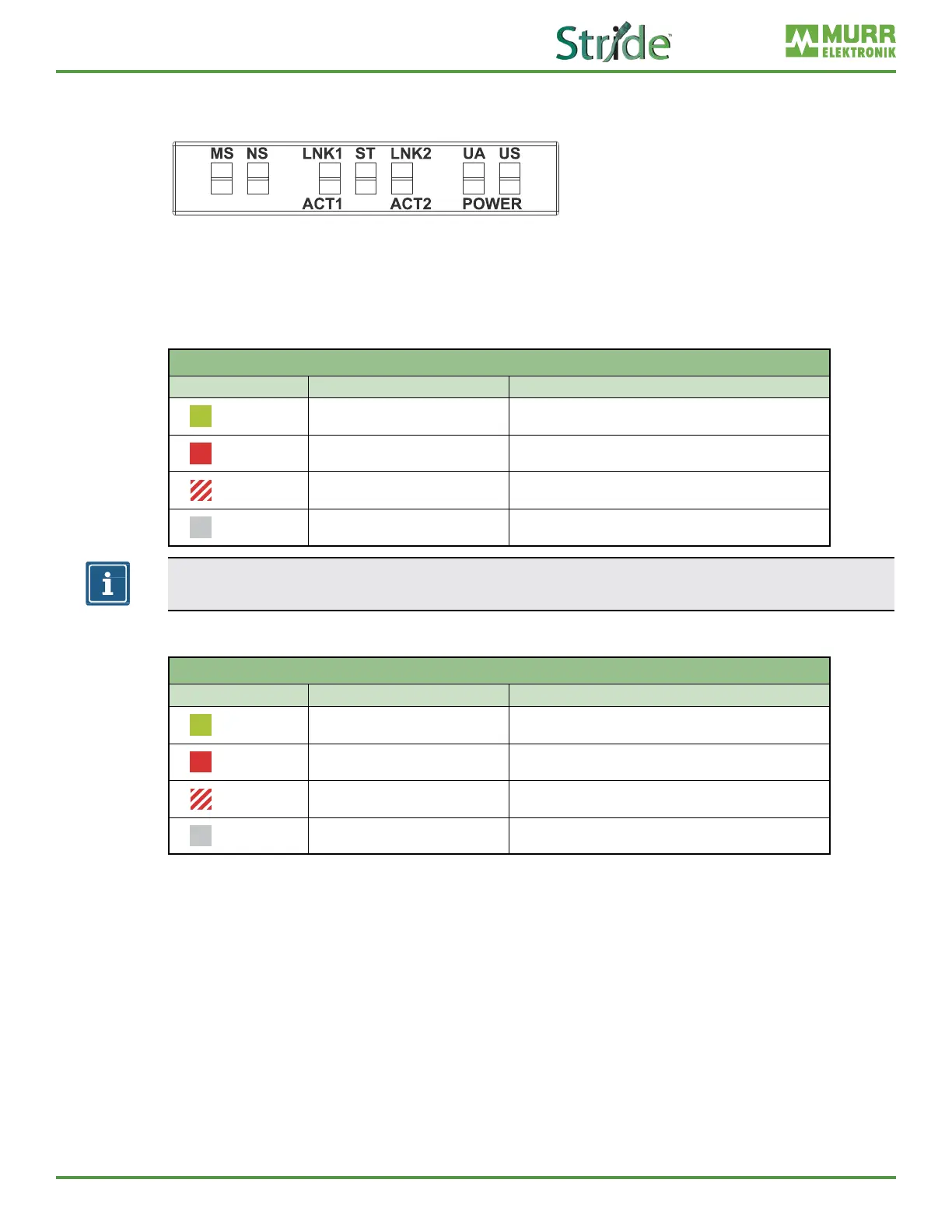

LED-Indication Overview
The power LEDs indicate the state of the supply voltages.
◼ UA actuator voltage
◼ US operating voltage
LED Indication POWER US
LED Indication POWER US
Indication Condition Description
Green
Steady on
18V ≤ US ≤30V
Error-free operation
Red
Steady on
11V ≤ US ≤18V
Undervoltage
Red
Flashing at 4 Hz
US >30V
Overvoltage
Off
Off
US <11V
No voltage
NOTE
At US <18V, an error-free operation is no longer guaranteed.
LED Indication POWER UA
LED Indication POWER UA
Indication Condition Description
Green
Steady on
18V ≤ UA ≤30V
Error-free operation
Red
Steady on
11V ≤ UA ≤18V
Undervoltage
Red
Flashing at 4 Hz
UA >30V
Overvoltage
Off
Off
UA <11V
No voltage
