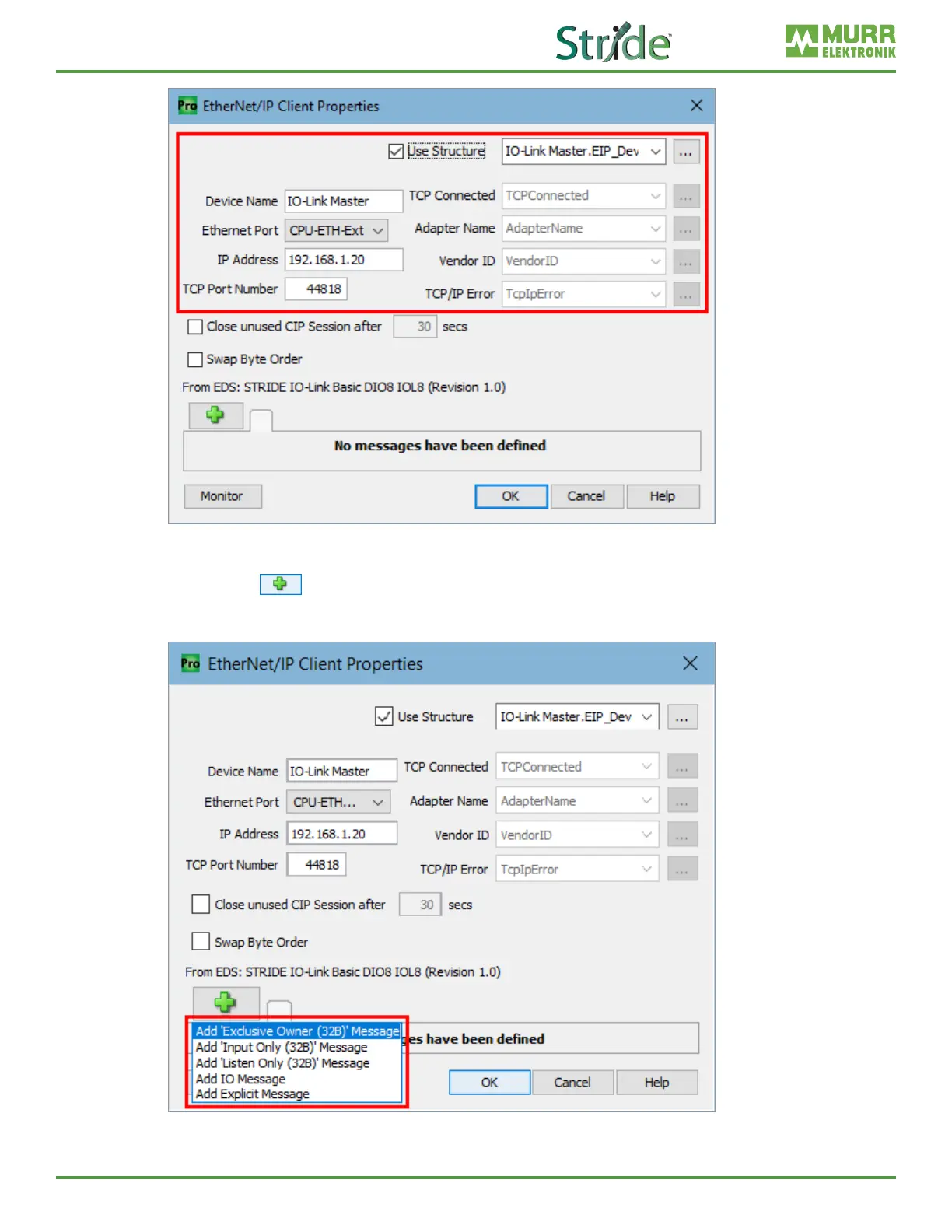

Fig. 7-6: EtherNet/IP Device Conguration.
3. Click the icon to add a new EtherNet/IP message. A list of available connections will be
displayed. The appropriate selection will depend on the connected IO-Link devices. For this example,
we have selected the ‘Exclusive Owner (32B)’ Message.
Fig. 7-7: EtherNet/IP Device Message Options.
