SIOL-EI8B-USER-M
35
Startup Powered by
Version 1, May 2022

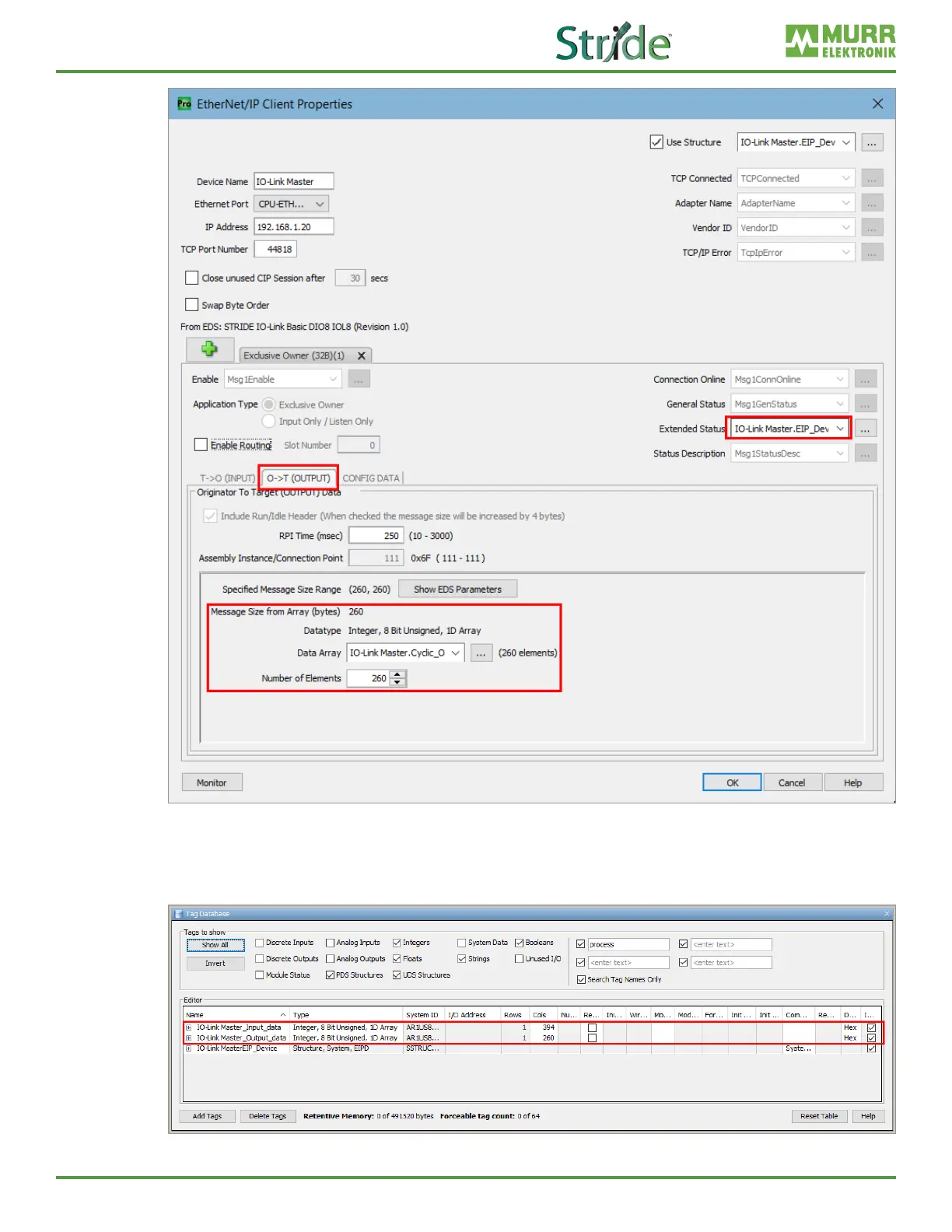

Fig. 7-9: EtherNet/IP Device O->T Conguration.
The input and output tags created for T->O and O->T data can be found in the tag database (see the
example in Fig. 7-10).
Fig. 7-10: Tag Database – IO-Link Master Input and Output data tags.
