If the Details context-sensitive soft key is enabled, you can view the Phone Information - Details
screen. In the Services menu, select Phone Information and then press the Details context-
sensitive soft key.

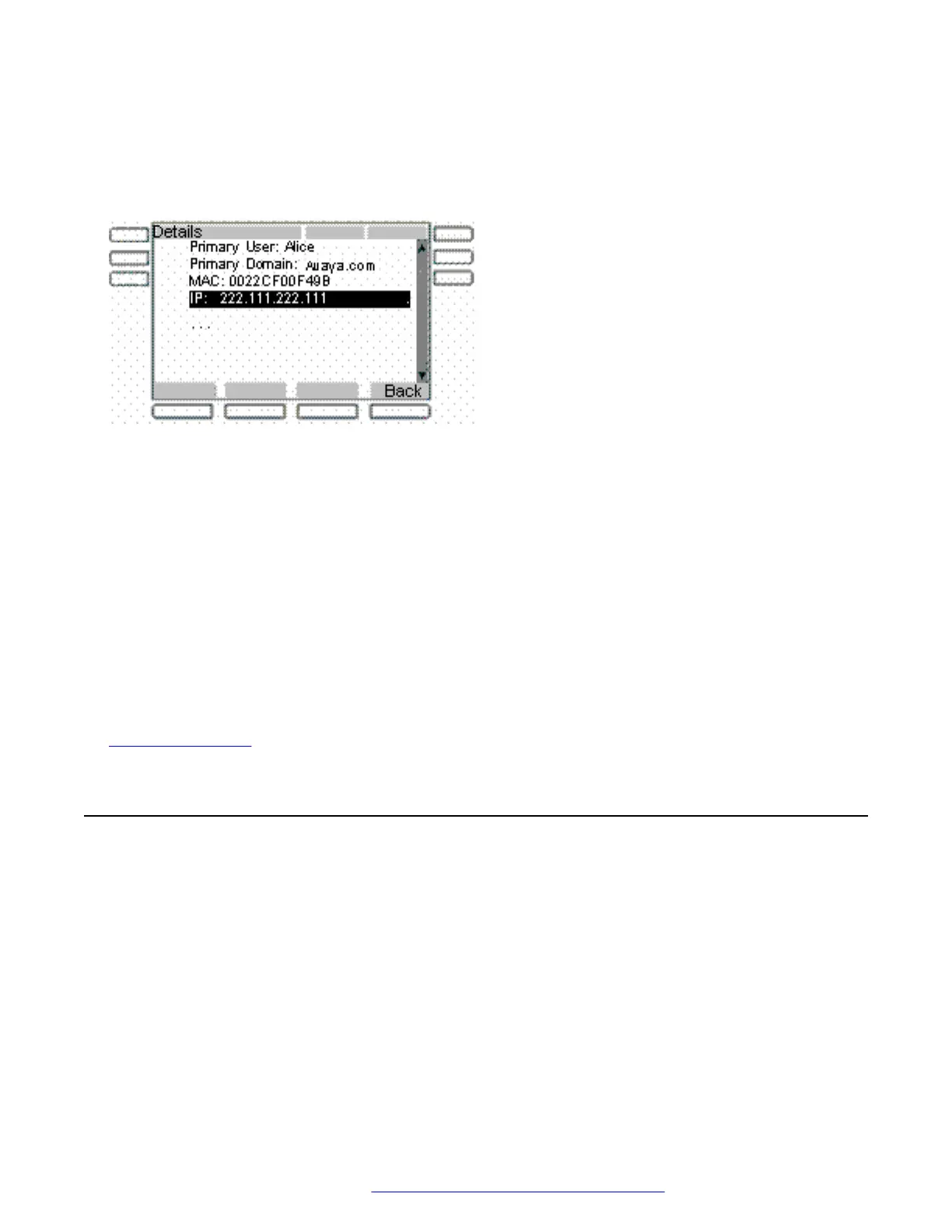

The following figure shows an example of the Phone Information - Details screen
Figure 54: Phone Information - Details screen
The Phone Information - Details screen displays the following information:
• Primary User: Primary logged-in User name.
• Primary Domain: Primary login domain.
• MAC: Device MAC address.
• IP: IP Deskphone IP Address
• Device Licensing/Token usage information: License or token usage information for the IP
Deskphone. It is an optional item in the IP Deskphone information.
To dismiss the Phone Information - Details screen and return to the previous display, press the
Back context-sensitive soft key.
Related links
Advanced features on page 219
Screensaver/screen lock
You can lock the display of the IP Deskphone using a timed Screensaver/ Lock.
When the screensaver is active, it clears the programmed keys of the plugged-in Expansion Module.
If you have logged into the IP Deskphone, then you are not logged out, but the line key label clears
and makes the IP Deskphone inactive.
The ScrnSvr context-sensitive soft key is located on the idle screen. This key is available only if the
screensaver has been enabled, and is accessed by pressing the More… context-sensitive soft key
until ScrnSvr appears. Pressing the ScrnSvr context-sensitive soft key causes the screensaver
timer to turn off, and activates the previously-selected screensaver.
Choose Prefs > Display > 3. Display Screensaver to display the Screensaver settings screen.
Screensaver/screen lock
August 2017 Avaya 1140E IP Deskphone with SIP Software User Guide 231
Comments on this document? infodev@avaya.com
