Chapter4. Eclipse Edge Configuration and Diagnostics
System Summary
The System Summary screen is the Portal opening screen. It provides a real time
overview of Edge system status. Figure 4-25 shows an example screen for an Edge
terminal with dual ODU protection.

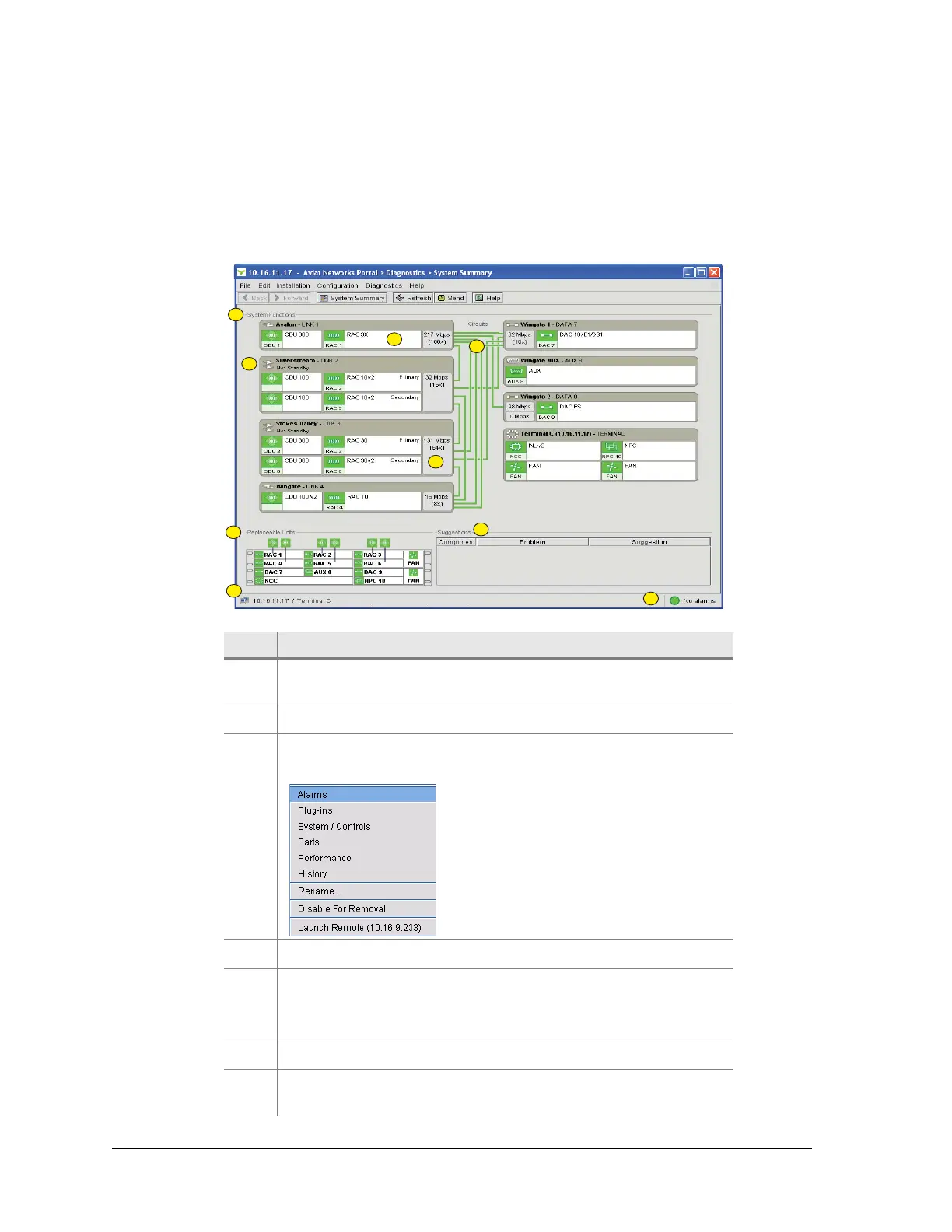

Figure 4-25. Example System Summary Screen for an Eclipse Edge Terminal
Item Description
1 The System Summary screen illustrates the module functions
within an Edge terminal, and module and link status.
2 Shows a protected (dual-ODU) Link module.
3 Right click within a module to view and select an option from a
quick-access menu.
4 Links show configured capacity.
5 Mouse over a circuit to view its trib data.
Right-click in the circuits space to view a shortcut to the
Circuits screen.
6 Summary view of the terminal and its status.
7 IP address, terminal name, site name, and an icon summarizes
terminal status.
