260-668080-001 Rev 002 March 2013 35
Eclipse Edge User Manual
Terminal Information
The Information screen provides user configurable fields for terminal and site name,
site grid, and contact details. Refer to Figure 4-6.

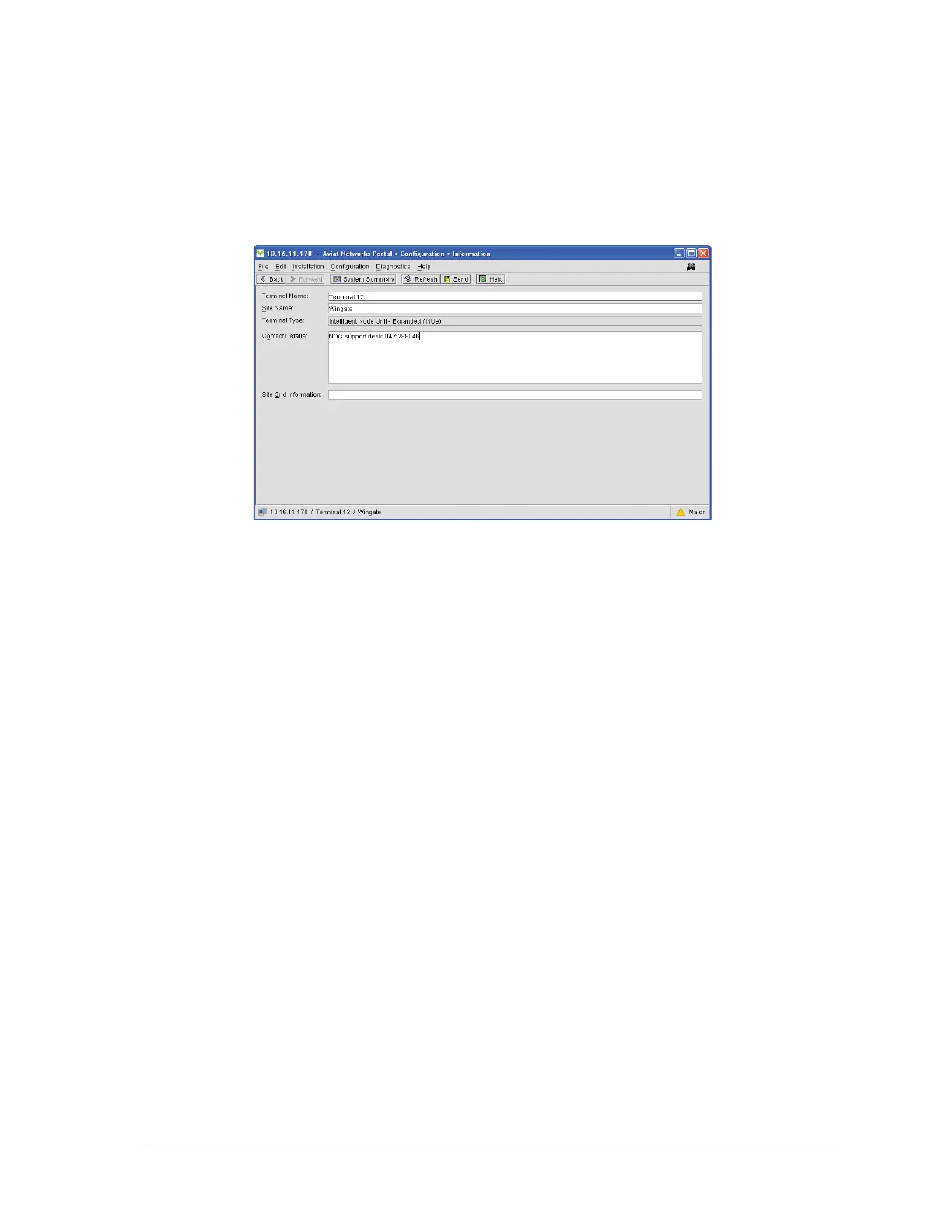

Figure 4-6. Information Screen
Terminal name and site name are displayed in the status bar on all Portal screens.
• The terminal name is also displayed in the module name-line for the IDU.
• The terminal name can also be changed in the System Summary screen by
right-clicking in the IDU module and selecting the Rename option.
Plug-ins
While IDUs such as the IDUspe do not have removable modules (plug-ins) they are
treated the same way as the directly equivalent plug-ins in Eclipse nodes (INU/
INUe).
Plug-Ins Screens
The Plug-in screen opens to the Link module.
Click on Select New Module to display a submenu for other plug-ins. Figure 4-7 on
page 4-37 shows an example Link selection. Although the IDU module can be
selected, it is not Portal configurable.
Refer to:
• Link Configuration on page 36.
• DAC/Tributary Configuration on page 45 for Ethernet and E1 trib interfaces.
