260-668080-001 Rev 002 March 2013 3
Eclipse Edge User Manual
• Support for two ODUs:
• One ODU for 1+0 link configurations
• Two ODUs for 1+1 link configurations
• Errorless receiver switching on 1+1 configurations
• Built-in layer 2 switch supports:
• Two 10/100Base-T user ports
• Port prioritization
• 802.1p and DiffServ traffic prioritization
•VLAN mode
• 1024 configurable MAC addresses
• Jumbo frames to 2000 bytes
• Flow control
•RFC 2665 performance monitoring and per port RMON
• IFG and Preamble stripping and re-insertion
• Ultra low latency
• MEF 9 compliance
• 16xE1 tribs on individual RJ-45 connectors
• 120 ohm balanced or 75 ohm unbalanced tribs
• Wide-mouth +/- 20 to 60VDC power input
ODUspe
ODUspe is a sub-compact and power-efficient ODU with an integrated modem, and
in-built lightening surge suppressor. ODU to IDU connection is via Cat 5 cable with
power over Ethernet (PoE IEEE 802.3af).

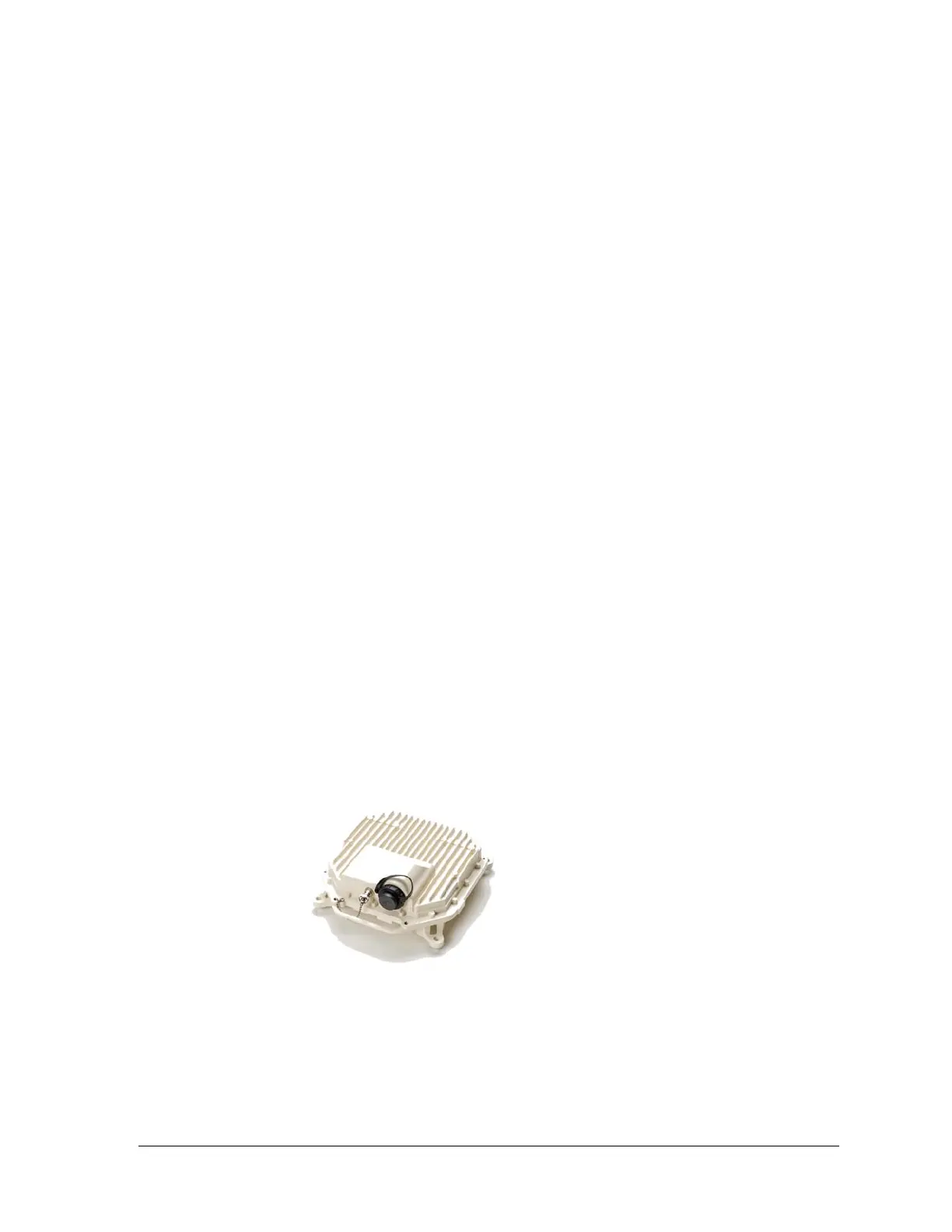

Figure 2-2. ODUspe
Construction:
• Cast aluminium construction.
• Painted finish. Passivated then polyester powder coated.
• Compression seal for base-cover weatherproofing.
• Includes a carry-handle
