260-668080-001 Rev 002 March 2013 11
Eclipse Edge User Manual
• Modes of Operation on page 11
• Transport Channel Configuration on page 12
• Basic Port Settings on page 12
• Priority Mapping on page 12
• Flow Control on page 13
• Disable Address Learning on page 13
• Maximum Frame Size on page 13
• Ethernet Diagnostics on page 13
Typical Throughputs
The following Layer 2 (RFC 2544) throughputs are typical for a 32 Mbps link
configuration:
The use of IFG and Preamble stripping and re-insertion across the link ensure there
is no appreciable throughput drop-off for smaller frame sizes.
Modes of Operation
Two operational modes are supported, Transparent and VLAN. These define the
connection fabric between the switch ports and channels.
Transparent Mode
This is the default, broadcast mode. It supports two customer connections, P1 and P2,
with bridging between and to the transport channel C1.

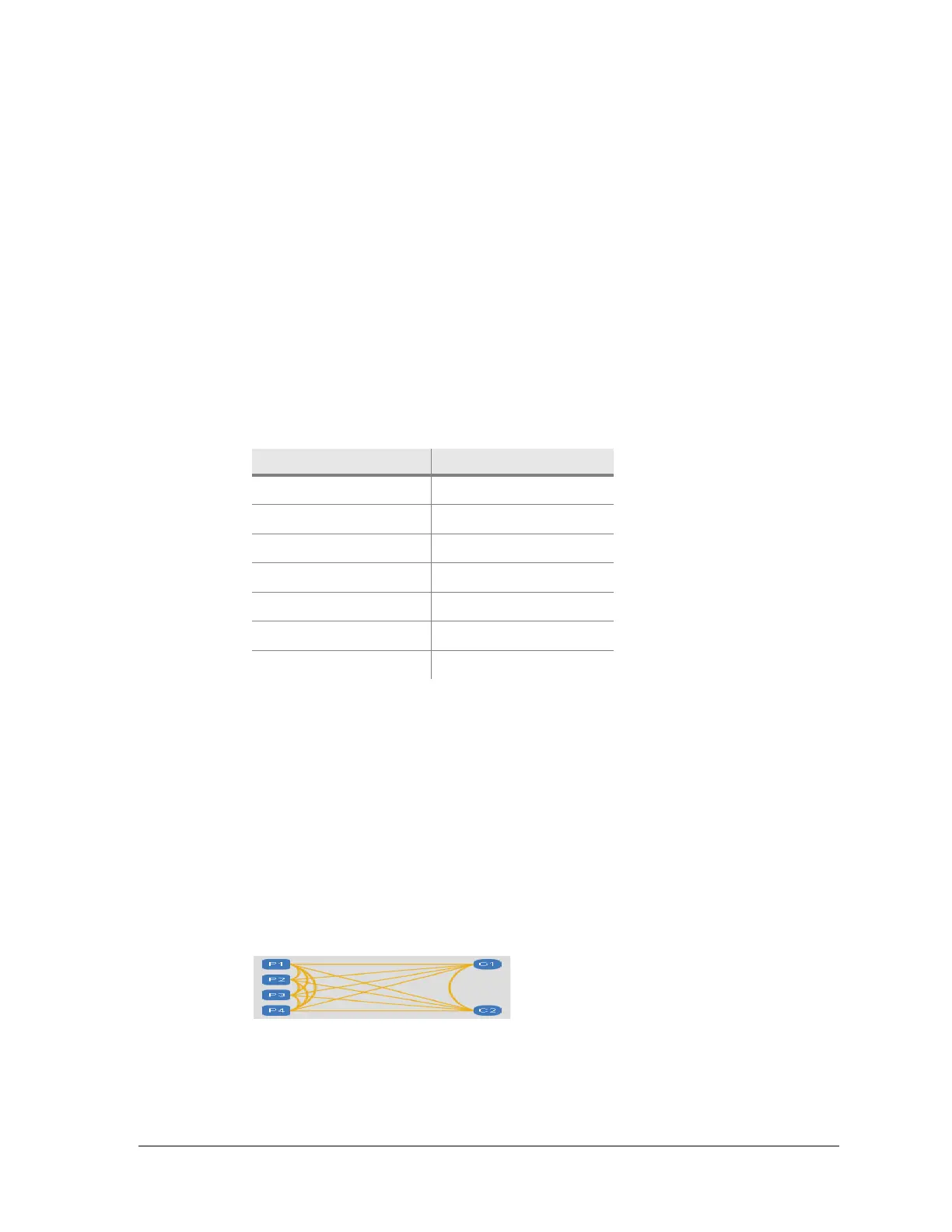

Figure 2-6. Transparent Mode Port and Channel Assignment
VLAN Mode
Frame Size bytes Throughput Mbps
64 29.6
126 30.9
256 30.3
512 32.2
1024 32.1
1280 32.2
1518 32.2
