Cut removes the selected route line but with a paste attribute (cut and past).
•
Copy provides copy-from the selected route line.
6. To commit the configuration, click Send.
Refer to Figure 4-18 on page 4-64 for an Example IDU network and its static routed
connections.
Configuring Interface IP Addressing and Routing
The Interface Addressing screen allows each interface to have its own IP address to
support route partitioning across a terminal, or to assist network planning and
management diagnostics in larger networks.
Interface IP addressing and routing options should only be used
under guidance from the network administrator.
Interface IP addressing may be used with dynamic or static routing, with the
selection enabled on a per-interface basis.
The screen opens with line entries for the Ethernet and Link ports.

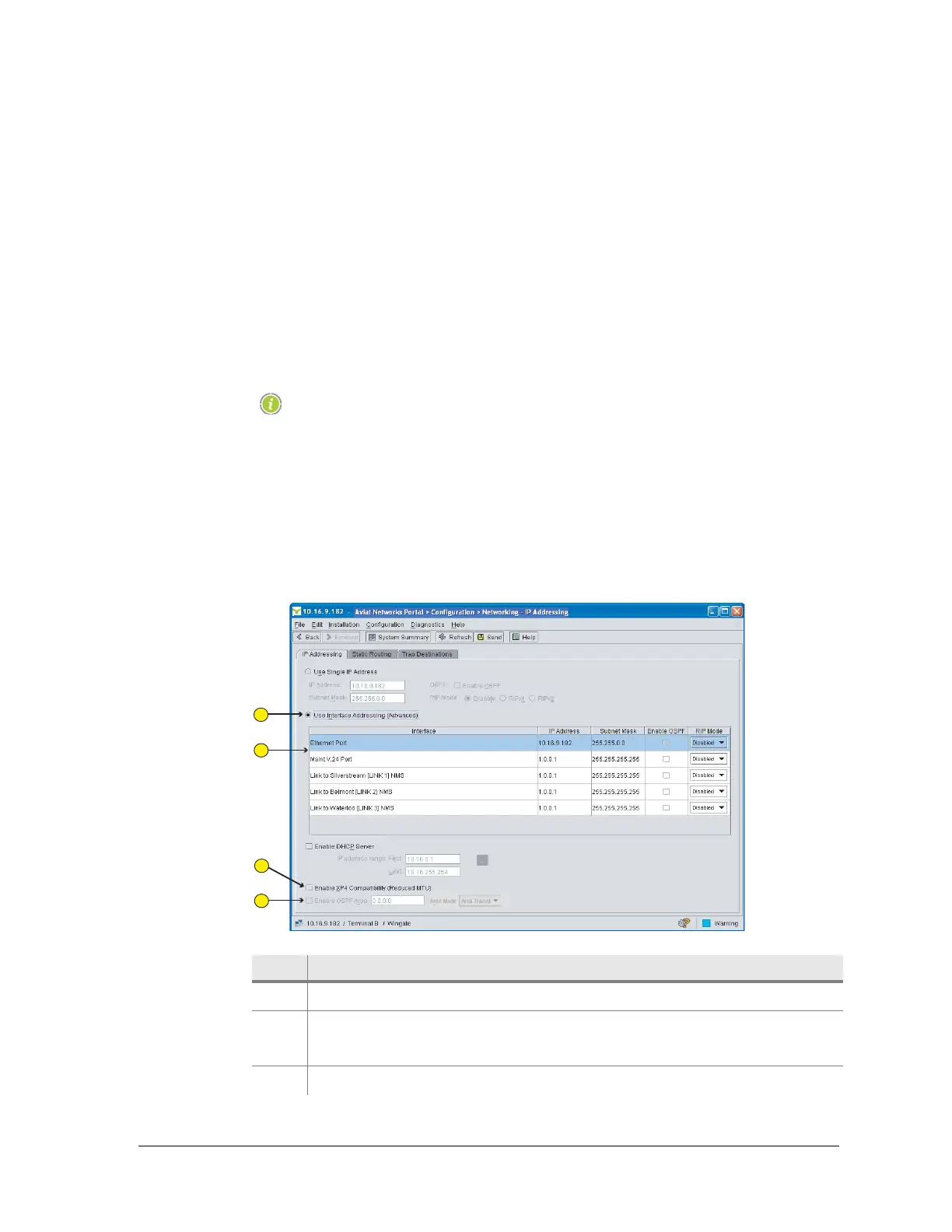

Figure 4-17 shows an example IP addressing screen for an Eclipse terminal.
Figure 4-17. Interface Addressing Screen
Item Description
1 The Interface Addressing option has been selected.
2 The Ethernet port and Link NMS address lines are displayed.
User-defined fields are provided for IP address, mask, OSPF and RIP.
3.
