NMS Connectors and Cables
NMS 10/100Base-T Connector
The NMS connector provides Ethernet access for Portal and/or ProVision. Pin
assignments represent industry-standard LAN cable assembly for a 10/100Base-T,
RJ-45 connector. Different length ‘straight’ Ethernet cables are included as optional
accessories. Eclipse Edge has two NMS ports.
NOTE:
The Ethernet port auto-resolves for straight and crossover cables
(Mdi or MdiX). Either cable type can be used.
The green LED indicates valid connectivity and the orange LED
flashes to indicate traffic activity.

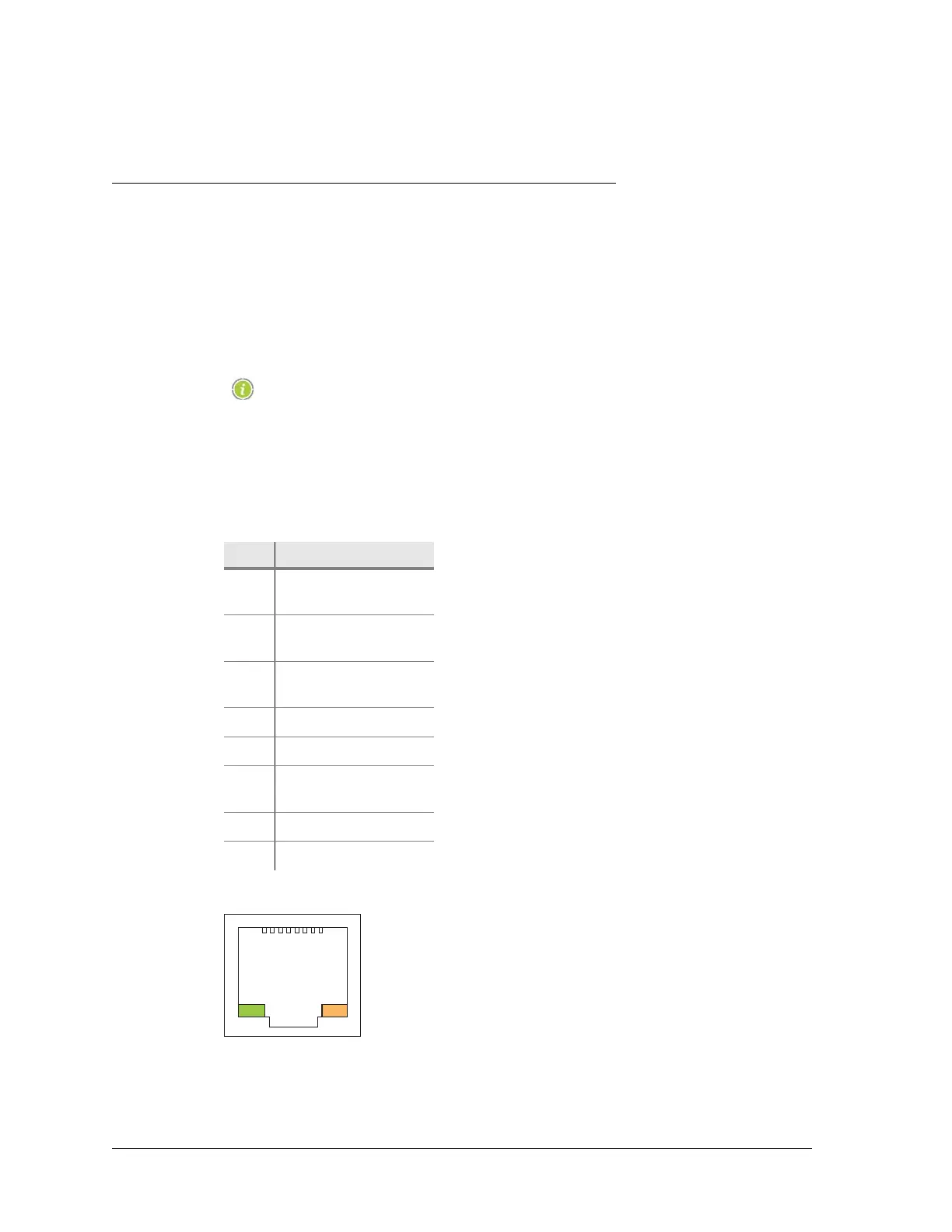

Table A-5. RJ-45 Ethernet NMS Connector Pin Assignments
Figure A-3. RJ-45 Ethernet NMS Connector(s)
Pin Function
1 Ethernet transmit
data +
2 Ethernet transmit
data -
3 Ethernet receive
data +
4Not used
5Not used
6 Ethernet receive
data -
7Not used
8Not used
1
8
Green
Orange
