Chapter 2. Eclipse Edge System Description
• 1+1 hot-standby and space diversity operation from one IDUspe.
• Power over Ethernet (PoE) ODU with off-the-shelf weatherproof Cat 5e cable &
accessories.
• Exceptionally low power consumption at 13W per ODUspe, or 23W per terminal
(ODUspe + IDUspe)
• Compact and lightweight for easy handling and installation.
Refer to:
• Edge Components on page 2
• Protected Operation for Edge on page 5
• Eclipse Edge Management on page 6
• Eclipse Edge Compatibility on page 6
• Antennas and ODUspe Mounting on page 7
• ODUspe Cable and Accessories on page 7
• IDUspe Power Supply Requirements on page 8
Edge Components
The major Eclipse Edge equipment components are the IDUspe 16x and ODUspe.
IDUspe 16x
IDUspe 16x is a 1RU rack-mounting chassis with front-panel user interfaces for
Ethernet, NxE1, and management access. It supports two ODUs, one for 1+0, or two
for 1+1 hot-standby or space diversity.

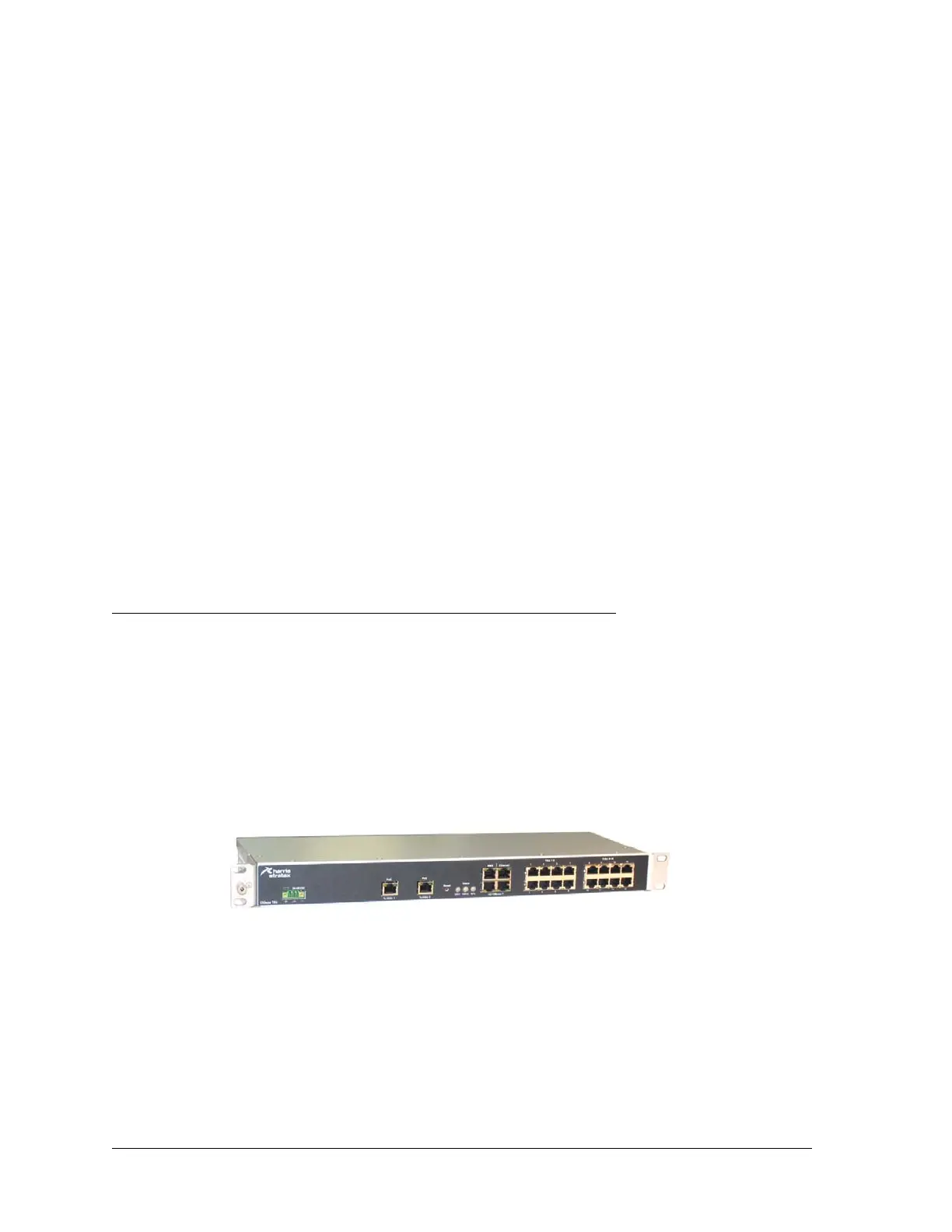

Figure 2-1. IDUspe 16x
Features include:
• Flexible capacity options:
• 4Mbit/s, 2xE1, 3.5 MHz
• 8Mbit/s, 4xE1, 7 MHz
• 16Mbit/s, 8xE1, 14 MHz
• 32Mbit/s, 16xE1, 28 MHz
• Continuous phase modulation (CPM)
