IDUspe Front Panel

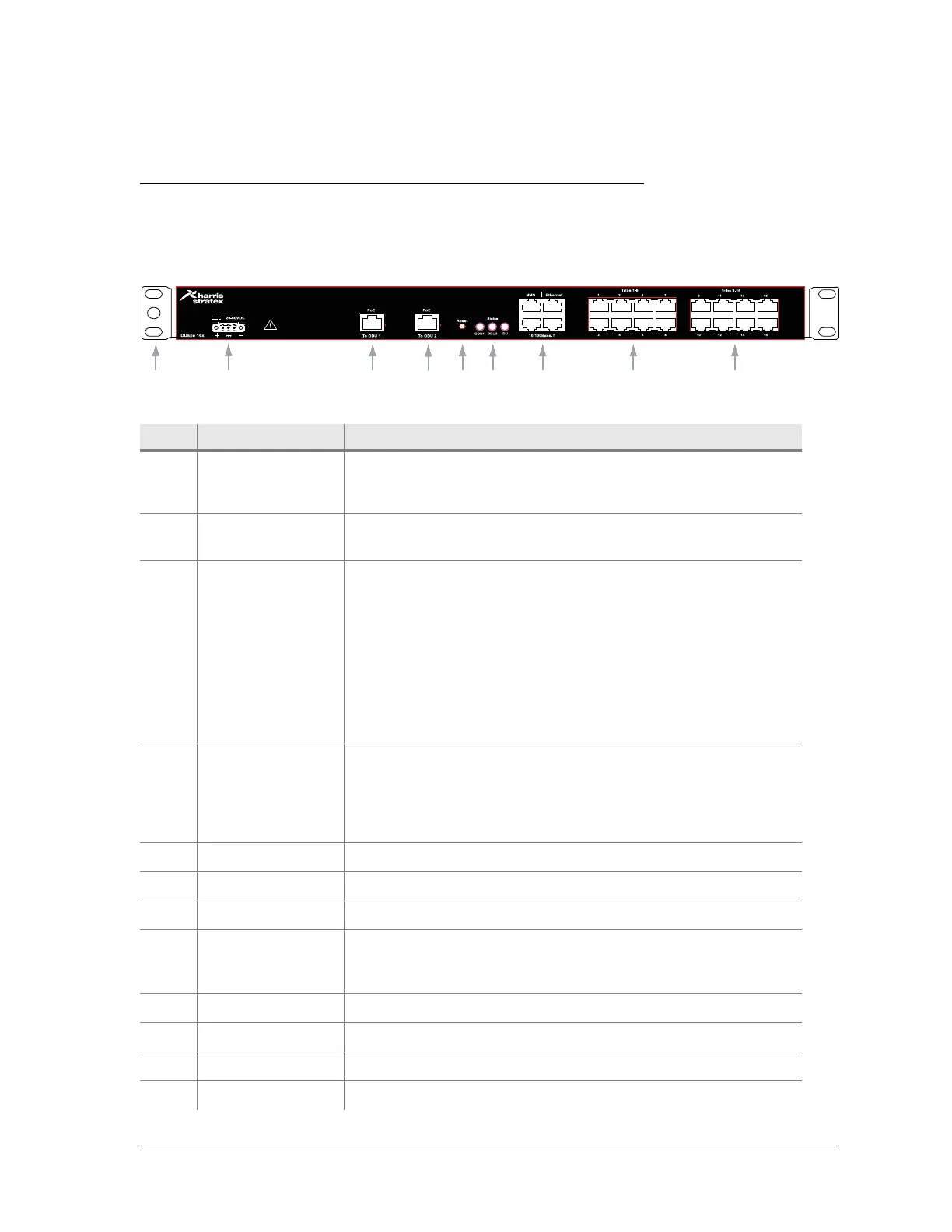

Figure 2-5 illustrates IDUspe front panel layout. Refer to Table 2-2 for a
description of the numbered components.
Figure 2-5. IDUspe Front Panel Layout
Table 2-2. Front Panel Layout Description
No Item/Label Description
1 Rack Ear and
Grounding Stud
Rack attachment bracket for the IDU. One ear has a grounding
stud for IDU grounding. The ears can be fitted either side and
provide flush-with-rack-front mounting.
2 +/- 20 to 60 Vdc 3-pin Phoenix style connector with screw fasteners. +ve and
-ve terminals are isolated from chassis ground.
3 & 4 ODU 1, ODU2 RJ-45 PoE connectors for ODU cable connection. For
non-protected links ODU 1 is used. Both connectors are used
for the dual ODU protection option.
The green connection-status LED is on for a valid ODU
connection. Off indicates no connection.
The orange activity LED flashes to indicate Ethernet traffic on
the port. The LED does not flash (is solid on) when there is no
traffic activity. (Activity LED is off when the connection status
LED is off).
5 Reset Recessed reset button enables:
• A temporary DHCP Ethernet connection. Used where the
IDUspe DHCP server function has been disabled.
• IDU reset; the IDU is reset to a factory default configuration.
6 ODUs ODU Status LEDs provide indications of:
Off ODU not ready (powering up)
Green Normal operation
Orange flashing Configuration not supported, software/
hardware incompatible, or diagnostic mode
selected, such as Tx Mute.
Red Critical alarm (traffic affecting)
IDU IDU Status LED provides indications of:
Off IDU power off
Green Normal operation
