260-668080-001 Rev 002 March 2013 47
Eclipse Edge User Manual
5. Commit the configuration by clicking
Send.
Next Step: Go to the Circuits screen to configure circuit cross-connects. Refer to
Circuits on page 53.
DAC ES Module Configuration
Eclipse Edge has two RJ-45 Ethernet traffic ports. Maximum Ethernet capacity is 32
Mbps.

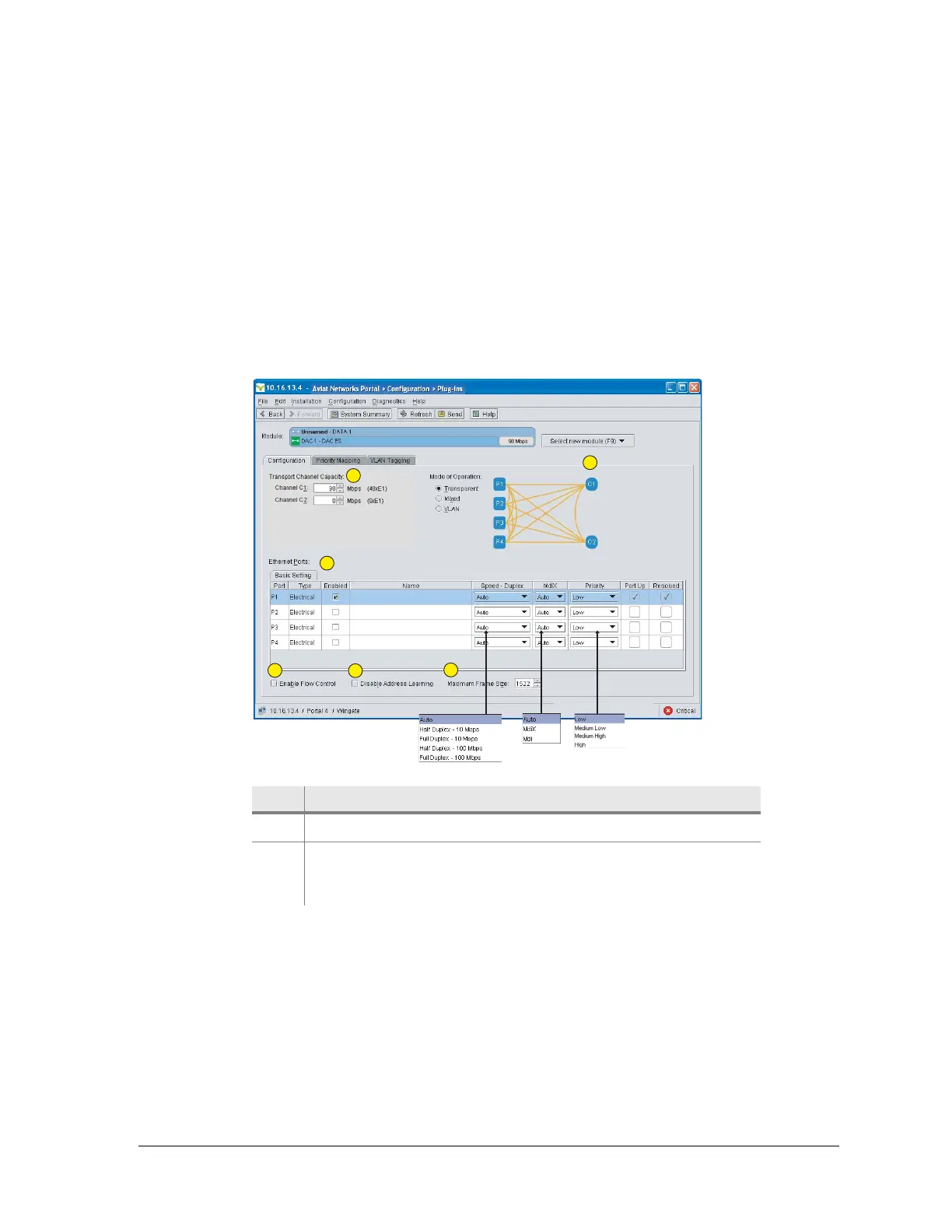

Figure 4-10 shows a typical screen, which provides a view/change capability for
operational mode, channel capacities, and port parameters.
Figure 4-10. Typical DAC ES Configuration screen
Item Description
1 Select mode of operation; Transparent or VLAN.
2 Set Transport Channel capacity. This sets the Ethernet data
capacity on the Link. Link capacity can be configured for
Ethernet only, Ethernet and NxE1, or NxE1 only.
3
4
5
6
1
2
