Terrain Display Color Coding
600-00078-001 Rev 05 -141- Avidyne EX500/EX600 MFD
11.7 Terrain Display Color Coding
Approximate Color

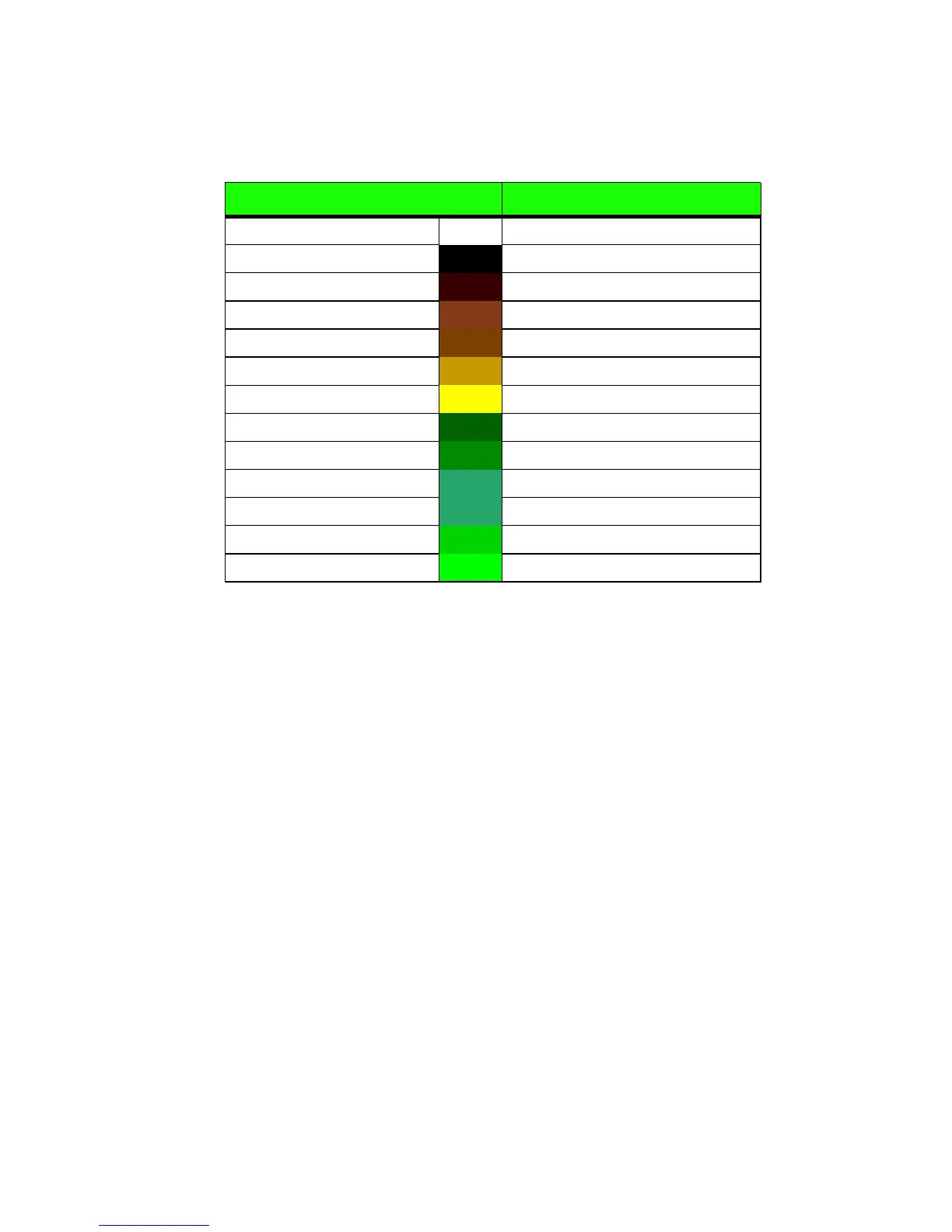

Table 11.2 Terrain Scale Colors
Elevation range (ft.)
White >=15,000 and <30,000
Darkest Brown
>=12,000 and <15,000
Darker Brown
>=9,000 and <12,000
Brown >=7,000 and <9,000
Lighter Brown
>=5,000 and <7,000
Lightest Brown
>=3,000 and <5,000
Yellow >=2,500 and <3,000
Darkest Green
>=2,000 and <2,500
Darker Green
>=1,500 and <2,000
Greens >=1,000 and <1,500
Greens
>=500 and <1,000
Lighter Green
>=0 and <500
Lightest Green <0
