TAWS Page (Optional)
Avidyne EX500/EX600 MFD -50- 600-00078-001 Rev 05
When a warning alert is triggered, the terrain or obstacle that caused
the alert displays in bright red. Also, a message describing the nature
of the alert is presented in the message bar.

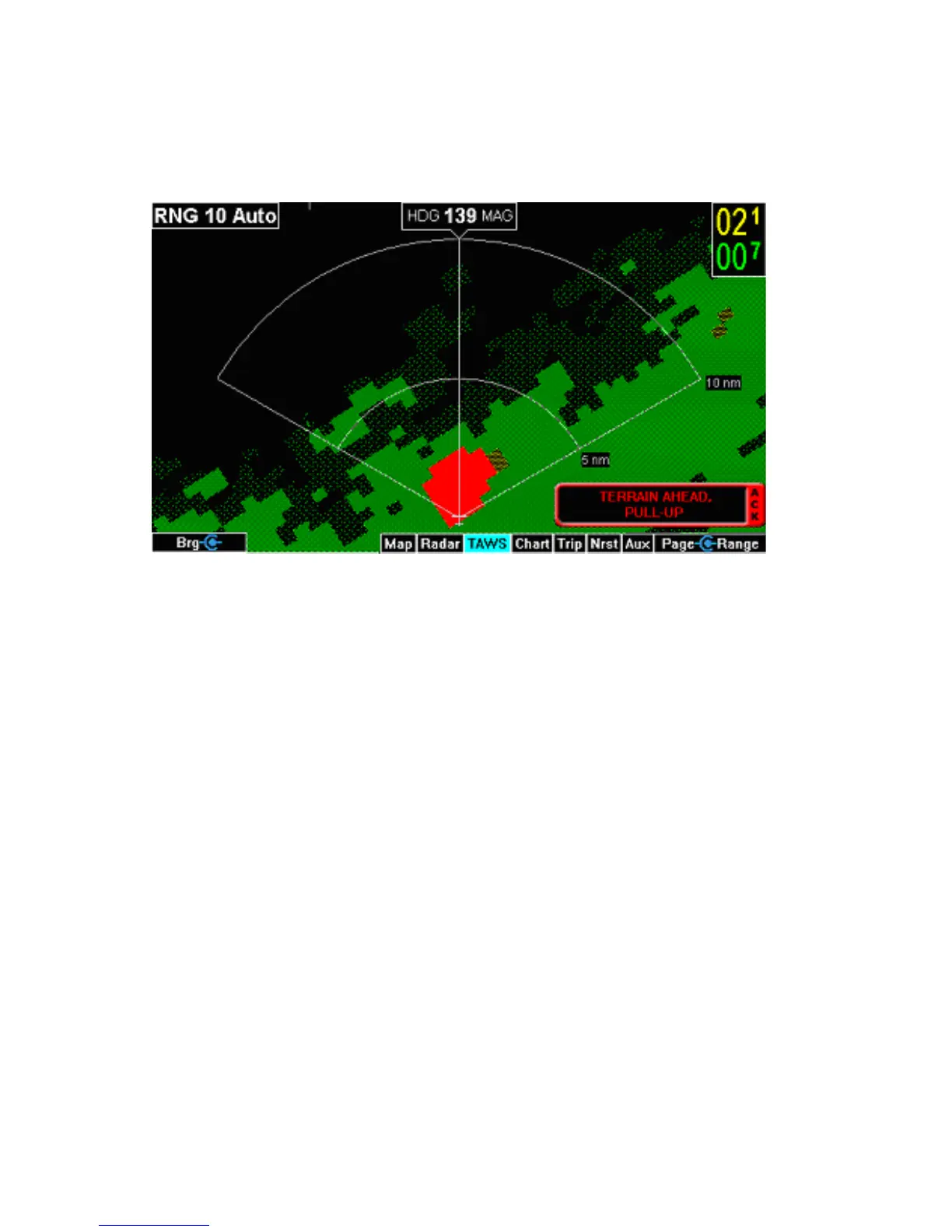

Figure 5.3 Terrain Warning Condition
When a caution or warning alert is active, the display image
surrounding the target is enlarged to allow the terrain or obstacle to
be seen more clearly. See Table 11.17 TAWS Messages on page
159 for a listing of TAWS messages.
If a terrain or obstacle alert occurs while a page other than TAWS
Display is being displayed, a terrain or obstacle alert message is
displayed in the Message Bar. When you acknowledge this message,
the EX500/EX600 automatically switches to the TAWS Display page.
The message bar is removed from the display when the EGPWS is
no longer in alert status, or if you acknowledge the message from the
TAWS page.
