Avidyne EX500/EX600 MFD -142- 600-00078-001 Rev 05
11.8 Sensor Status Block Symbols

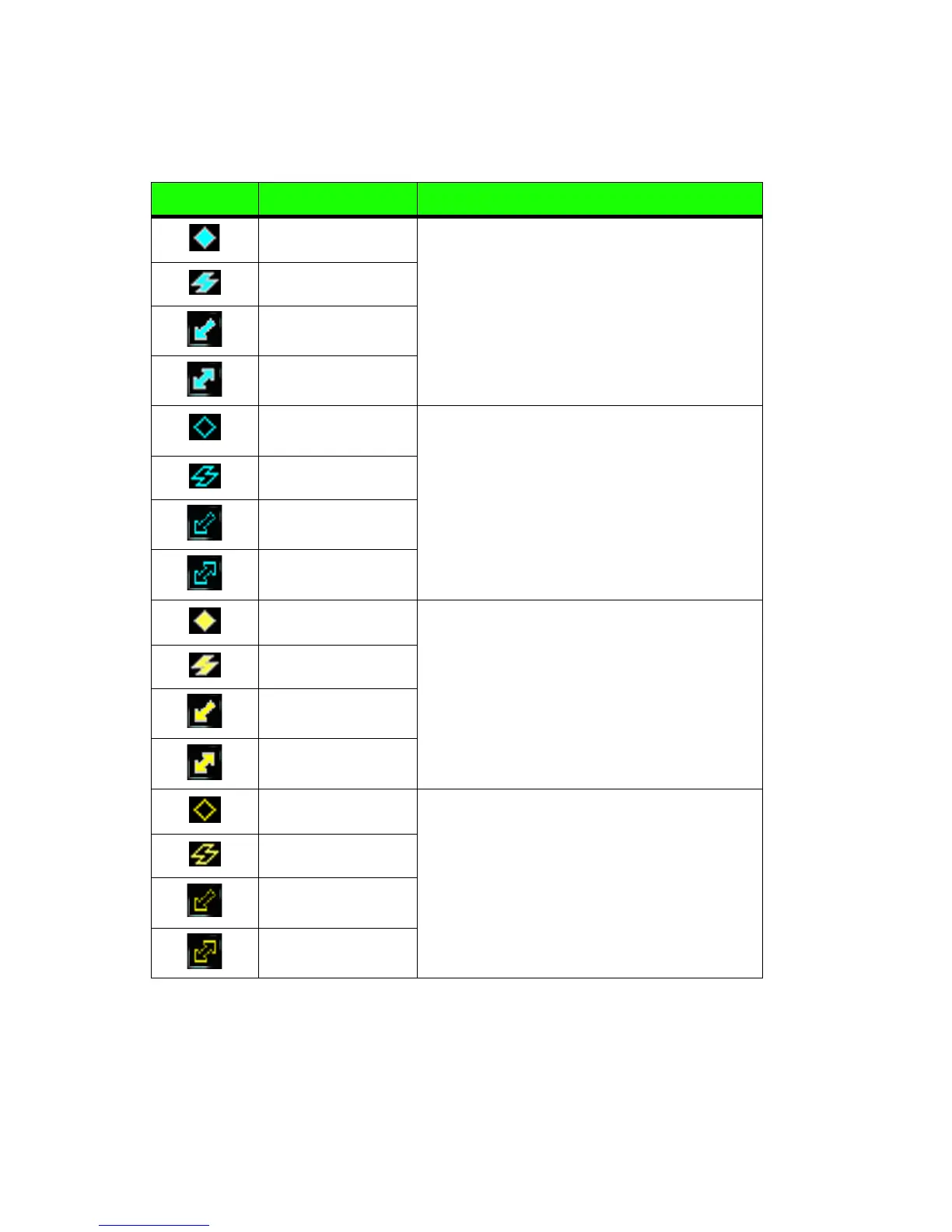

Table 11.3 Sensor Status Block Symbols
Symbol Type Status
Traffic A solid cyan symbol indicates that the
sensor system is reporting a healthy
status and is being displayed in the mode
listed in the sensor status block.
Lightning
Broadcast Datalink
Weather Overlay
2-Way Datalink
Weather Overlay
Traffic A hollow cyan symbol indicates that the
function is reporting a healthy status, but
is turned off for display on the Map page.
Lightning
Broadcast Datalink
Weather Overlay
2-Way Datalink
Weather Overlay
Traffic A solid yellow symbol indicates that the
EX500/EX600 is unable to display data
from that particular sensor. This may be
due to a communication error, the sensor
is not healthy, or there is a configuration
problem.
Lightning
Broadcast Datalink
Weather Overlay
2-Way Datalink
Weather Overlay
Traffic A hollow yellow symbol indicates that the
function is not able to display data due to
the same reasons as above, and is turned
off from display on the map page.
Lightning
Broadcast Datalink
Weather Overlay
2-Way Datalink
Weather Overlay
