Trip Page
Avidyne EX500/EX600 MFD -70- 600-00078-001 Rev 05
7.2 Trip Page Information

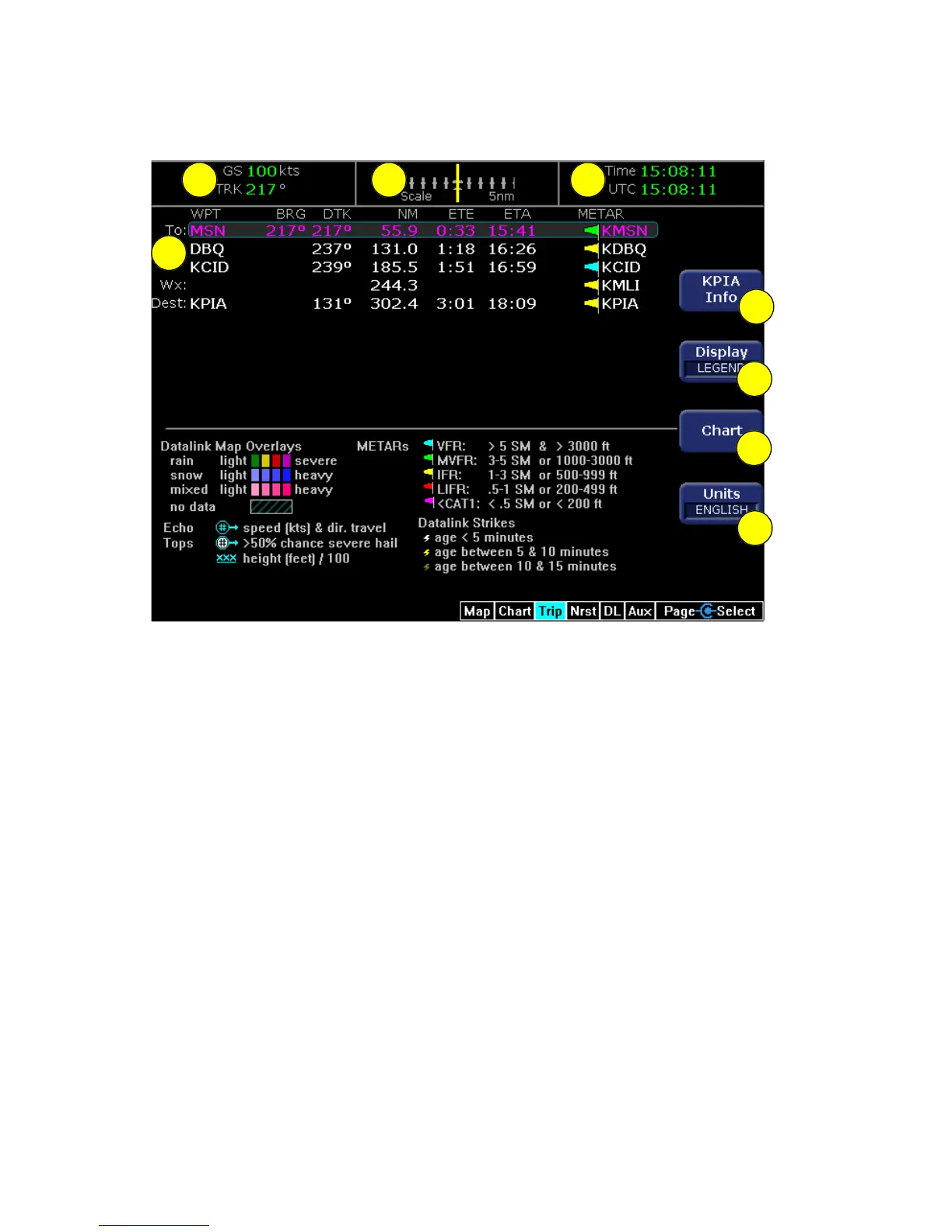

Figure 7.1 Trip Page: Upper Display items
1) Flight Plan Waypoints - Flight Plan information from your GPS.
Active waypoint is shown in magenta.
■ The following data is displayed for Flight Plan waypoints, if
available:
◆ WPT - Waypoint identifier as received from the GPS.
◆ BRG - Bearing to current waypoint.
◆ DTK - Desired track to waypoint.
◆ NM - Cumulative great circle distance of each flight plan
leg.
◆ ETE - Cumulative estimated time en route to waypoint in
H:MM format for each flight plan leg at current ground
speed.
◆ ETA - Estimated time of arrival to waypoint in HH:MM
formatted for local time.
◆ METAR - Graphical METAR and reporting point
identifier.
1
5
43
7
2
6
8
