CMax Chart Pages (Optional)
Avidyne EX500/EX600 MFD -62- 600-00078-001 Rev 05
Note: In the Runways and Departure views, the labels have been
removed (using Remove Labels).
Not all charts will have all information sections. Airport charts, for
example, might or might not have runway or departure information.
For larger airports, this information is often large enough to warrant a
separate chart, which can be selected from the list on the Selection
page.
Charts that cannot be split into smaller sections are shown as a
complete chart, with the View key not displayed, since only one View
type is available.

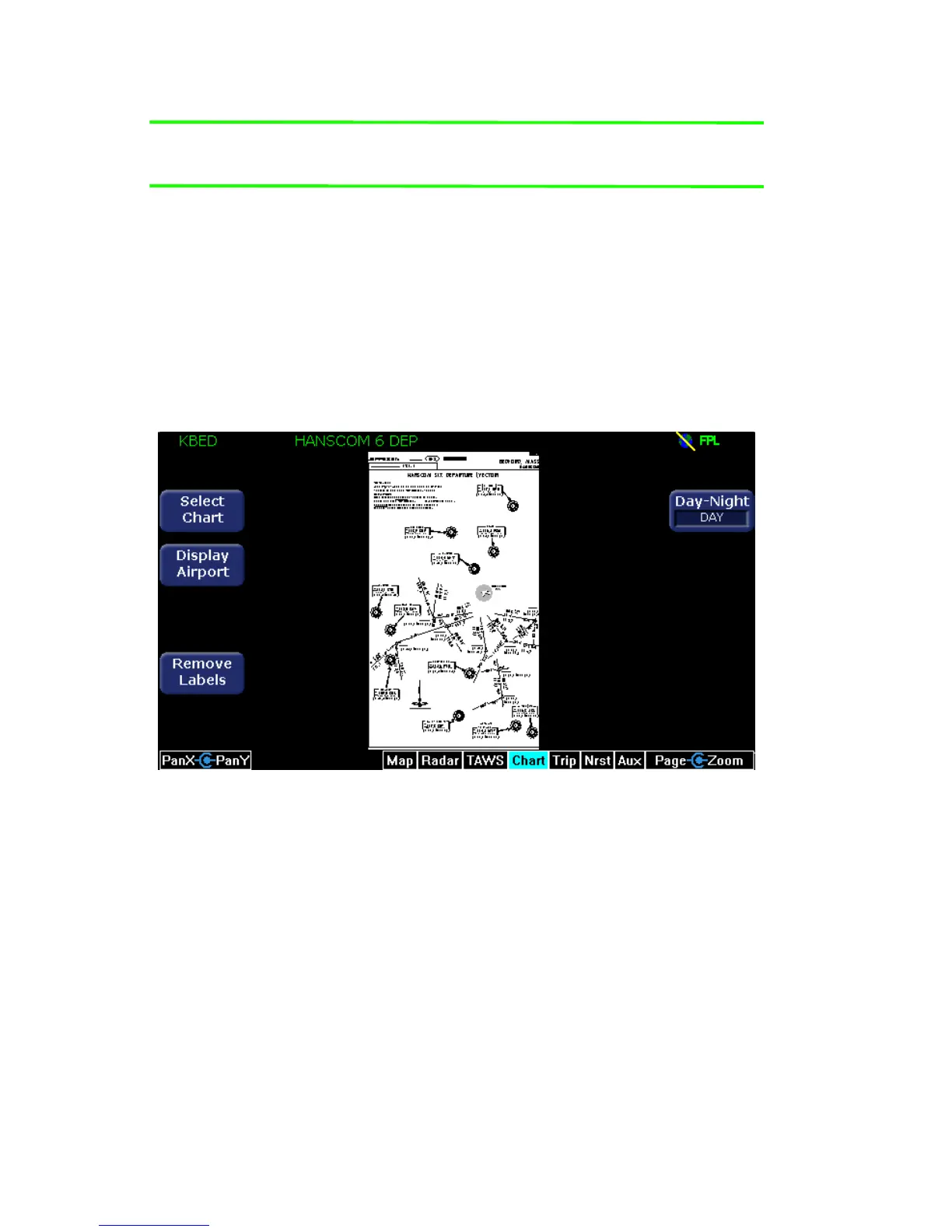

Figure 6.5 Airport Departure chart
