Trip Page Information
600-00078-001 Rev 05 -75- Avidyne EX500/EX600 MFD

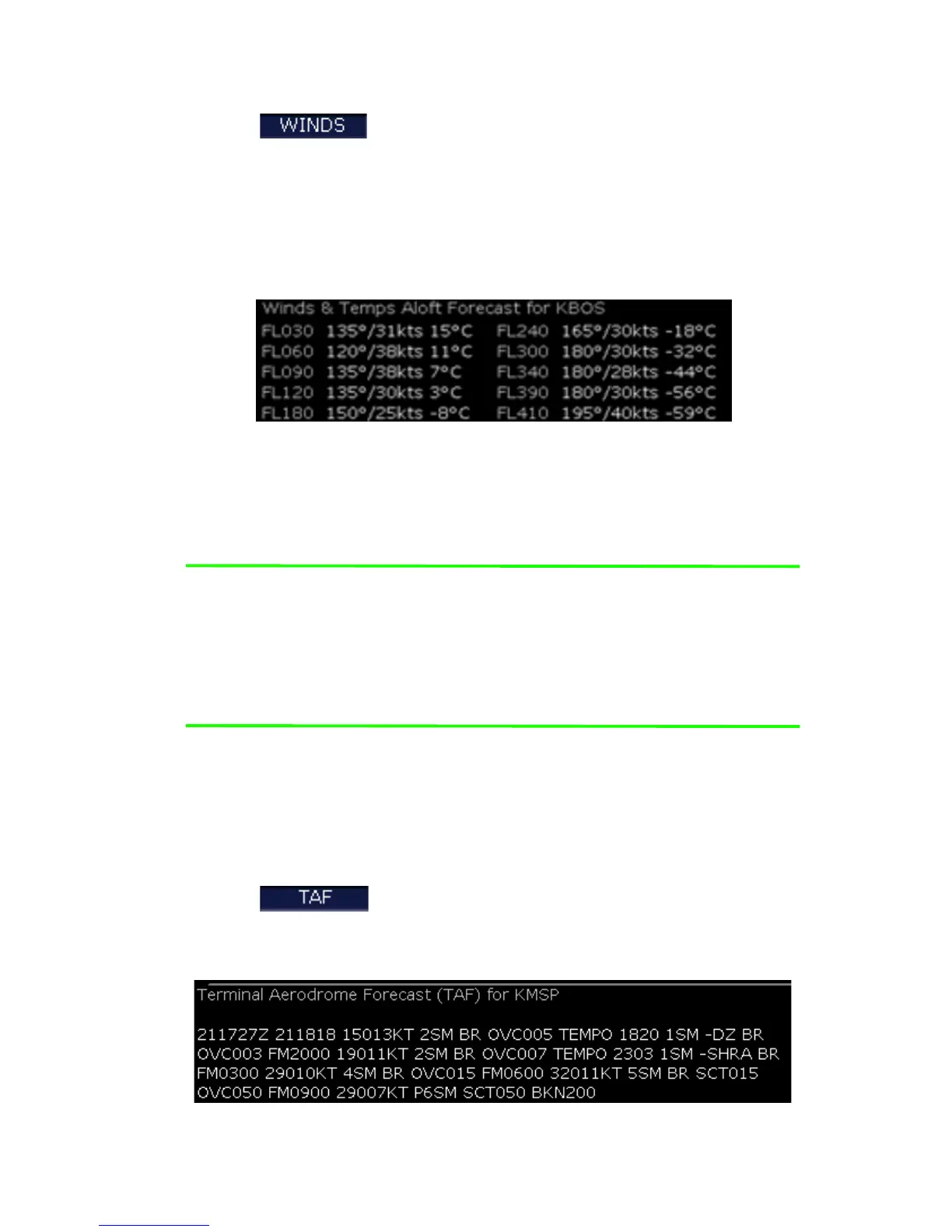

■ - Displays Winds and Temperatures Aloft and
Freezing Level data from Broadcast or 2-Way Datalink, if
available. WSI shows Winds and Temperatures Aloft. XM
shows Winds Aloft and Freezing Levels. 2-Way Datalink
shows Winds and Temperatures Aloft (Release 4.1 and
later).
The Winds Aloft direction is depicted from true (not magnetic)
North. Winds are interpolated for each Trip page waypoint
and are based on a computer forecast model that is updated
hourly.
Note: If wind data for a particular flight level has not been received,
the message, Not Available, is displayed. If the EX500/
EX600 has received wind data, but the value is undefined for
a particular level, the wind value is displayed as dashes. This
can happen for a number of reasons; for example, when
terrain is at a higher altitude than the data level.
WSI/Sirius and 2-Way Datalink winds aloft data includes the
temperature at each wind reporting altitude. XM WX data
does not display temperatures aloft. Rather, the XM Freezing
Level forecast displays the expected altitude of the freezing
level for the waypoint.
■ - The EX500/EX600 provides text Terminal
Aerodrome Forecasts (TAF) via Broadcast or 2-Way
Datalink, if available. TAFs are not decoded.
