Interactive Set-Up
AX3000 Model 80WMS - User's Manual 29
For a USB touch screen this parameter is disabled

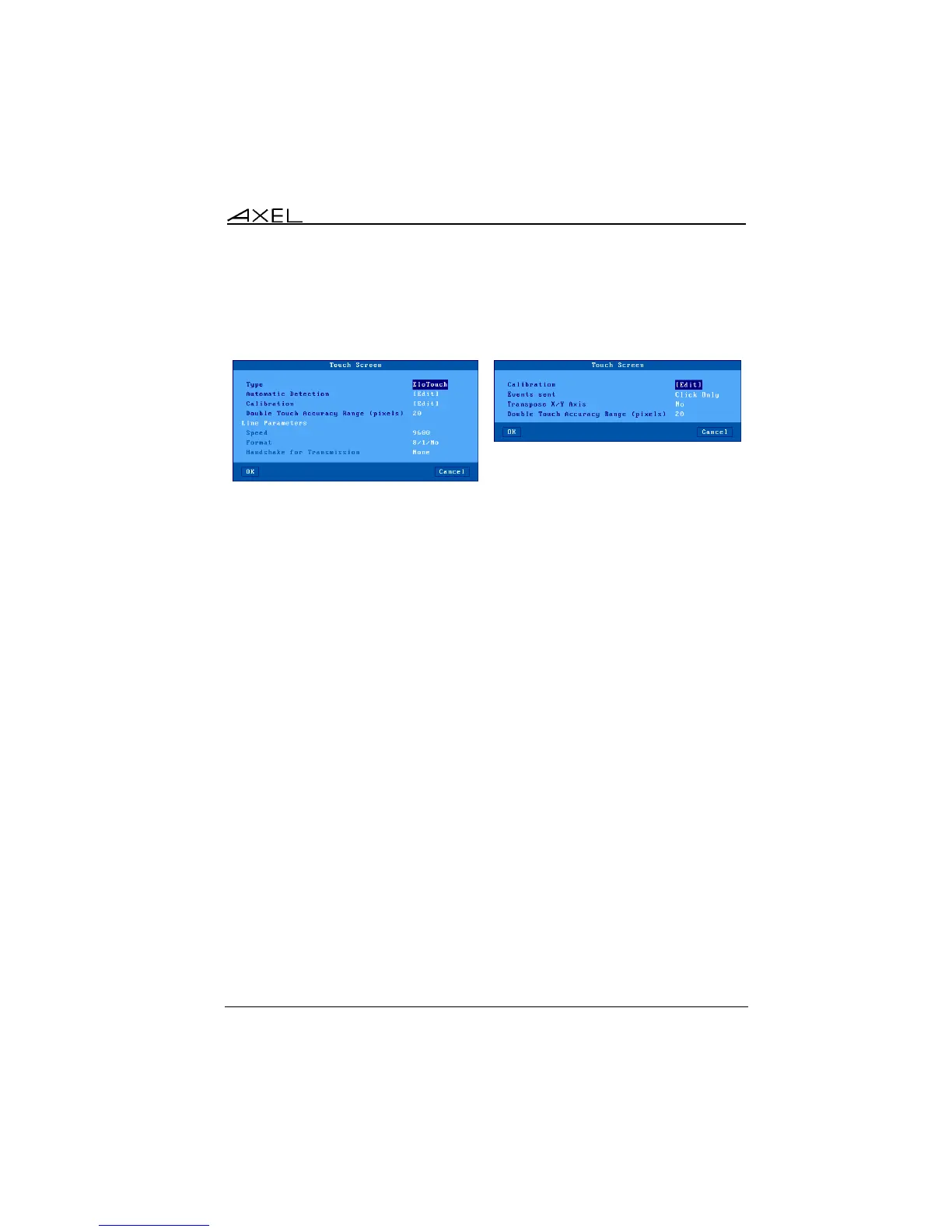

- Settings: the box depends on the touch screen type (serial or USB):
Type (serial touch screens only): select the touch screen manufacturer:
ELOTouch, MicroTouch or Liyitec.
Automatic Detection (serial touch screens only): automatically obtain the set-
up parameters from the touch-screen. To detect these settings the Axel terminal
scans a range of baud rates and data formats. When these match the touch
screen settings the serial line parameters are updated.
Calibration: display a dialog box for calibration. (Follow the instructions and
touch the screen where '*'s are displayed).
Events sent (USB touch screens only): two modes are available:
- Click Only: a 'mouse click' event is sent when the screen is touched
- All: in addition of the click event, 'mouse motion' events are sent until the
screen is untouched.
Transpose X/Y Axis (USB touch screens only): select 'yes' or 'no'.
Double Touch Accuracy Range (pixels): this parameter defines a zone size
which allows double-click to be emulated. A double-click event will be sent when
the screen is touched twice (in a period less than 0.5 seconds) and when the
two impacts are located in the same zone (less than X pixels).
Note: the touch screen functions properly only after the calibration has been
performed.
After calibration touch screen events are automatically remapped to 'left click'
