Interactive Set-Up
AX3000 Model 80WMS - User's Manual 61
3.5.4 - 'rtty' Service
The rtty service allows the terminal printer to be accessed as a network printer.
A network printer requires two parameters:
- The AX3000’s IP address,
- A TCP port number.
a) Setting-up the Terminal
To set the rtty service on the port, enter the following parameters in the
[Configuration]-[Ports]-[xxx] dialog box:
- Service: select rtty.

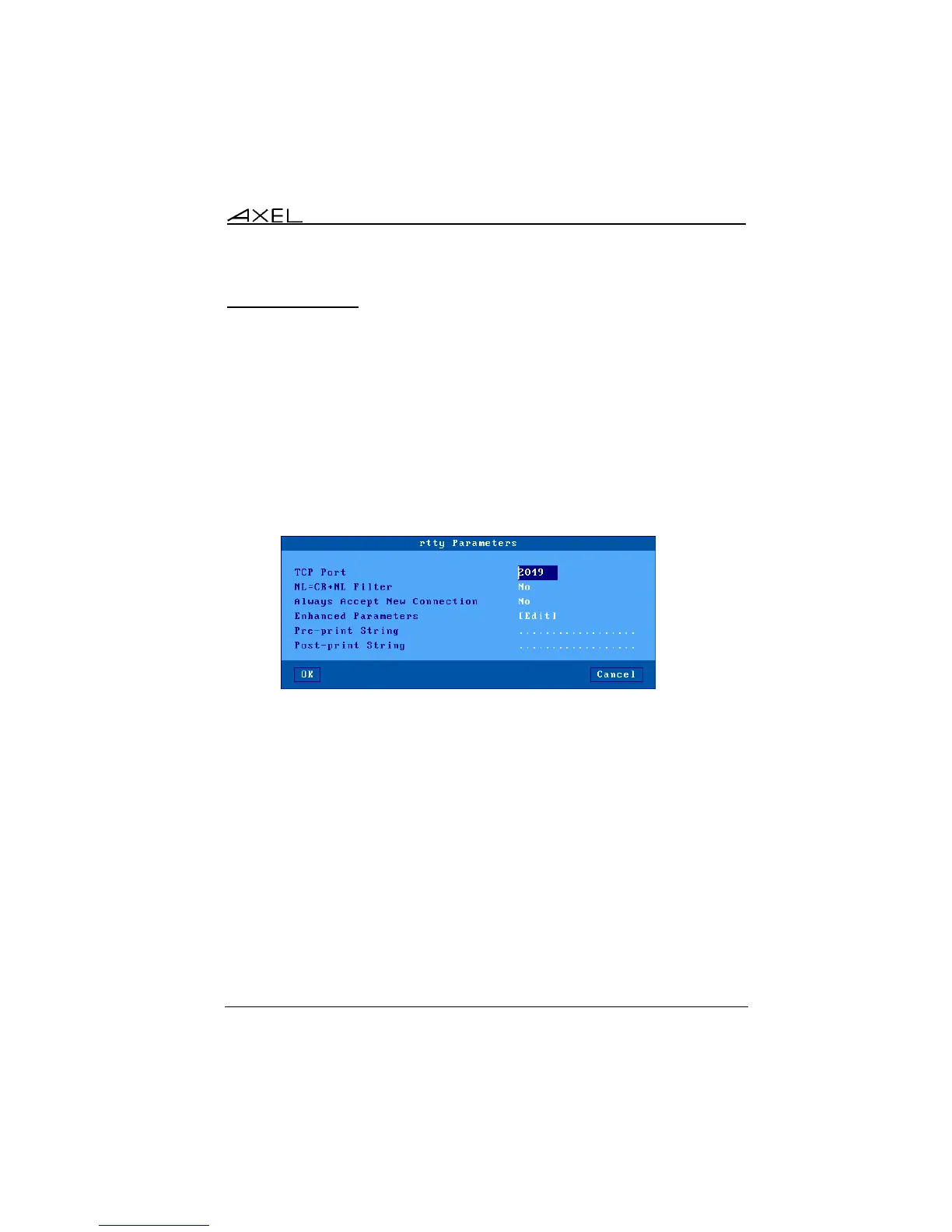

- Parameters: the following box is displayed:
- Port TCP: listening port. Usually 9100.
- NL=CR+NL Filter: set to 'No'
- Always Accept New Connection: set the AX3000 behavior when an
rtty connection is already established and a second connection rtty is
received.
- Enhanced parameters: see Appendix A.6.3.
- Pre-print String: character string sent before the printing.
- Post-print String: character string sent after an the printing (for
example "\0C" is a form feed)
b) Setting-Up the MultiPoint Server
On the MultiPoint side, a printer must be added. This printer type is 'local' and
it's attached to "TCP/IP Standard" port with the RAW protocol. The two needed
parameters are the terminal IP address and the terminal TCP port.
