Interactive Set-Up
AX3000 Model 80WMS - User's Manual 33
class to be selected for the USB Port Redirection feature. See next page.
The "When the session starts" and "While the session running" options are
described in Chapter 4.3.5.
Note: enable USB Port Redirection option in the MultiPoint session profile.

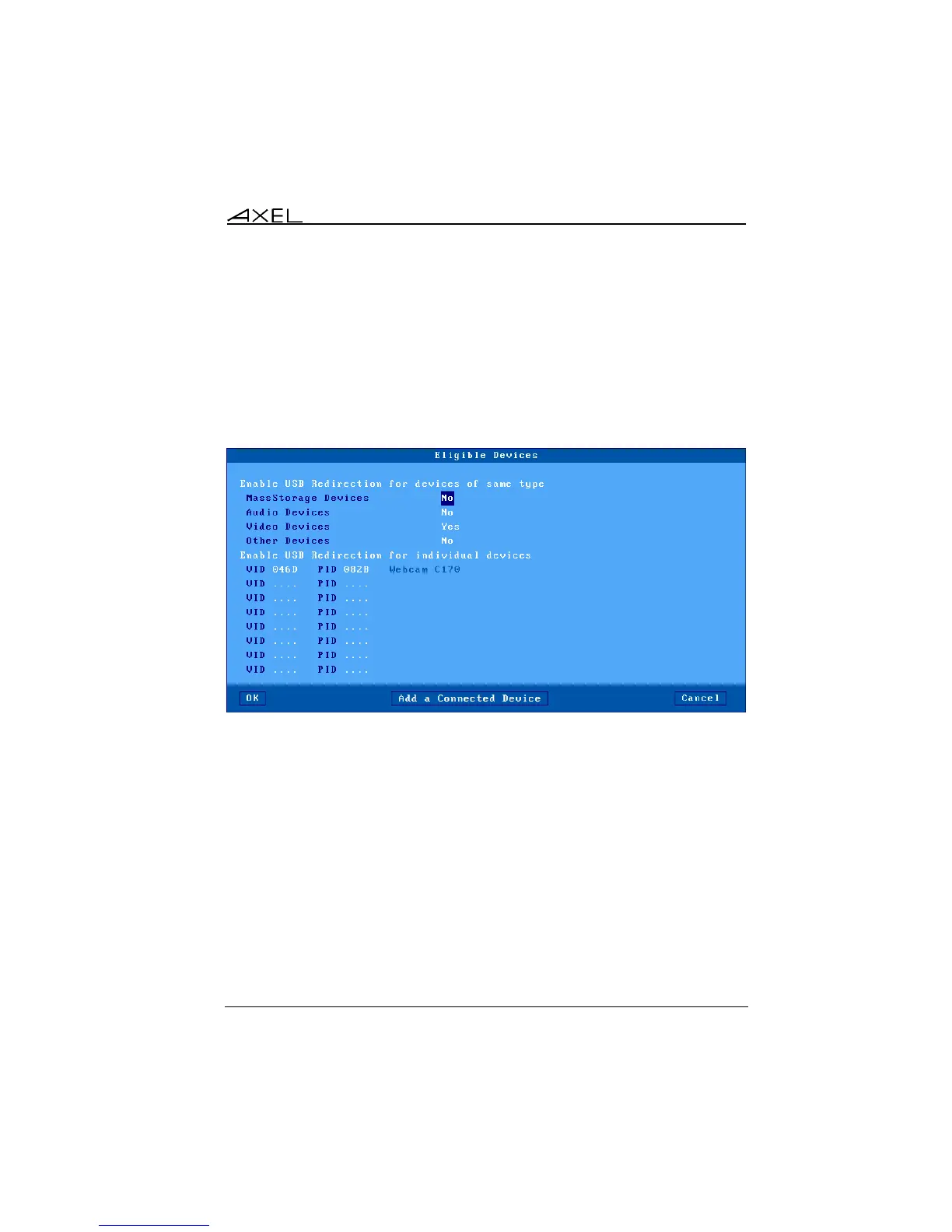

Dialog box to select eligible USB devices:
A set of USB devices can be selected by their types:
- Mass Storage devices (memory sticks, hard drives, CD/DVD reader…)
- Audio devices
- Video devices (webcam)
- Other devices (not a mass storage, an audio or a video device. For
example a scanner)
Alternatively a USB device can be selected by its identifier: Vendor ID and
Product ID. These values can be manually entered or automatically obtained
from a device currently connected by clicking the [Add a Connected Device]
button.
Note: if a 'Product ID' value is 0, all the products of the associated 'Vendor ID'
value will be eligible.
