Interactive Set-Up
AX3000 Model 80WMS - User's Manual 59

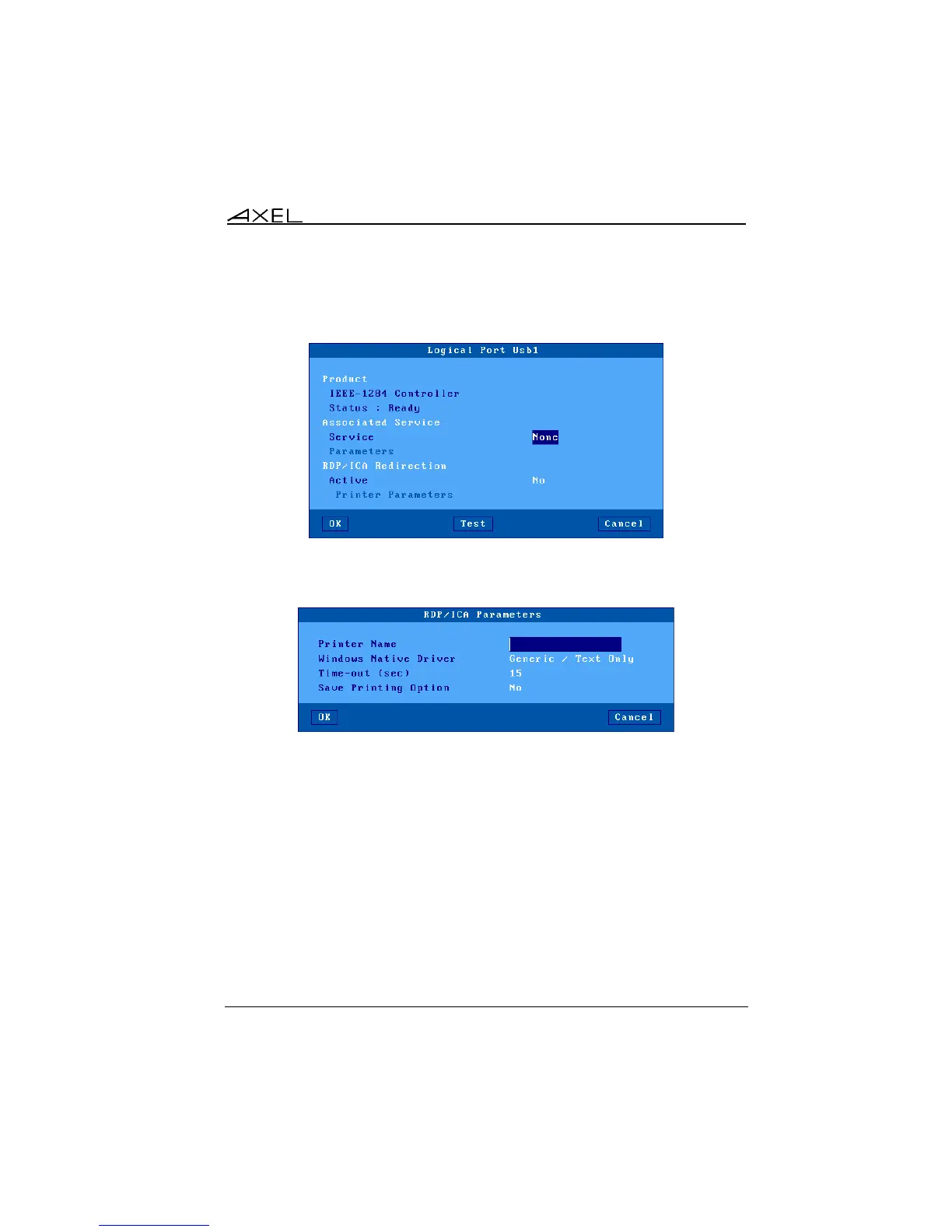

Select the dialog box of the 'Connection port' (menu [Configuration]-[Ports]-
[xxx]). For example, the Usb1 Logical Port:
Set the 'Active' parameter to 'As Printer'. Then select 'Printer Parameters'. The
following box is displayed:
These parameters are:
- Printer Name: name of the Windows printer
- Windows Native Driver: printer driver name. It is ESSENTIAL that the
value entered here matches the printer driver name exactly as installed on
the server. If the match is not exact Windows will not be able to connect
the printer to the driver and the printer will not be added to the Windows
spooler.
- Time-out (sec): in event of a printer error (no paper, off-line, etc.), this is
the delay before the terminal reports the error to Windows.
- Save Printing Option: when the default printer configuration is modified
(on the server side), this option allows the terminal to store this
configuration (in the AX3000 Local Store). See Chapter 3.4.7.
