Baldor Flex+DriveII Installation Manual

A-6 Accessories MN1902
L
K
J
H
G
F
ED
C
B
A
Dimensions mm (inches)
Dimension FI0014A00 FI0015A00 FI0015A01
FI0015A02
A 85 (3.35) 113.5 (4.47) 156 (6.14)
B 54 (2.13) 57.5 (2.26)
C 40 (1.57) 46.6 (1.83)
D 65 (2.56) 94 (3.70) 130.5 (5.14)
E 75 (2.95) 103 (4.06) 143 (5.63)
F 27 (1.06) 25 (0.98)
G 12 (0.47) 12.4 (0.49)
H 29.5 (1.16) 32.4 (1.28)
J 5.3 (0.21) 4.4 (0.17) 5.3 (0.21)
K 6.3 (0.25) 6 (0.24)
L 13.5 (0.53) 15.5 (0.61)

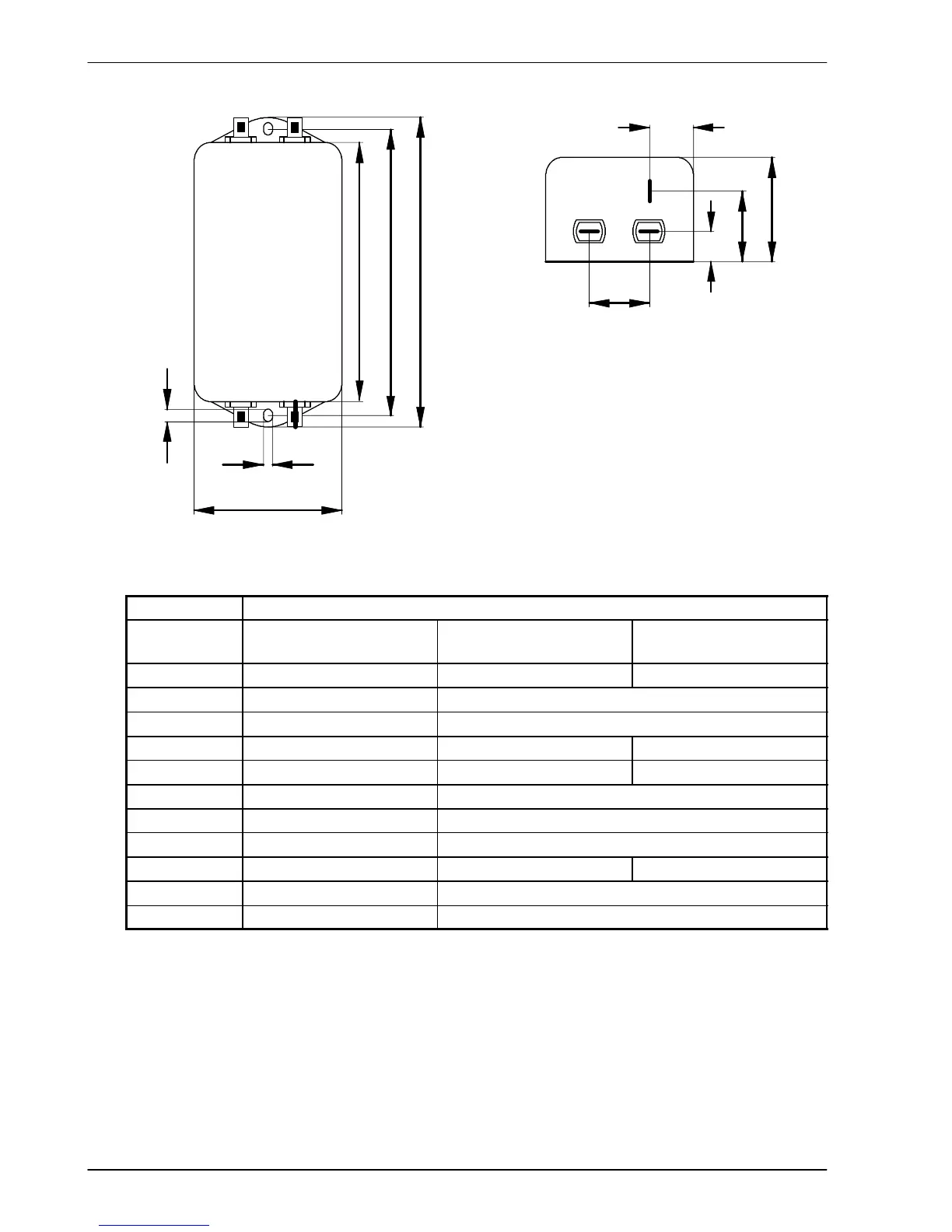

Figure 41 - Filter dimensions, types FI0014A00, FI0015A00, FI0015A01, FI0015A02
