C.1.5 Wiring of shielded (screened) cables
Remove the outer insulation
to expose the overall shield.
Clamp should provide 360°
contac t with the cable.
Flat or p-type
conduc tive
clamp
or

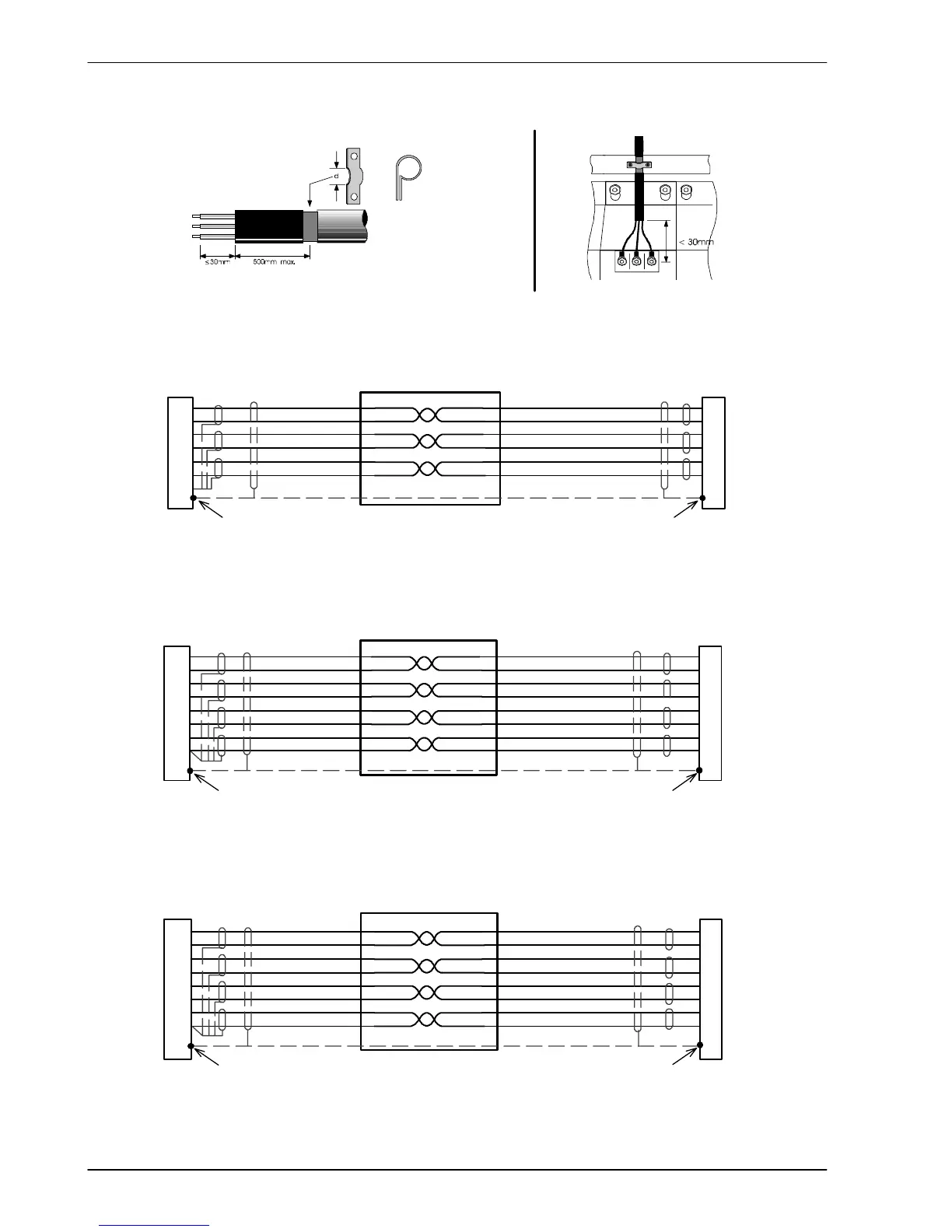

Figure 50 - Earthing/grounding cable shields
Cable
1
6
2
7
3
8
FlexDrive
II
X8
Twisted pairs
Resolver Connector
Housing
5
Connect overall shield
to connector backshell.
Connect overall shield
to connector backshell.
REF+
REF-
COS+
COS-
SIN+
SIN-
AGND
Figure 51 - Resolv e r c able grounding
1
6
2
7
3
8
11
13
FlexDrive
II
X8
Encoder Connector
Housing
Cable
Twisted pairs
Connect overall shield
to connector backshell.
Connect overall shield
to connector backshell.
CHA+
CHA-
CHB+
CHB-
CHZ+
CHZ-
+5V
DGND
Figure 52 - Encoder signal ca ble grounding
1
6
2
7
3
8
5
FlexDrive
II
X9
Auxiliary Encoder
Housing
Cable
Twisted pairs
9
Connect overall shield
to connector backshell.
Connect overall shield
to connector backshell.
CHA+
CHA-
CHB+
CHB-
CHZ+
CHZ-
+5V
DGND
Figure 53 - Auxiliary Encoder cable grounding
