3.9.6 Switches 9 and 10 - RS232/RS485 select
Switch 9 is reserved for Baldor keypad selection.
Switch 10 selects RS232 communications (Off) or RS485/RS422 (On) the next time the
FlexDrive
II
is power-cycled.
3.9.7 Factory settings
If switches 1-4 are all in the On position and switch 8 is set to Off, the FlexDrive
II
will be reset
to its preset factory settings at power on (or whenever the processor is reset by
W orkBench v5).
CAUTION: Use this function carefully - it will erase your drive setup information.
When using the SW1 DIP switches to reset the FlexDrive
II
to its factory defaults, all
parameters including the node number and serial communications baud rate will be reset.
In W orkBench v5, this means it will be necessary to rescan for the FlexDrive
II
(by starting a
new project) to enable communication. It will also be necessary to re-tune your motor and
drive.
On
1
Reapply
power.
1. 2.
On
2
On
3
On
4
FlexDrive
II
will
be reset to its
preset factory
setti ngs.
3.
Off
8
Remove
power.
4.

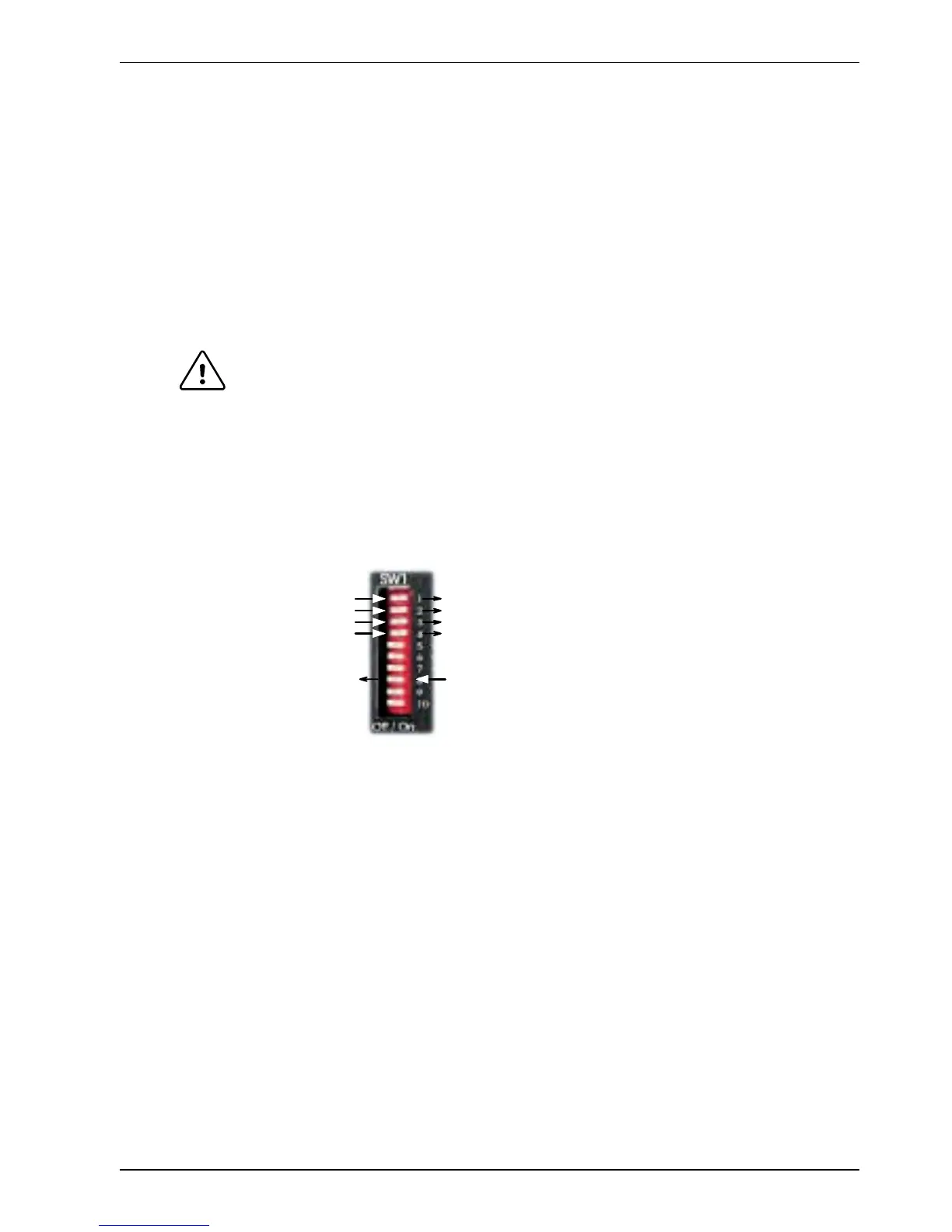

Figure 20 - Resetting the FlexDrive
II
to its factory default settings
The Mint keyword FACTORYDEFAULTS canalsobeusedtoresettheFlexDrive
II
to its factory
defaults. However , it will not reset the node number or serial communications baud rate. See
the Mint help file for details.
