Baldor Flex+DriveII Installation Manual

3-12 Basic Installation MN1902
Note: Power to single phase models may be derived by connecting two phases of an
appropriate three- phase supply (L1 and L2 for example). When supplying
AC
power in this way, the voltage between the two phases must not exceed the
rated
input voltage of the FlexDrive
II
. A two pole breaker must be used to isolate both
lines. Fuses must be fitted in both lines. Circuit breaker or fuse are not supplied.
For CE compliance, see Appendix C.
Circuit B reaker
Circuit breaker or fuse are not supplied.
For CE Compliance, see Appendix C.
L1
From
supply
Fuses
L2
L3
L1
L2
L3
From
supply
L1
L2
L3

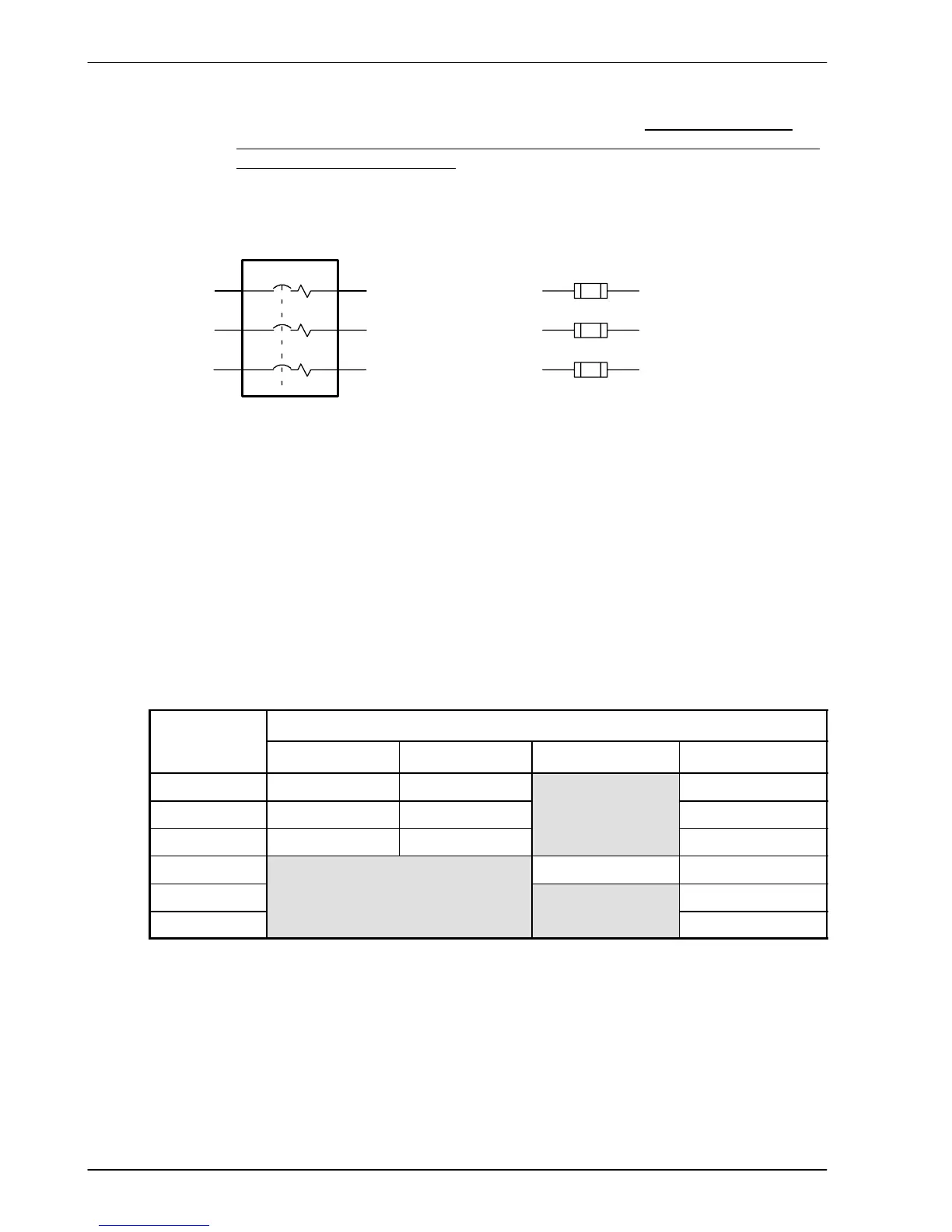

Figure 5 - Circuit breaker and fuse, three-phase (package sizes E, G, H)
Note: Metal conduit or shielded cable should be used. Connect conduits so the use of a
line reactor or RC device does not interrupt EMI/RFI shielding.
3.4.5 Power supply filters
To comply with EEC directive 89/336/EEC, an AC power filter of the appropriate type must be
connected. This can be supplied by Baldor and will ensure that the FlexDrive
II
complies with
the CE specifications for which it has been tested. Table 1 lists the appropriate filters:
FlexDrive
II
c
u
r
r
e
n
t
Input voltages
curren
t
rating
115VAC, 1Φ 230V AC, 1Φ 230V AC, 3Φ 230-460VAC, 3Φ
2.5A FI0014A00 FI0019A00 FI0018A00
5A FI0015A00 FI0015A00
FI0018A00
7.5A FI0015A01 FI0015A01* FI0018A00
15A FI0018A01 FI0018A01
20A FI0018A01
27.5A FI0018A01
Table 1 - Baldor filter part numbers
* If this model requires a customer supplied 24V control supply (catalog numbers
FDH2A07Tx-xxx3 or FPH2A07Tx-xxx3), use filter FI0015A02. For further details of power
supply filters see section A.1.6.
