3-14 Basic Installation MN1902
3.4.7 External customer supplied 24V control supply
Depending on model (catalog numbers FDHxxxxx-xxx3 and FPHxxxxx -xxx3) a 24VDC
control supply must be provided to power the control electronics. This is useful for safety
reasons where AC power needs to be removed from the power stage but the control
electronics must remain powered to retain position and I/O information. It is recommended
that a separate fused 24V supply is provided for the FlexDrive
II
. If other devices are likely to
be powered from the same 24V supply then a filter (Baldor catalog number FI0014A00) should
be installed to isolate the FlexDrive
II
from the rest of the system.
Location
Connector X1 / X1A
Part number FDHxxxxx-xxx3 or FPHxxxxx-xxx3
Nominal input
voltage
24V
Range 20.4-28.8VDC
Input current
(maximum)
1.75A continuous (4A power on surge)
T ightening torque for terminal block connections is 0.5-0.6Nm (4.4-5.3 lb-in)
Note: Connect 24V to connector X1 only if your model has this feature. Connecting 24V
to a model that does not require an external 24V supply (FDHxxxxx-xxx0 and
FPHxxxxx -xxx0) could damage the unit.
Customer supplied
24VDC (fused)
+24V
24V filter
(optional)
GND
Single-phase model
shown for illustration
purposes
STAR
POINT
Incoming safety
earth/ground (PE)
If 24V wires are
shielded,
earth/ground
outer s h ields,
using 360º
clamps c onnected
to backplane.

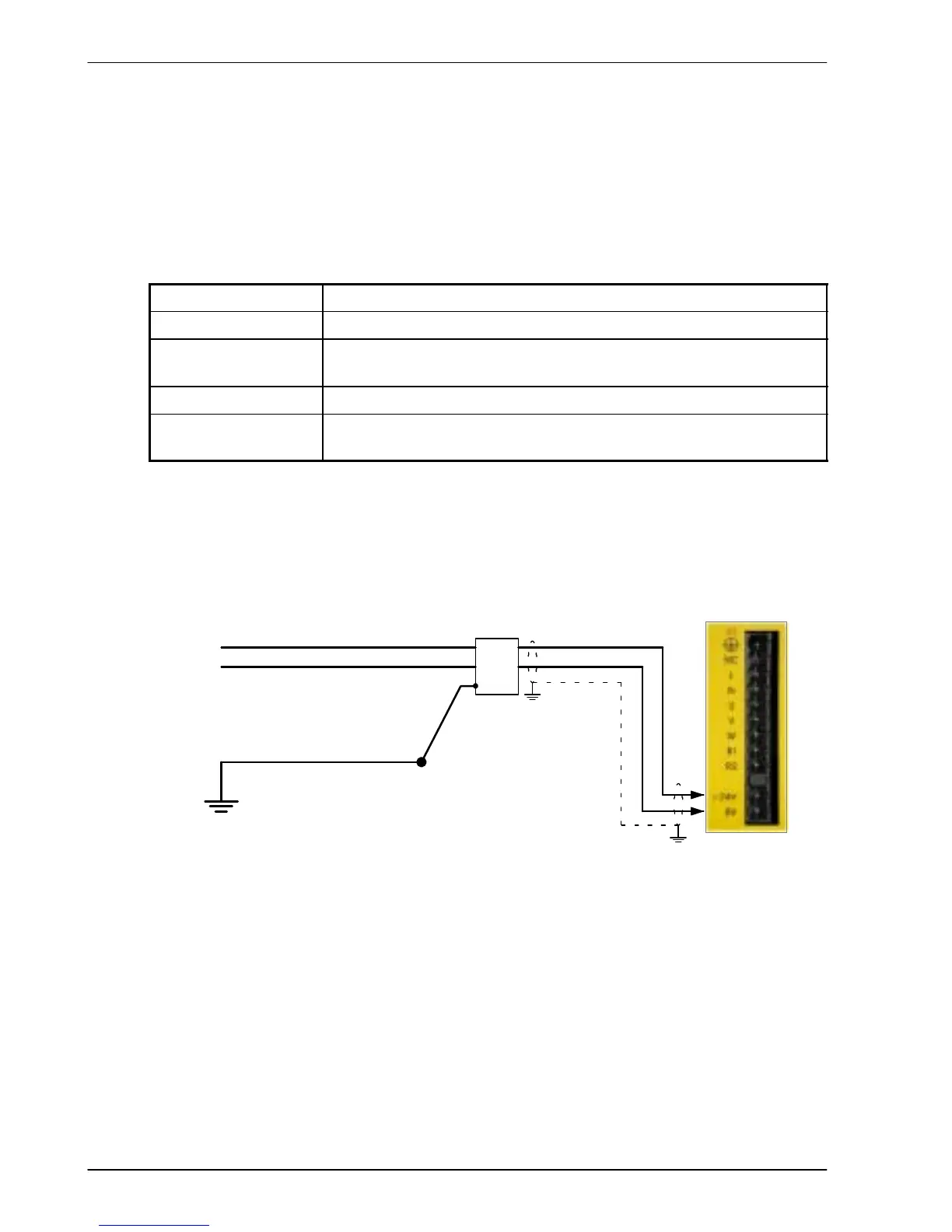

Figure 6 - Custome r s upplie d 24V supply c onnections
