3-10 Basic Installation MN1902
3.4.2 Three-phase connection to package sizes E, G, H
Location Connector X1A
(Mating connector: Phoenix POWER COMBICON PC4/..-ST- 7.62)
Part number FDH2A15.../FPH2A15... FDH4A.../FPH4A...
Nominal input
voltage
230VAC, 3Φ line to line 230- 460VAC, 3Φ line to line
Range 184- 253VAC 180- 528VAC
T ightening torque for terminal block connections is 0.5-0.6Nm (4.4-5.3 lb-in). The threaded
hole in the top of the enclosure is for protective earth/ground connections. The threaded hole
in the bottom of the enclosure (if present) may be used as an additional functional
earth/ground connection for signals on connector X3. It may also be used to attach strain relief
clamps. The holes are threaded for M4 bolts no longer than 12mm (0.47 in) in length. Longer
bolts may short circuit the electrical components inside the FlexDrive
II
.
AC
Supply
Line (L1)
Route L1, L2, L3 and
earth/ground together
in c onduit or c able
Circuit breaker or fuses.
See s ection 3.4.4
AC filter.
See section
3.4.5
Line (L2)
Line (L3)
STAR POINT
Incoming safety
earth/ground (PE)
Isol ating switch
* If filter has no
output
earth/ground
terminal, earth
wire may be
connec ted
directly to star
point.
*
If AC power wi res
are s hielded,
earth/ground
outer shield using
360º clamps
connec ted to
back plane.
FDH4A... shown
for illustration
purposes

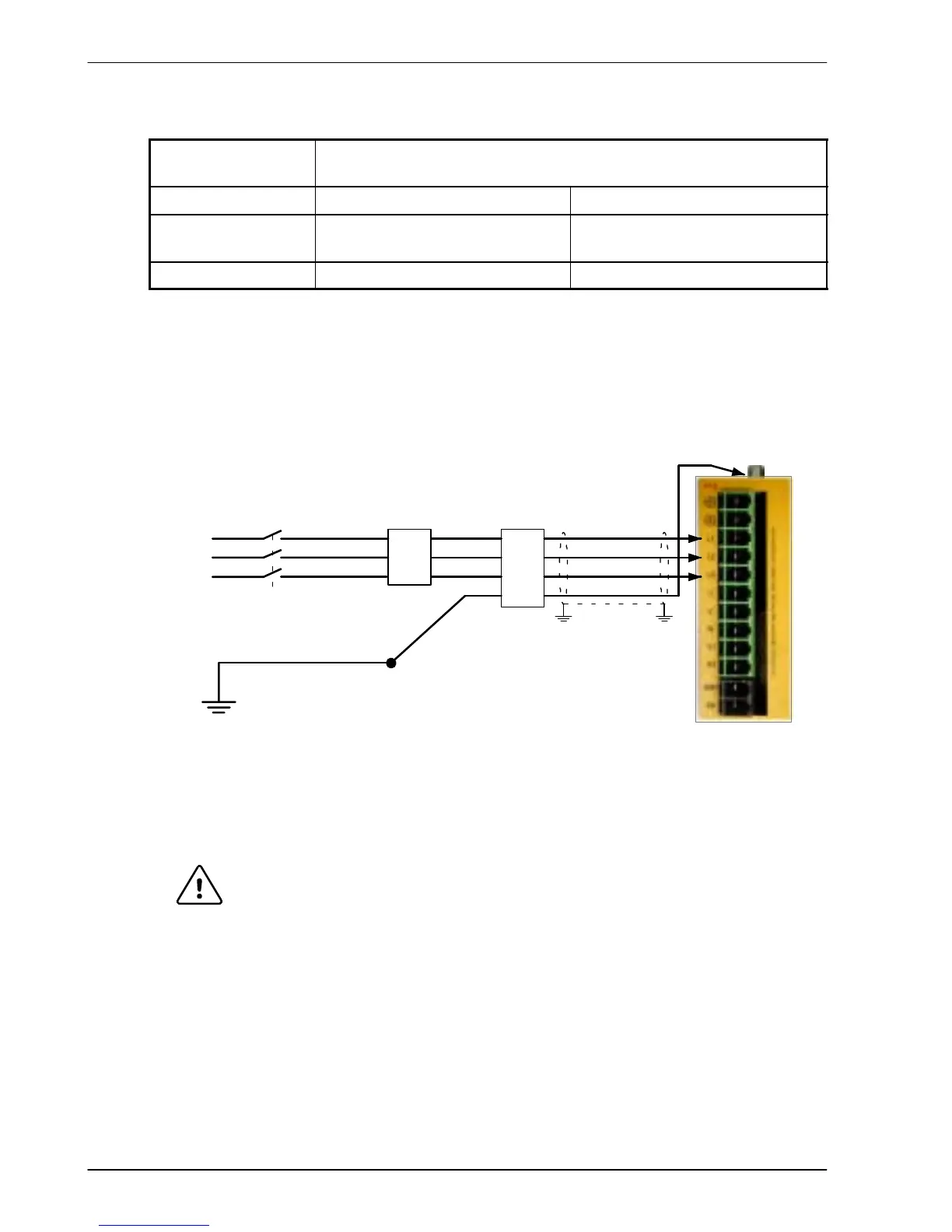

Figure 3 - Earthing/grounding for three-phase ins talla tions
WARNING: Drives with part numbers FDH2A15... or FPH2A15... have two
additional terminals on the X1 connector labeled Vcc+ and Vcc-.
The full output bus voltage is present on the these terminals so do not
make any connection to them.
Note: For CE compliance, a three- phase AC filter must be connected between the AC
power supply and the FlexDrive
II
. If local codes do not specify dif ferent
regulations, use at least the same gauge wire for earth/ground as is used for L
and N.
