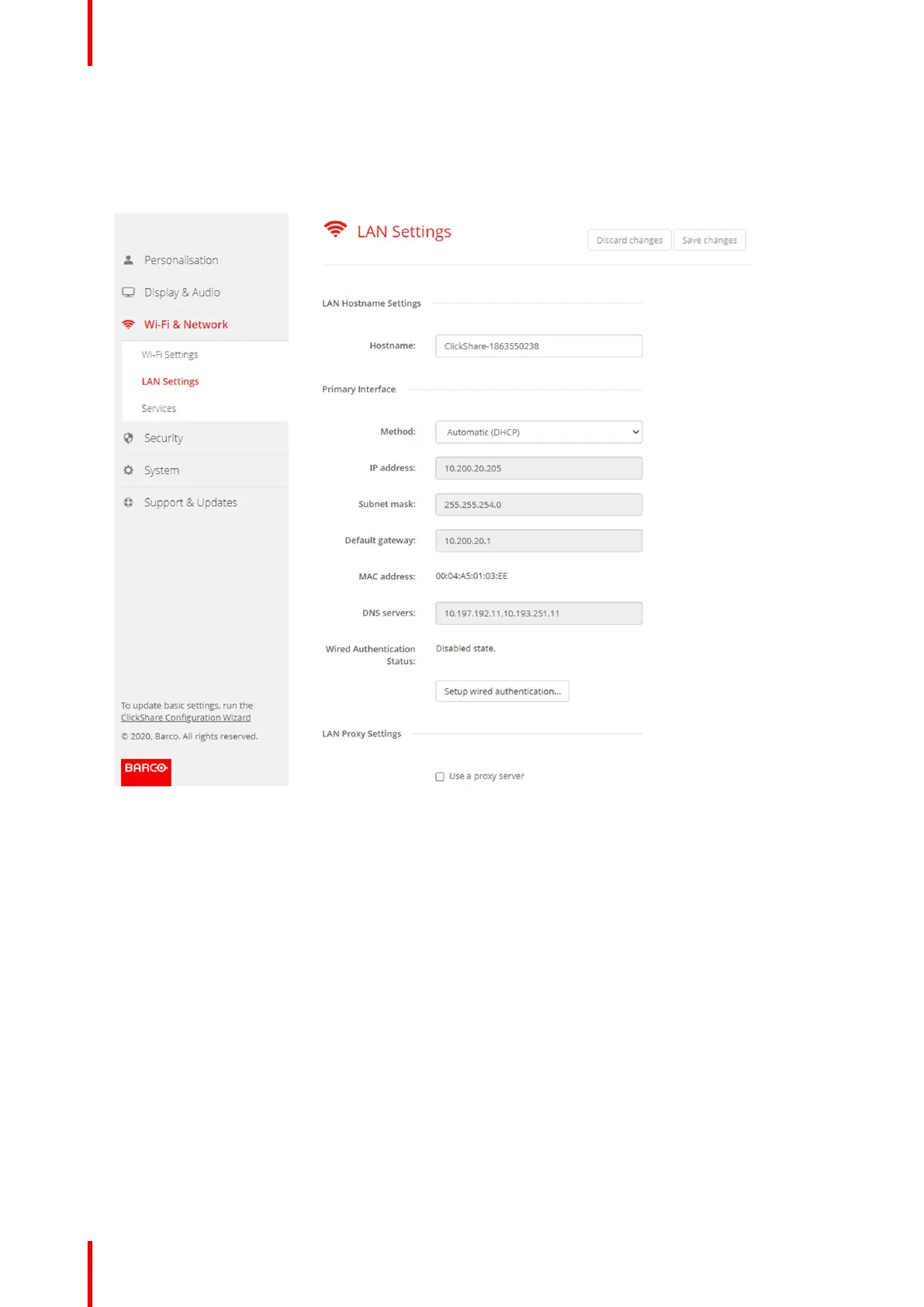

ClickShare
CX-20
100
5.17
LAN
Settings,
Wired
Authentication
How
to
setup
1.
Click
on
Setup
wired
authentication...
.
5–28
Wired
authentication
The
setup
wizard
starts.
2.
Select
the
authentication
method.
Click
on
the
drop
down
and
select
the
desired
method.
The
following
methods
are
available:
•
No
authentication:
no
authentication
mechanism
will
be
applied
to
the
wired
interface.
•
EAP-TLS
•
EAP-TTLS
•
PEAP
CX-20
Configurator
99
101
