109R5900102 /11 ClickShare CX-20
5.23 Services, SNMP
About SNMP
Simple Network Management Protocol (SNMP) is an internet standard protocol for collecting and organizing
information about managed devices on IP networks and for modifying that information to change device
behaviour. In general a SNMP management suite (running on a server) communicates with an SNMP agent
(running on the device). The SNMP agent collects and exposes device information in the form of variables
according a MIB (Management Information Base). SNMP management suites will be able to approach
ClickShare devices via SNMP protocol for requesting device information.
SNMPv3 is supported.
How to enable
1. Log in to the Configurator.
2. Click Wi-Fi & Network → Services.
3. Scroll to SNMP.

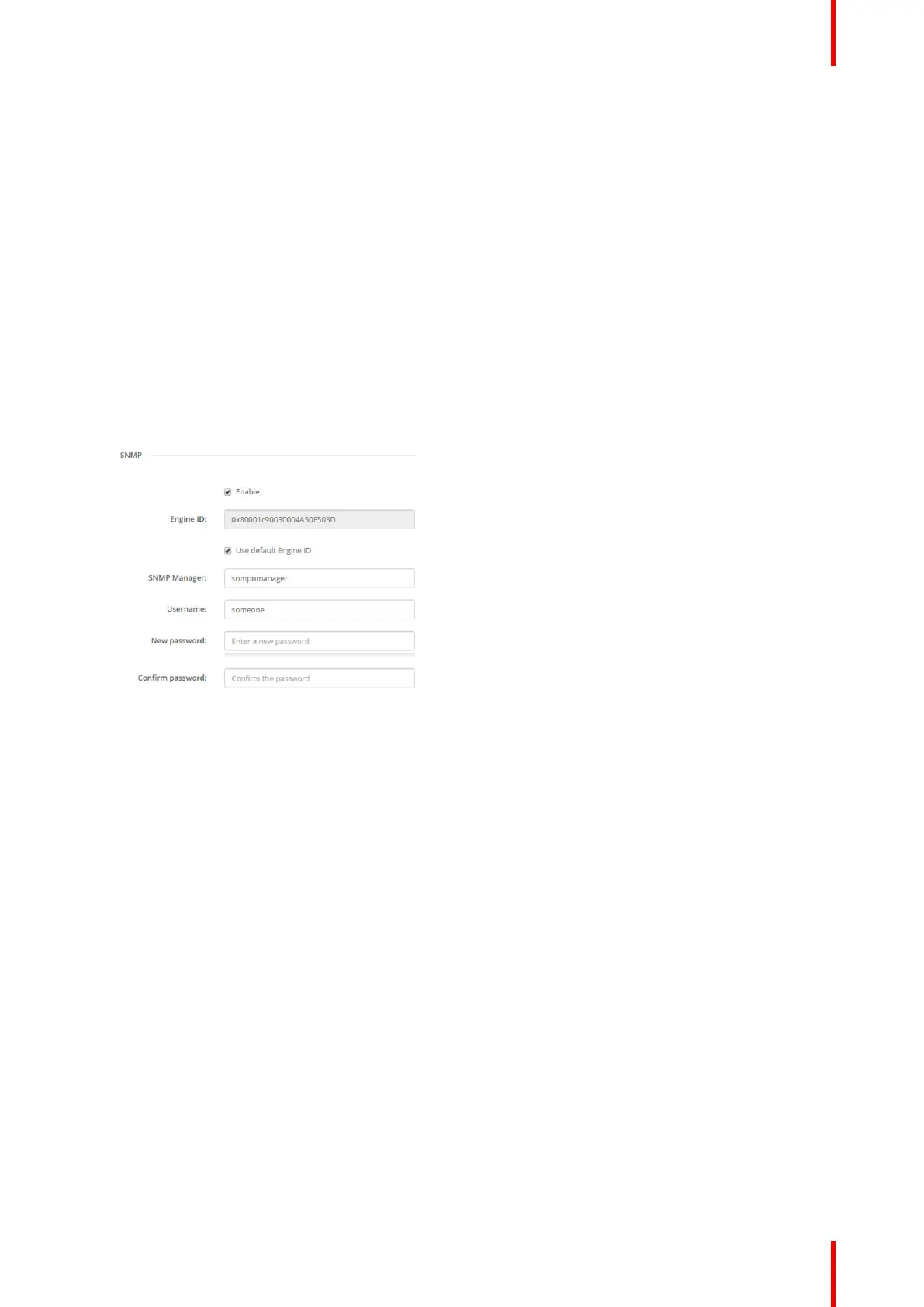

Image 5–36 Service, SNMP
4. Check the check box in front of Enable.
The configuration fields become available.
How to configure
1. When using the default Engine ID, make sure the check box before Use default Engine ID is checked.
The default engine ID is a combination of the Barco Enterprise Number with the MAC-address (eth0).
2. Fill out the SNMP Manager address.
That is the host address which will receive the TRAP events/messages.
Possible traps can be:
• Alarm CPU temperature trap which indicates that CPU temperature exceeds the threshold.
• Alarm Case Fan Speed trap which indicates the case fan is spinning too slow.
• Alarm Process Not Running trap which indicates one of the monitored processes is not running.
3. Enter the Username.
4. Enter a new password and confirm that password.
