3.4 Wall or ceiling mounting
About wall or ceiling mounting
A mounting base is used to mount the CX-20 to the wall or ceiling. This base has key-shaped screw holes to
allow you to fasten the base to a wall or ceiling or you can use the self-adhesive layer to mount the base. Once
you determine the location for your device follow the next procedure to mount the device.
Mounting with screws
1. Take the mounting base out of the package.
2. Place the mounting base on the wall or ceiling and mark the screw holes (1).

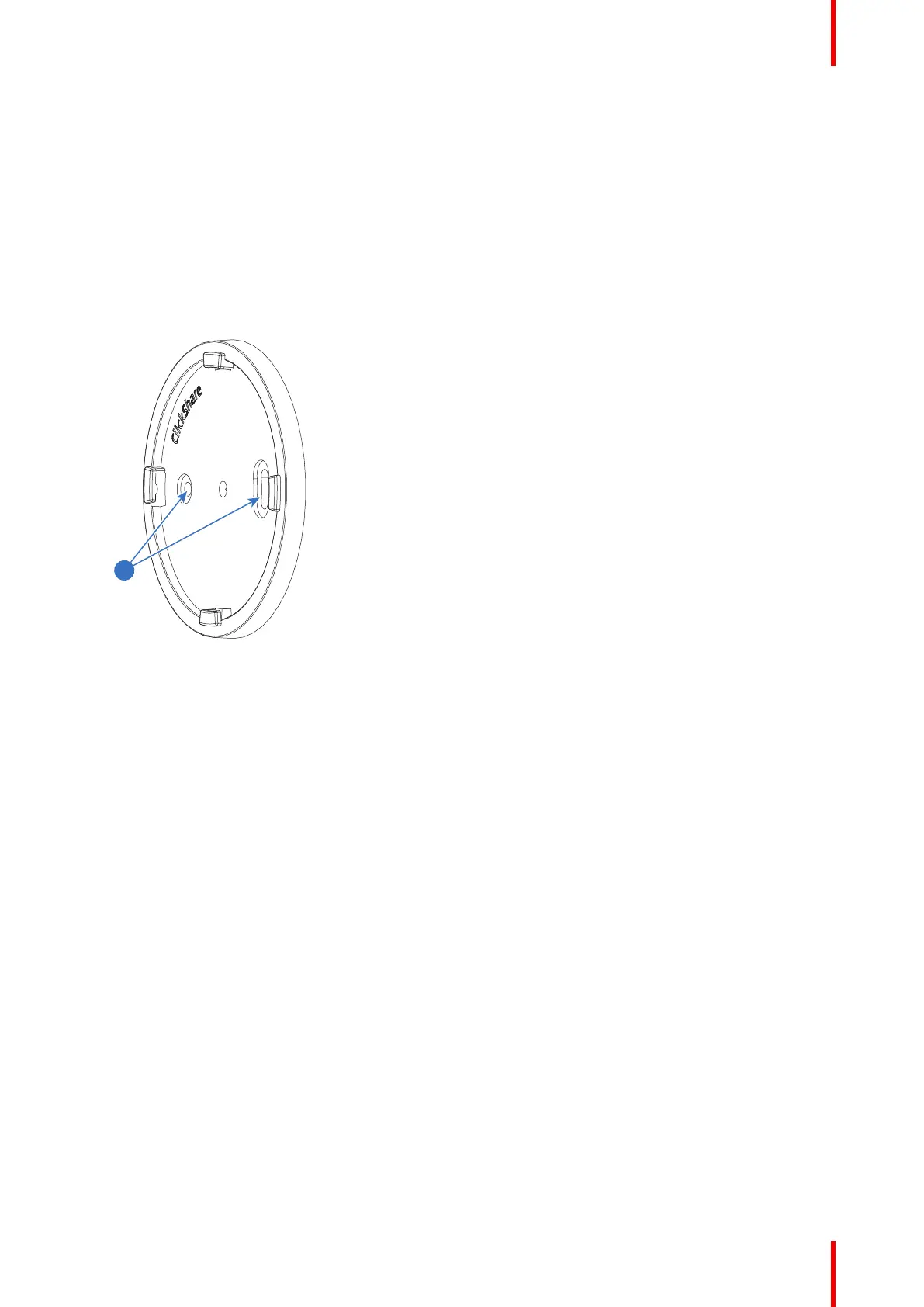

Image 3–1
3. Select a drill bit slightly smaller than the size of the used anchors to ensure a snug fit.
4. Drill the holes where marked.
5. Tap plastic screw anchors into the drill holes with a hammer (if needed, depending on the wall or ceiling
type).
6. Place the mounting base on the ceiling or wall, drive in the screws.
7. Place your device on the mounting base and turn it clockwise until it is locked.
