R5900102 /11 ClickShare CX-20118
5.29 Date & Time setup, time server
About using NTP server
The clock is continuously synchronized with an external time server and the deviation is in the order of
milliseconds. Extra time servers can be added.
As long as there is no synchronization with a time server the status is indicated as disabled.
How to setup
1. Log in to the Configurator.
2. Click System → Date & Time.

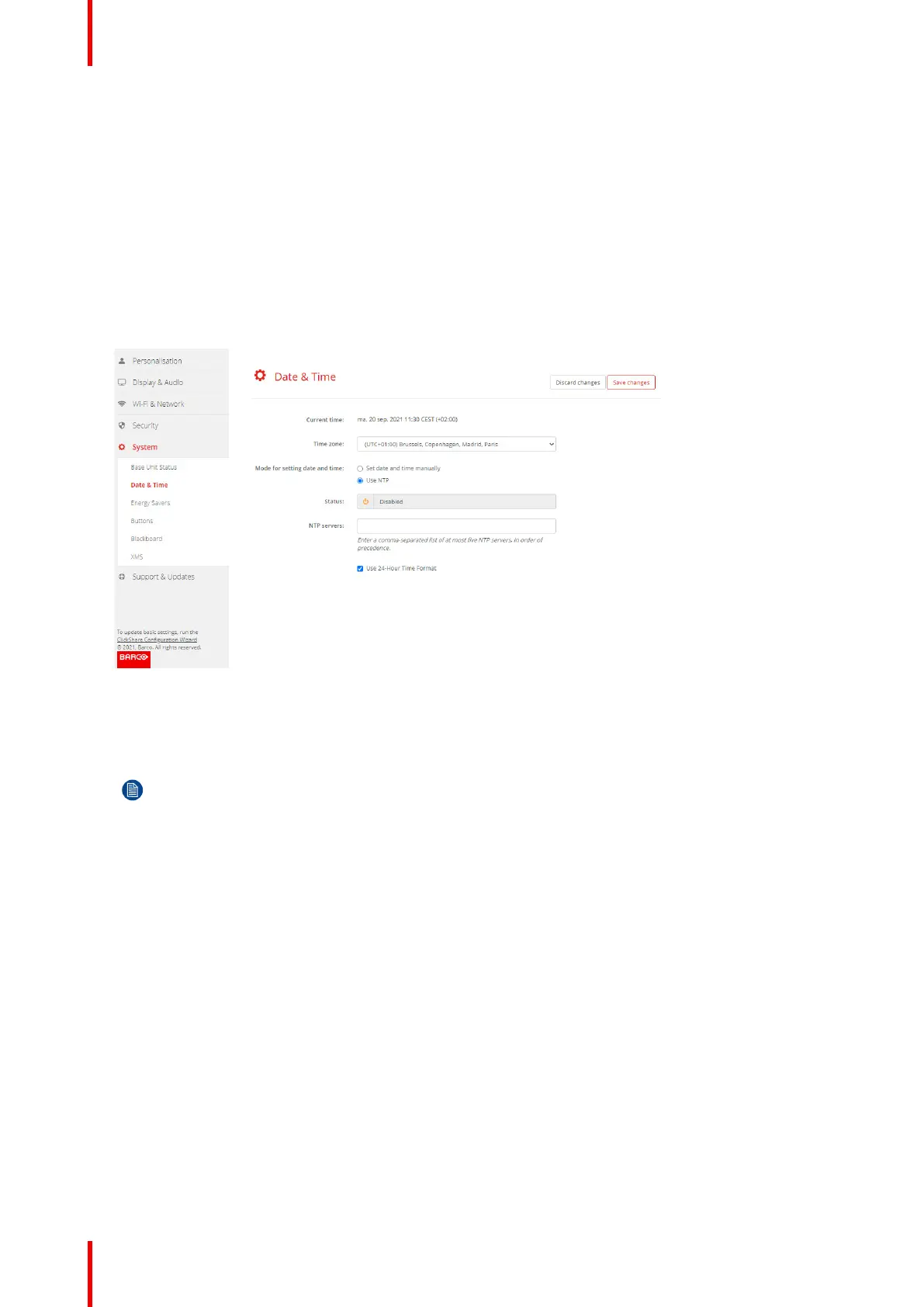

Image 5–46 Time server setup
The current time is indicated next to Current time.
3. Check the radio button next Use NTP.
4. Enter a NTP server address next to NTP servers. Enter the IP address or server name.
Note: Multiple servers (maximum 5) can be added, separated by a comma.
5. Select the time format.
Checked: use of 24 hour time format
Not checked: use of 12 hour time format
6. Click Save changes to apply.
A synchronization with the NTP server takes place. The status field indicates the progress.
CX-20 Configurator
