BARTEC BENKE HYGROPHIL F 5673 - 1.4.7 Relay-Interface module Type 5673-115

System description
1-17
HYGROPHIL® F 5673 Operating manual, Software version 1.8.x, 387896MDHEN(14.06.2013)

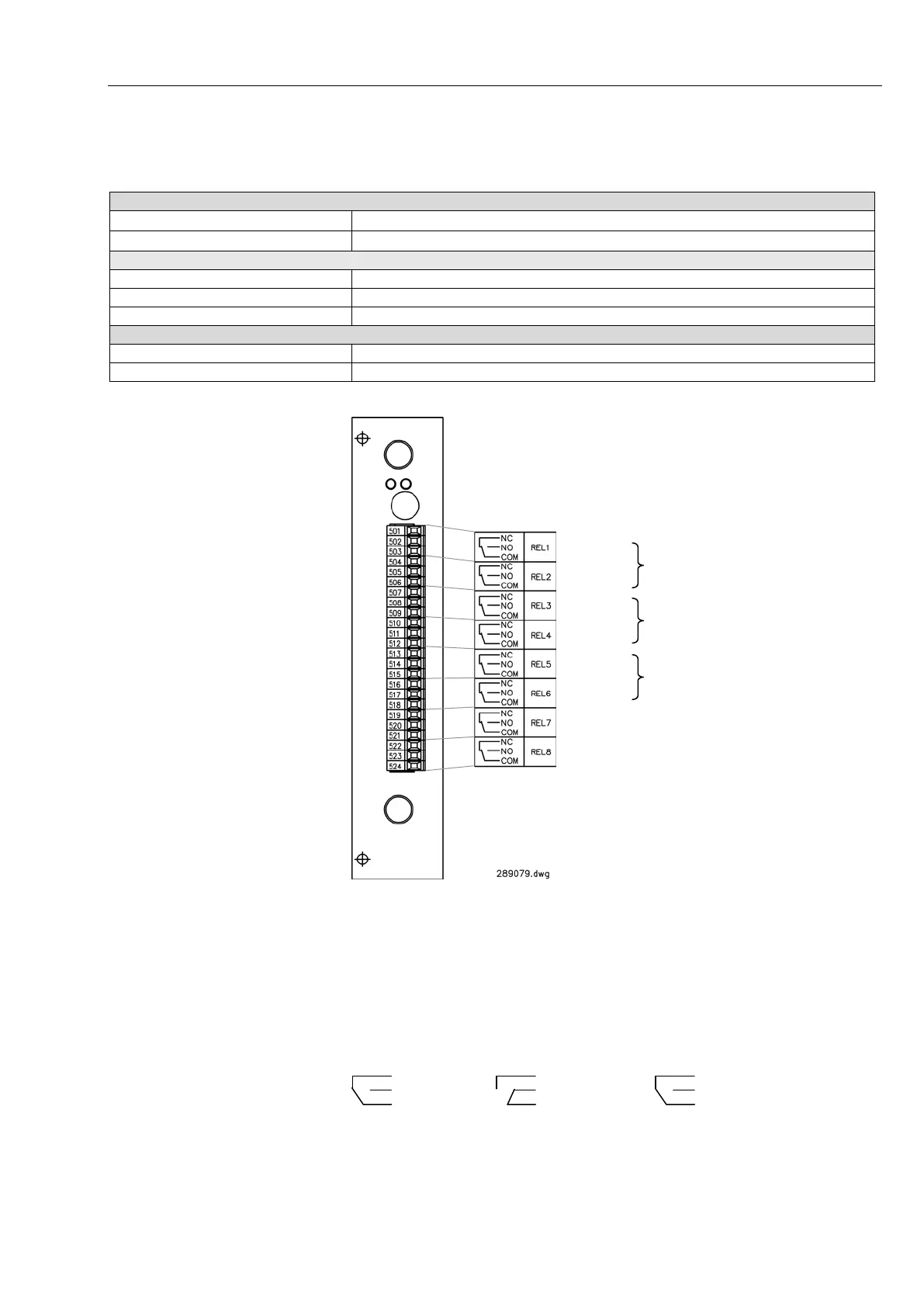

1.4.7 Relay-Interface module Type 5673-115
Electrical Data
Operating voltage CPU
DC 5.5 V ± 2 % 70 mA fuse 500 mA
Operating voltage 24 V
DC 24 V ± 5 % 60 mA fuse F3A
Relays
Type
Change-over contact
Insulation
1500 vrms
Contacts
30V, 1A
Ambient conditions
Operating temperature
- 10 … + 50 °C
Storage temperature
- 20 … + 70 °C
Switching operations:
From software version 1.7.7 the switching operations have changed as fol-
lows: The relays are activated in normal operation and deactivated when
causing an ERROR- or LIMIT-signal.
Error
Limit
Error
Limit
Error
Limit
not used
not used
Channel 1
Channel 2
Channel 3
NC
NO
COM
NC
NO
COM
NC
NO
COM
Analyzer off
Analyzer on
no ERROR
no LIMIT
Analyzer on
ERROR
LIMIT
