Installation
3-13
HYGROPHIL® F 5673 Operating manual, Software version 1.8.x, 387896MDHEN(14.06.2013)
3.3.3 Installation advice
Before installing the sensor make sure that the stainless steel protection cap
is screwed tightly to the tip of the sensor.
The sensor L166x can be fitted with any suitable compression type fitting.

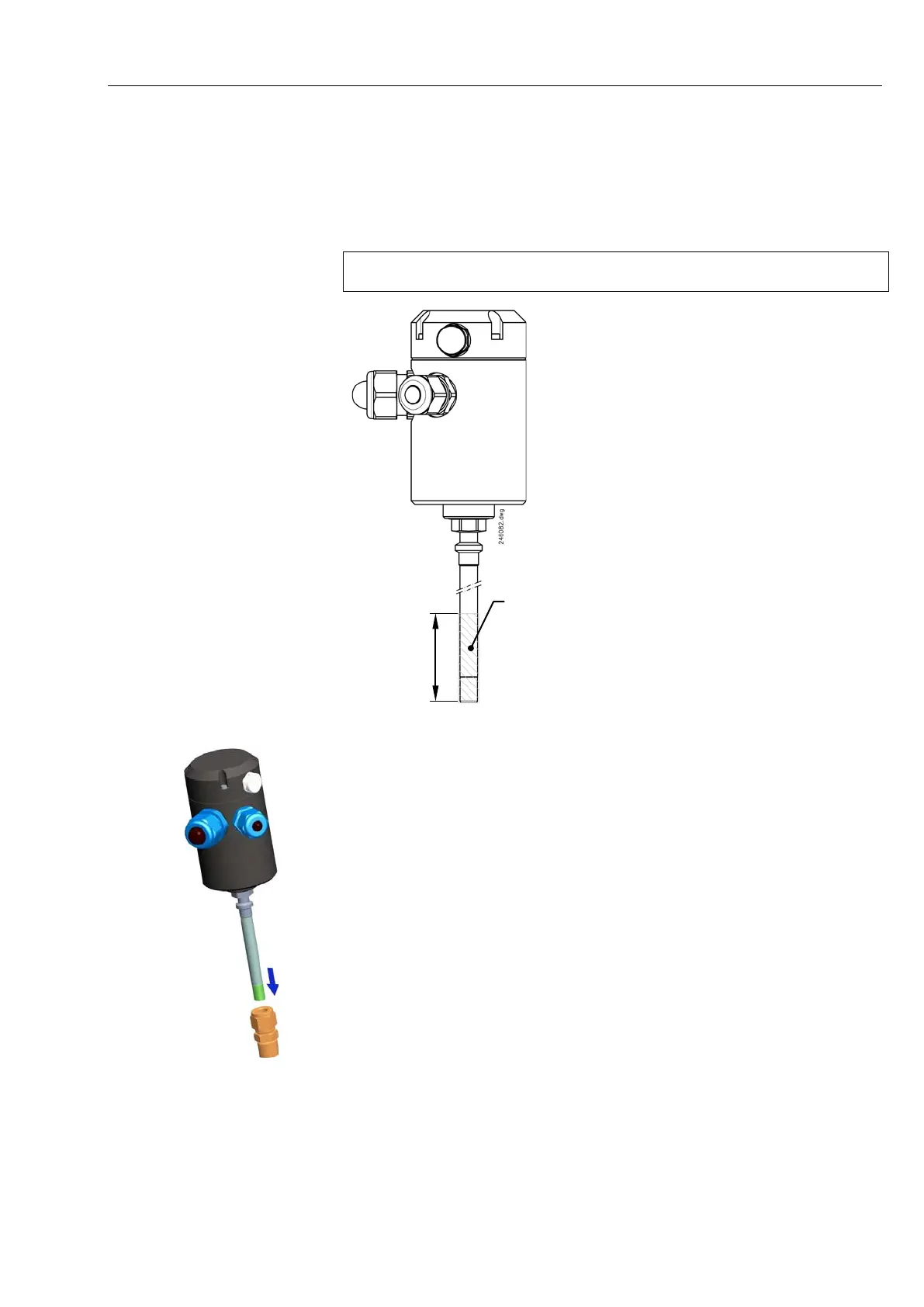

Never mount the ferrules within the distance of 50 mm, measured from the
sensor tip (incl. protection cap ) !
The following sequence describes the procedure to install the sensor in the
gas-/ liquid-separator with Swagelok fittings.
This applies to union-T and slow down section likewise. At the retraction
tool, the nut is already mounted on the sensor.
1. Assemble union nut with back and front ferrule on the connector.
Make sure that both ferrules are fitted correctly.
2. Insert the sensor in the union nut until the tip of the sensor hits the bot-
tom of the sample cell.
3. Mark the immersion depth with a pen approx. 1 mm above the union nut.
4. Lift the sensor appr. 8...10 mm.
sensor in this
area!
