BARTEC BENKE HYGROPHIL F 5673 - 1.4.8 Polychromator plug-in unit type 5673-302; 1.4.9 Humidity sensor L166 x

System description
1-18
HYGROPHIL® F 5673 Operating manual, Software version 1.8.x, 387896MDHEN(14.06.2013)

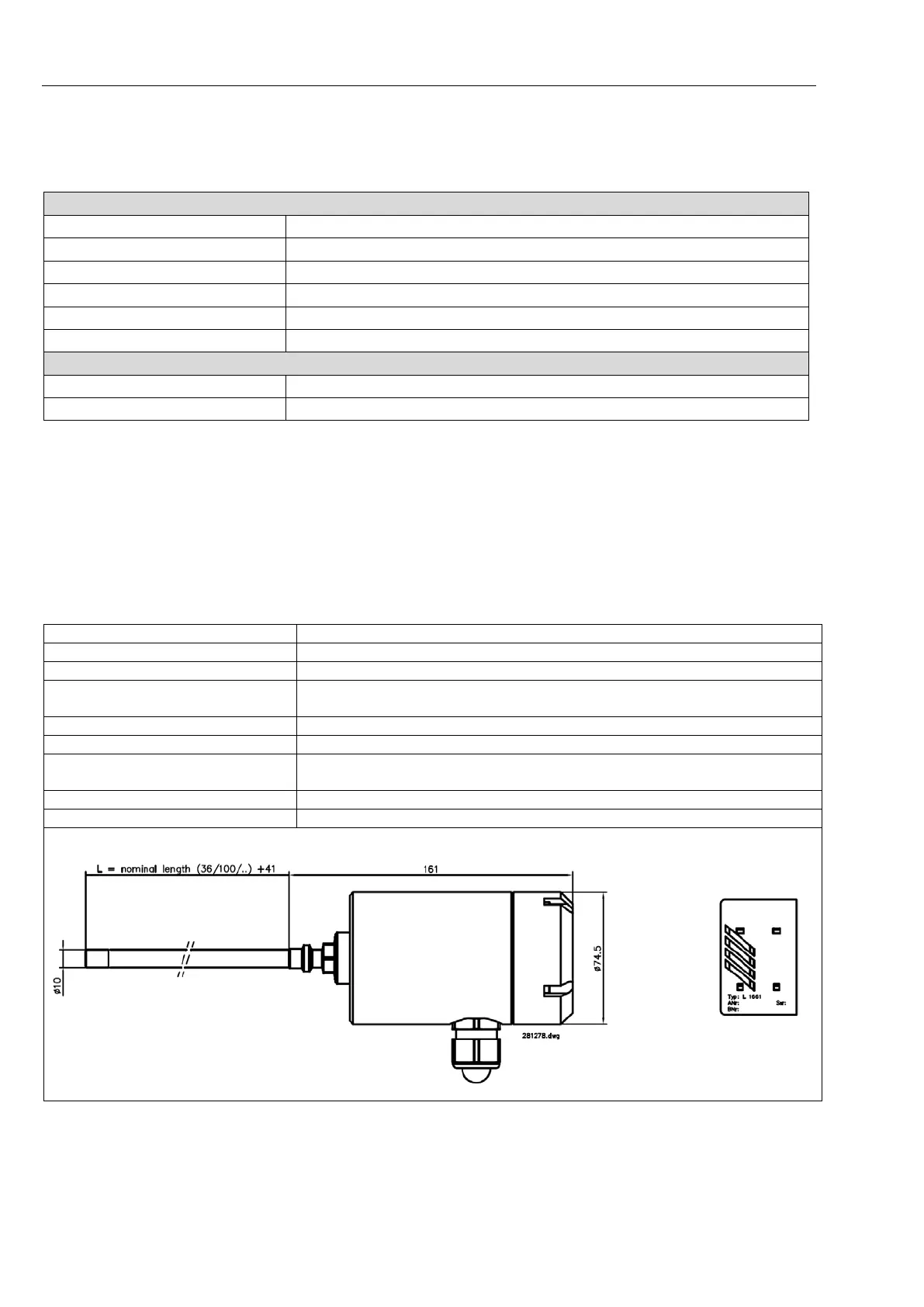

1.4.8 Polychromator plug-in unit type 5673-302
Electrical data
Operating voltage
DC 5.5 V
Power consumption
200 mA
Connection type
ST plug optical (sensor)
Interface
USB 12 Mbit/s (full speed)
Measuring range
ca. 720...870 nm
Resolution
2000 Pixel
≅
0.17 nm/Pixel
Ambient conditions
Operating temperature -10…+50 °C
Storage temperature
-20…+60 °C
1.4.9 Humidity sensor L166x
The sensor is designed with a pore structure suitable for trace humidity ap-
plications. A single sensor element covers the dew-point range from +20 °C
DT to -80 °C DT at duty temperatures of up to 60 °C. Moisture condensation
does not impair the sensor; once dry it can be used again without having to
be recalibrated, i.e. it can be used without difficulty in most processes sub-
ject to temporary condensation.
Permissible working temperature
-30...+60 °C
Permissible storage temperature
-30...+ 60 °C
Integrated Pt100
DIN IEC 751, 4-wire class A
Max. permissible working pres-
sure
100 bar, 200 bar on request with certificate (gas-pressure test)
Calibrated Range
-80 … +20 °C DT
Accuracy
+/- 1 K
Material
Shaft: 1.4571
Sensor head: POM
Protection type
IP 65 (in built-in state)
Approvals
ATEX, CSA, CRN, GOST
Dimensions in mm
