3 Installation
3.1 General
● Before installing the evaluation unit, make sure that your supply voltage is
the same as that set on the evaluation unit (AC 100…240 V or DC
10…36 V).
● If you want to use the output signals from the analog output and relay
outputs to control any processes, signaling devices or the like, install the
necessary wiring
● Remove the guard caps from the tip of the sensor, the light waveguide
connectors and the ports on the back of the evaluation unit.
3.2 Arrangements for EMC

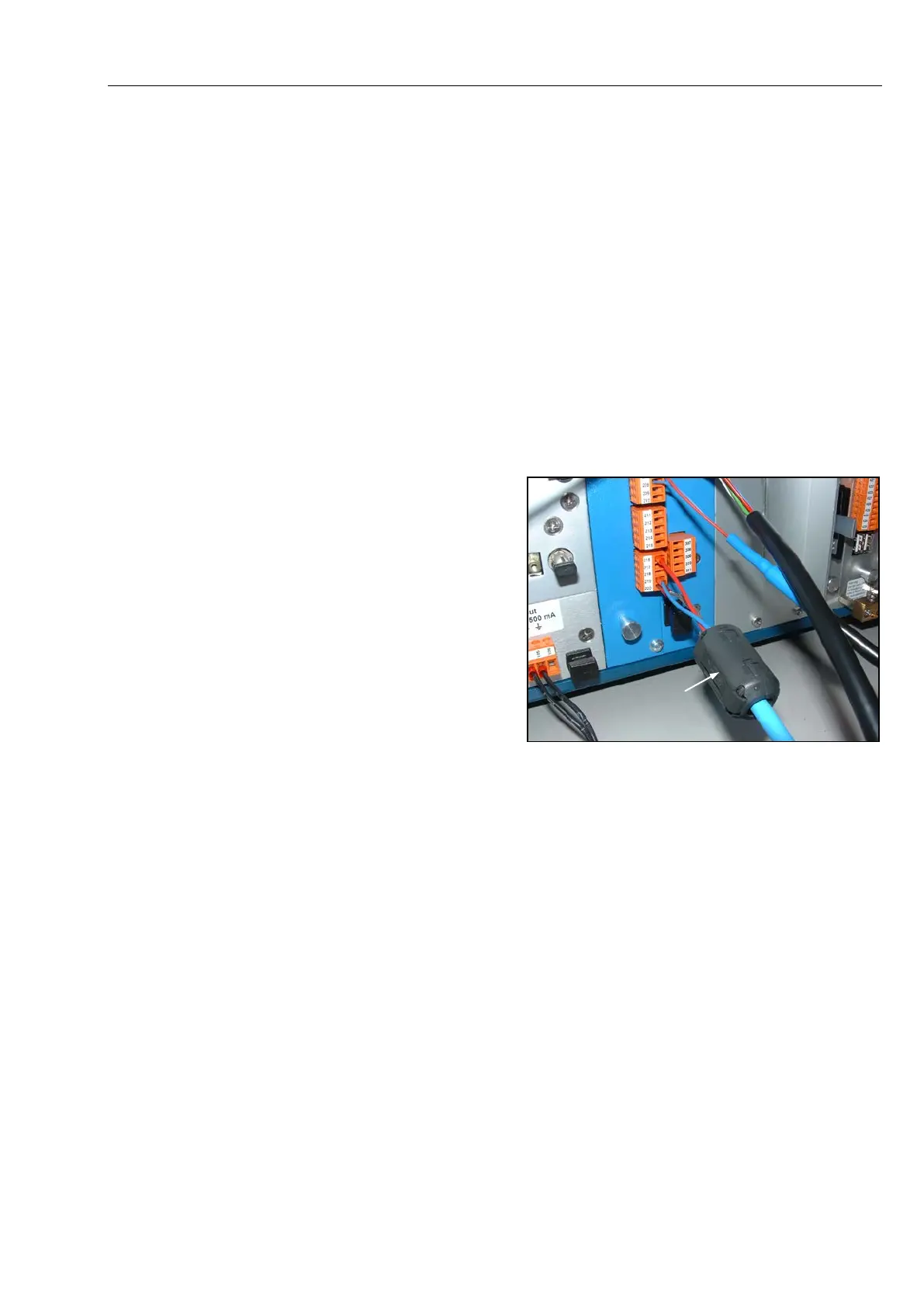

Ferrite noise filters
must be fixed to the
cables according to the
specifications in the
technical data of the
plug in units.
After locking the plug
contacts the filters may
no more shift.
Included in delivery are 5 ferrite noise filters. If you need some more, you
can order them (order no. 275368).
You can also order other types for different diameters of cables.
