BARTEC BENKE HYGROPHIL F 5673 - 3.3 Sensor L166 x; 3.3.1 Wiring the sensor L166 x

Installation
3-2
HYGROPHIL® F 5673 Operating manual, Software version 1.8.x, 387896MDHEN(14.06.2013)
3.3 Sensor L166x
3.3.1 Wiring the sensor L166x

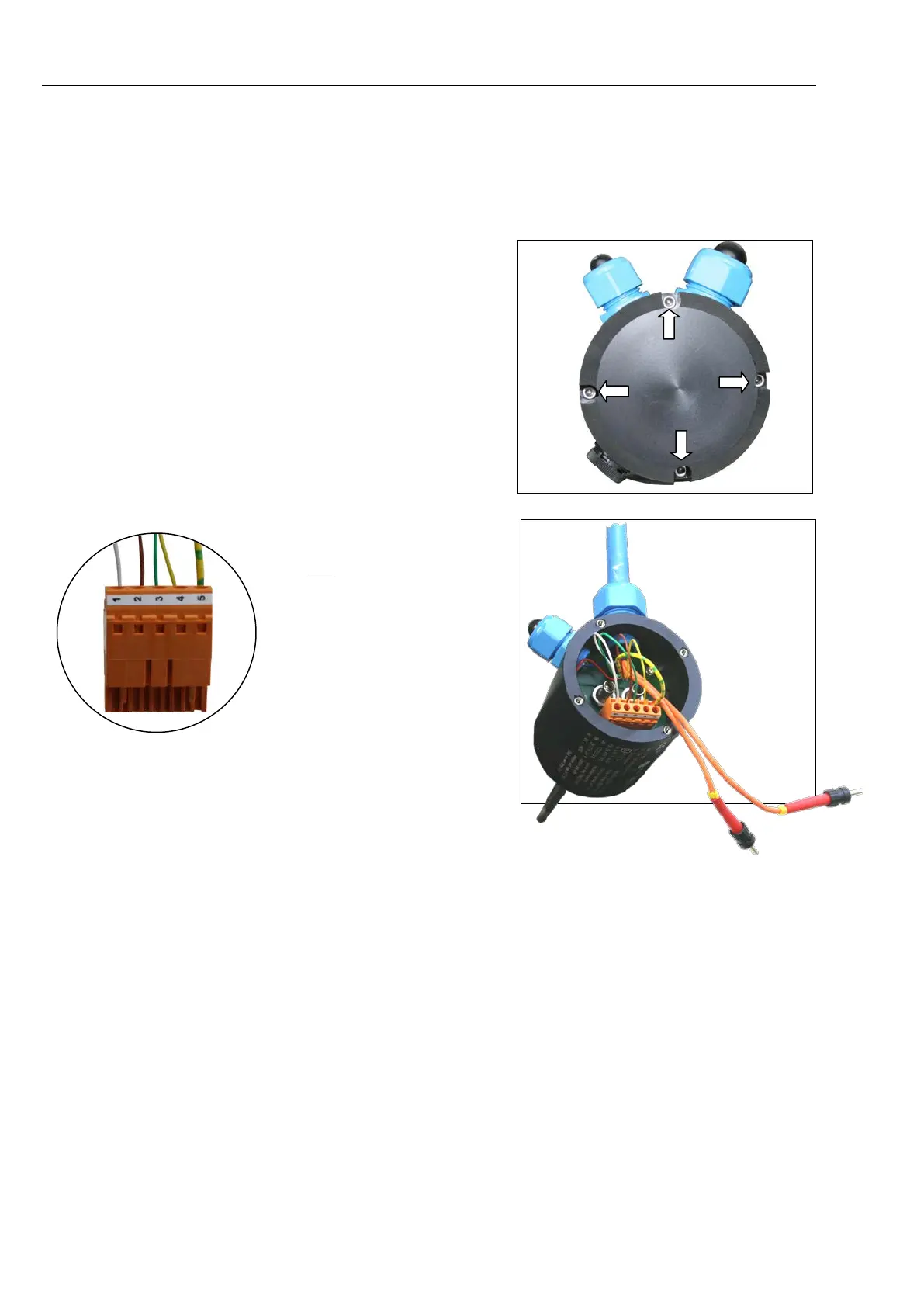

● Remove the 4 screws and
open the casing.
● Connect the Pt 100 cable
first.
Connect the terminals 1 to 5
in the sensor casing to the
terminals 201 to 205 at the
back of the evaluation unit
(see fig. at following page).
