Installation
3-6
HYGROPHIL® F 5673 Operating manual, Software version 1.8.x, 387896MDHEN(14.06.2013)
3.3.2 Installing the sensor L166x
3.3.2.1 Installing accessories
The following accessories are available for installing the sensor:
● Sampler type
: 5672-111 (6 mm) (union-T) (SCS)
● Sampler
type: 5672-112 (10 mm)
● Gas- / Liquid-separator (SCS) type: 5985-00-003
● Retraction tool t
ype: 5672-115
3.3.2.2 Assembly examples

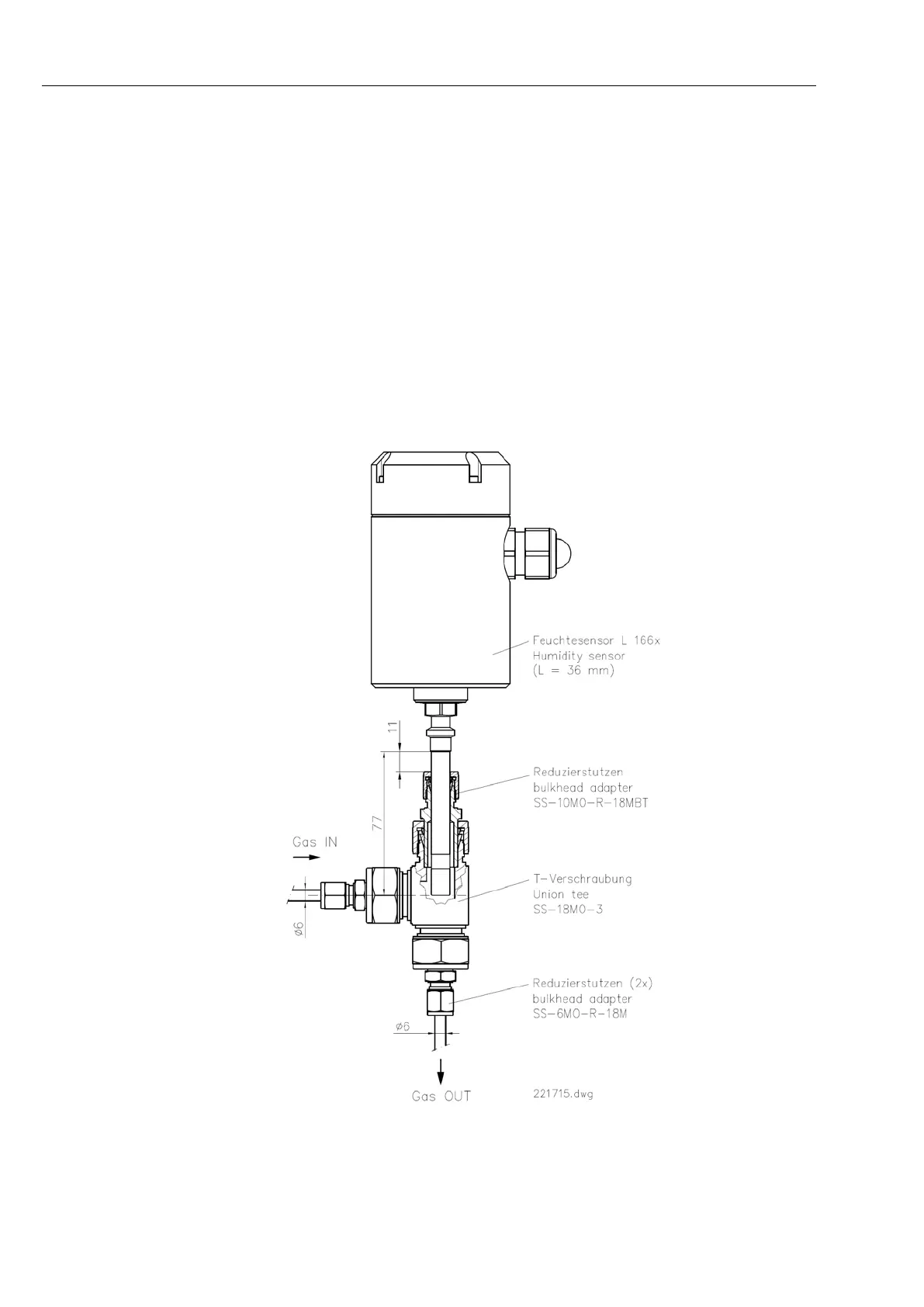

Installation in an analysis pipe via sampler
Type: 5672-111 (6 mm) (union-T), dimensions in mm
