Basler DGC-2020 User Manual

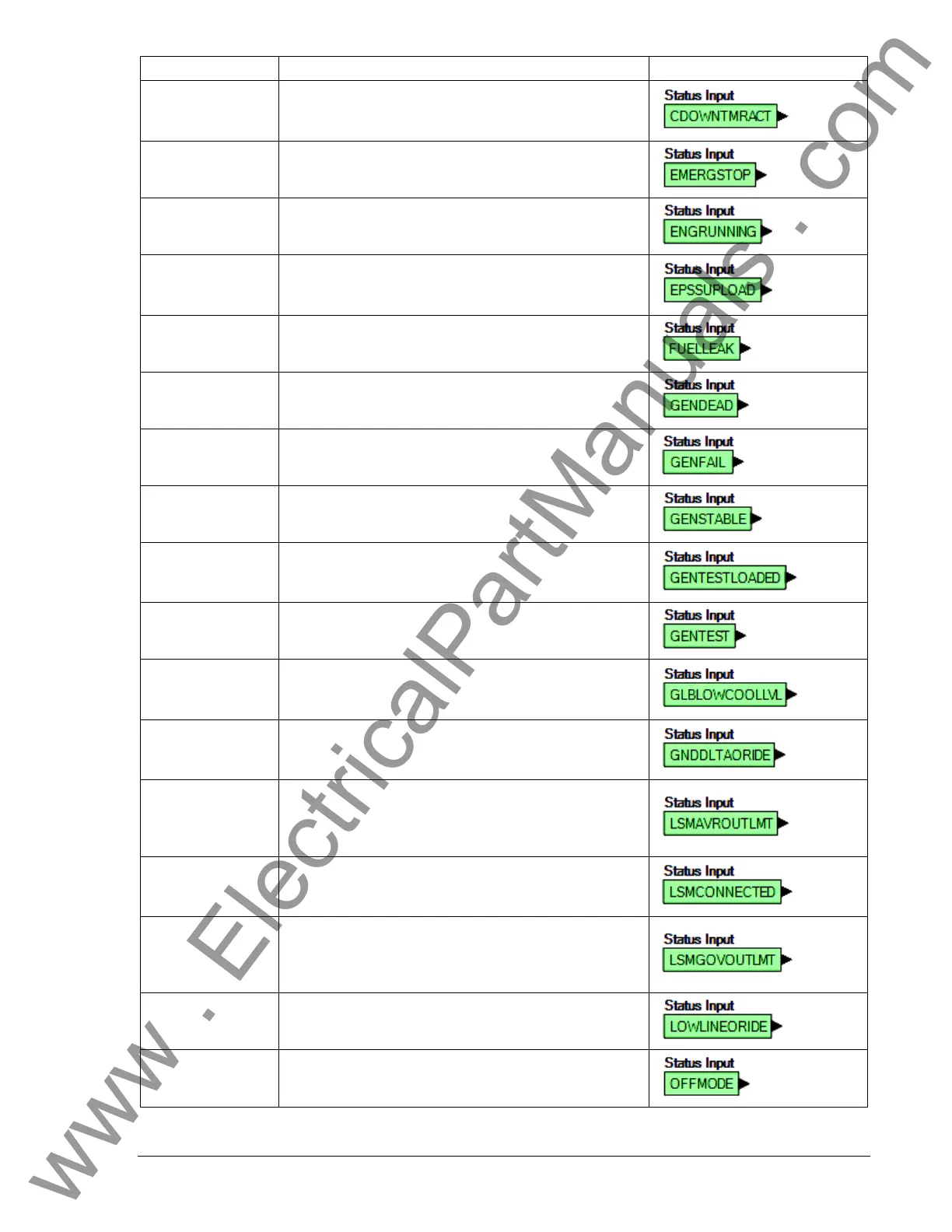

9400200990 Rev I DGC-2020 BESTlogic+ Programmable Logic 5-3
Name Description Symbol
Status Input
Cool Down Timer
Active
TRUE when the Cool Down Timer is timing out.
Status Input
Emergency Stop
TRUE when the Emergency Stop button has been
pressed.
Status Input
Engine Running
TRUE while the Engine is Running.
Status Input
EPS Supplying
Load
TRUE while the EPS is supplying load.
Status Input
Fuel Leak
TRUE when the Fuel Leak Detect input is TRUE.
Status Input
Generator Dead
TRUE when the Gen Dead condition settings have been
exceeded.
Status Input
Generator Fail
TRUE when the Gen Fail condition settings have been
exceeded.
Status Input
Generator Stable
TRUE when the Gen Stable condition settings have
been exceeded.
Status Input
Generator Test
Loaded
TRUE when the Exercise Timer has started the
generator and run with load is selected.
Status Input
Generator Test
TRUE when the Exercise Timer has started the
generator.
Status Input
Global Low
Coolant Level
TRUE when the Low Coolant Level input is TRUE.
Status Input
Ground Delta
Override
TRUE when the Grounded Delta Override input is
TRUE.
Status Input
Load Share
Module AVR
Output Limit
TRUE when the LSM-2020 AVR Output Limit settings
have been exceeded.
Status Input
Load Share
Module Connected
TRUE when an optional LSM-2020 is connected to the
DGC-2020.
Status Input
Load Share
Module Governor
Output Limit
TRUE when the LSM-2020 Governor Output Limit
settings have been exceeded.
Status Input
Low Line Override
TRUE when the Low Line Override input is TRUE.
Status Input
Off Mode
TRUE when the DGC-2020 is in Off Mode.
