5-4 DGC-2020 BESTlogic+ Programmable 9400200990 Rev I

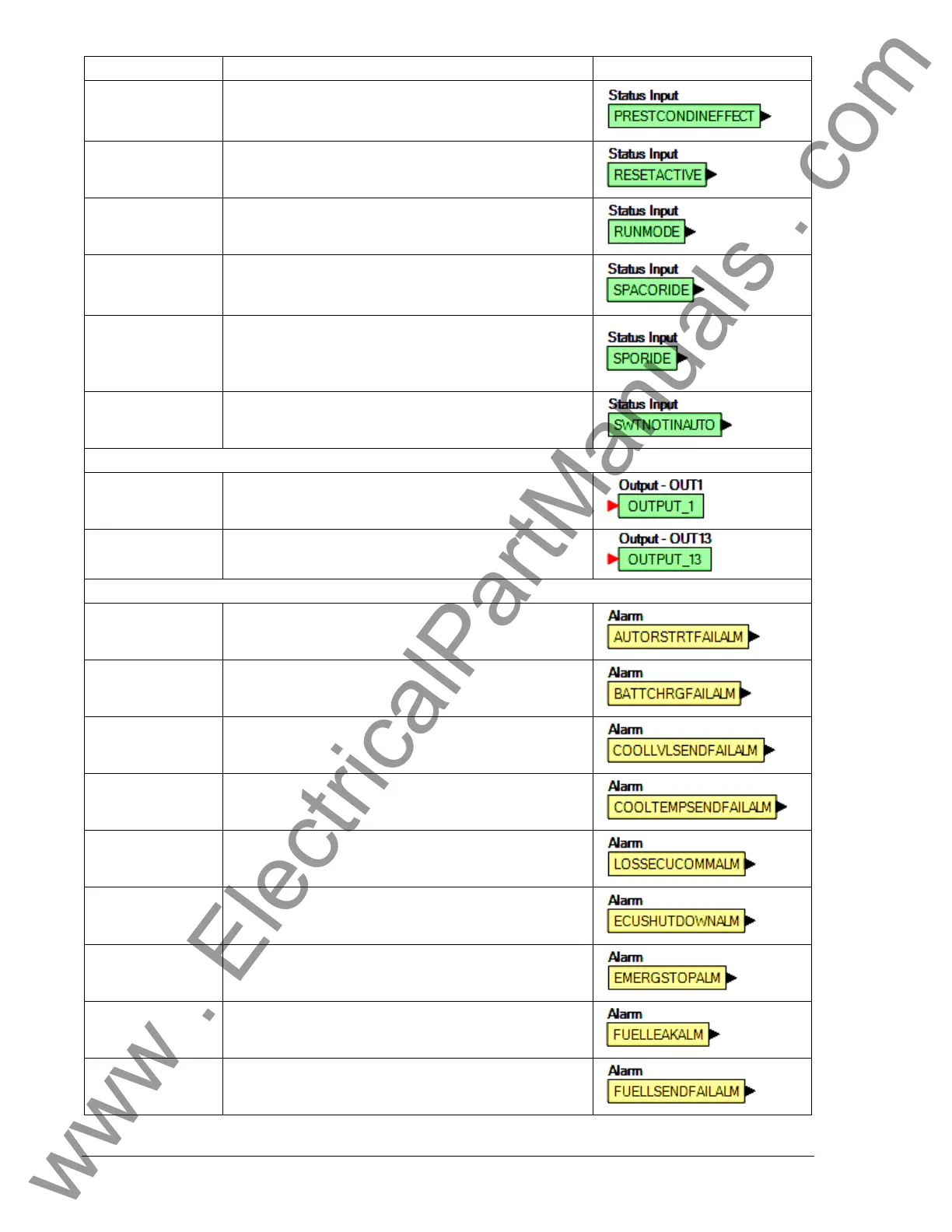

Name Description Symbol
Status Input
Pre Start Condition
in Effect
TRUE while in the Pre-Start state.
Status Input
Reset Active
TRUE while the Reset button on the HMI is pressed.
Status Input
Run Mode
TRUE when the DGC-2020 is in Run Mode.
Status Input
Single Phase AC
Sensing Override
TRUE when the Single Phase AC Override input is
TRUE.
Status Input
Single Phase
Connection
Override
TRUE when the Single Phase Override input is TRUE.
Status Input
Switch not in Auto
TRUE when the DGC-2020 is not in Auto Mode.
Output Objects
Physical Outputs
OUT1 - OUTx
Physical Outputs 1 through 7 (style xxAxxxxx) or 1
through 15 (style xxBxxxxx).
Remote Outputs
OUT13 - OUT36
True when Remote Output x is active.
(Available when an optional CEM-2020 is connected.)
Alarms
Auto Restart Fail
TRUE after the Automatic Restart function fails to restart
the generator.
Battery Charger
Fail
TRUE when the Battery Charger Fail function is
configured as an Alarm and the activation delay has
expired.
Coolant Level
Sender Fail
TRUE when a low coolant level error status code is
received from the ECU. Canbus must be enabled.
Coolant Temp
Sender Fail
TRUE when the Coolant Temp Sender Fail is configured
as an Alarm and the activation delay has expired.
ECU Comm Loss TRUE when communication to ECU has been lost.
ECU Shutdown TRUE when ECU has Shutdown the engine.
Emergency Stop
TRUE when the Emergency Stop button has been
pressed.
Fuel Leak
TRUE when the Fuel Leak Detect function is configured
as an Alarm and the activation delay has expired.
Fuel Level Sender
Fail
TRUE when the Fuel Level Sender Fail is configured as
an Alarm and the activation delay has expired.
