9400200990 Rev I DGC-2020 BESTlogic+ Programmable Logic 5-5

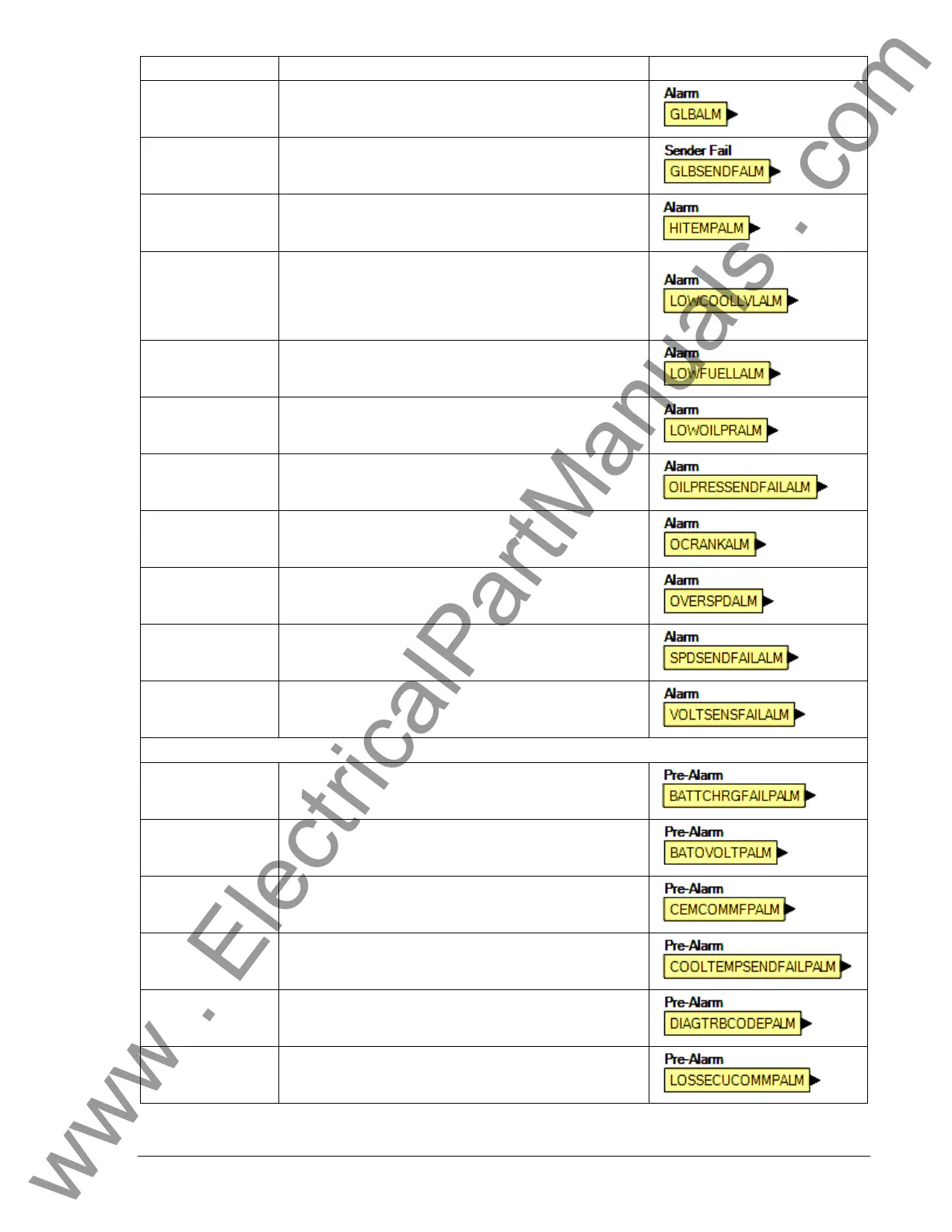

Name Description Symbol
Global Alarm TRUE when one or more Alarms are set.
Global Sender Fail
TRUE when one or more of the Sender Fails are
configured as Alarms and are TRUE.
Hi Coolant Temp
TRUE when the High Coolant Temp Alarm settings have
been exceeded.
Low Coolant Level
TRUE when the Low Coolant Level function is
configured as an Alarm and the activation delay has
expired. In addition, TRUE when Canbus is enabled and
the Low Coolant Level Alarm threshold has been
exceeded.
Low Fuel Level
TRUE when the Low Fuel Level Alarm settings have
been exceeded.
Low Oil Pressure
TRUE when the Low Oil Pressure Alarm settings have
been exceeded.
Oil Pressure
Sender Fail
TRUE when the Oil Pressure Sender Fail is configured
as an Alarm and the activation delay has expired.
Overcrank TRUE when an Overcrank condition exists.
Overspeed
TRUE when the Overspeed Alarm settings have been
exceeded.
Speed Sender Fail
TRUE when the Speed Sender Fail activation delay has
expired.
Voltage Sensing
Fail
TRUE when the Voltage Sensing Fail is configured as an
Alarm and the activation delay has expired.
Pre-Alarms
Battery Charger
Fail
TRUE when the Battery Charger Fail function is
configured as a Pre-Alarm and the activation delay has
expired.
Battery
Overvoltage
TRUE when the Battery Overvoltage Pre-Alarm
threshold has been exceeded.
Contact Expansion
Module Comm Fail
TRUE when communication from the CEM-2020 to the
DGC-2020 has been lost.
Coolant Temp
Sender Fail
TRUE when the Coolant Temp Sender Fail is configured
as a Pre-Alarm and the activation delay has expired.
Diag Trouble Code TRUE when a Diagnostic Trouble Code exists.
ECU Com Loss TRUE when communication to ECU has been lost.
