Mechanical Considerations
5-4 BASLER L304kc
Draft
5.3 Sensor Line Location
The location of the sensor Lines on the sensor chip is as shown in Figure 5-3.

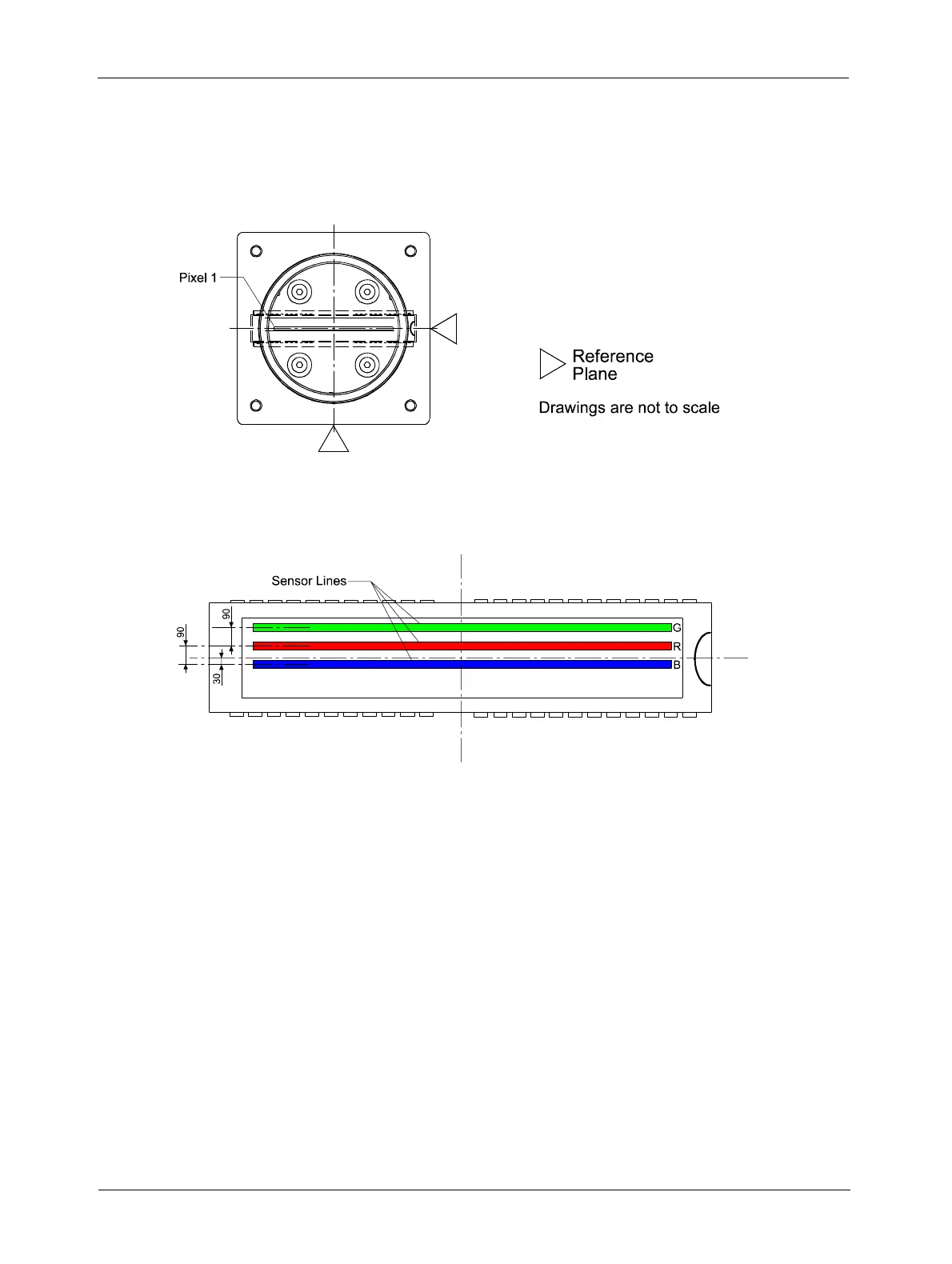

Figure 5-3: Sensor Line Location (in microns)
