Basler L304kc User Manual

Operation and Features
BASLER L304
kc 3-33
Draft

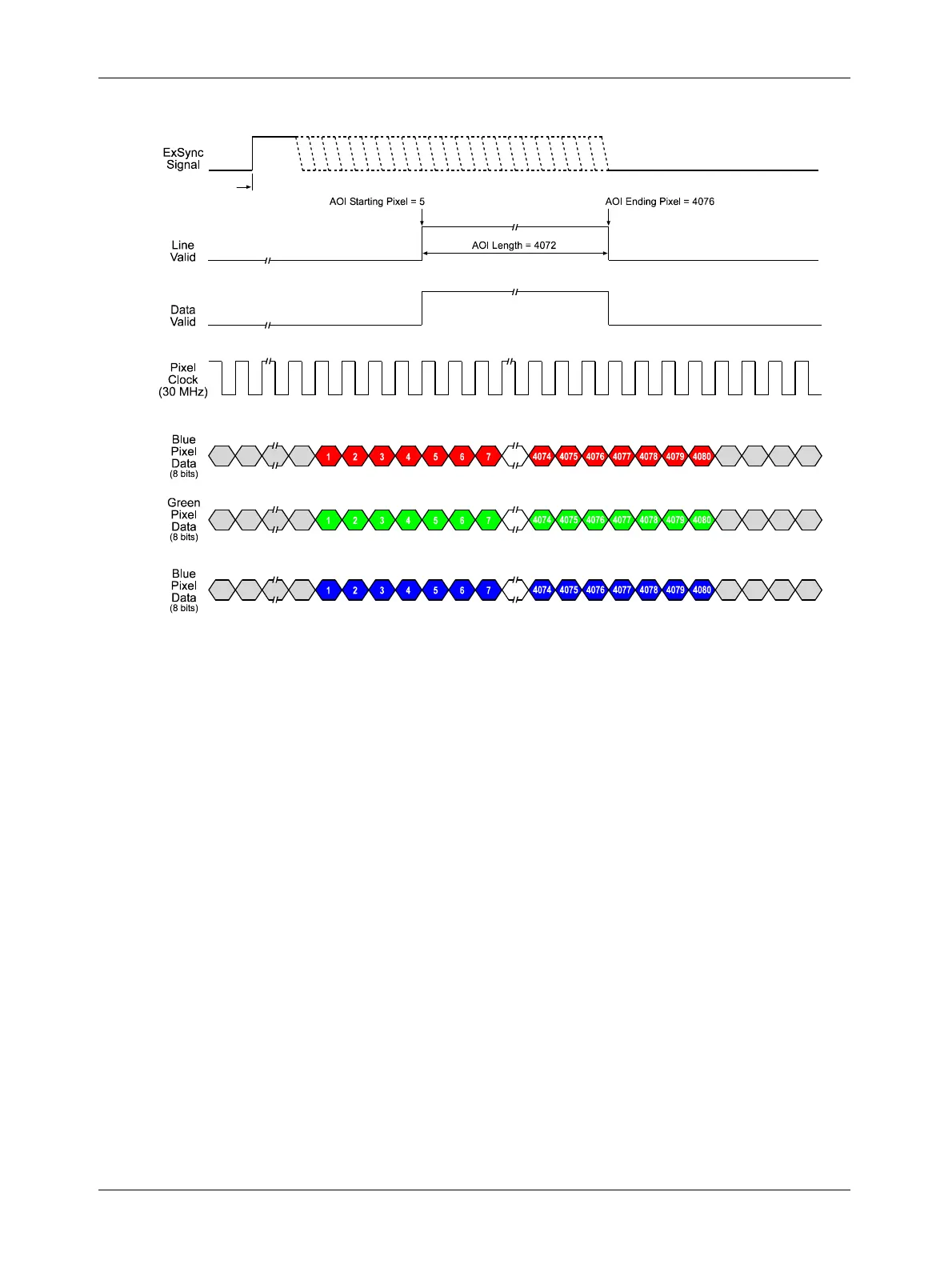

Figure 3-23: AOI Operation on a Camera set for 3 Tap 8 Bit Output
3.7.1 Setting the AOI
You can set the AOI with the Camera Configuration Tool Plus (CCT+) or by using binary write
commands from within your own application to set the camera’s control and status registers
(CSRs).
With the CCT+
With the CCT+ (see Section 4.1), you use the AOI Starting Pixel parameter and the AOI Length
parameter in the AOI parameters group to set the AOI.
By Setting CSRs
You set the AOI starting pixel by writing a value to the Starting Pixel field of the AOI Starting Pixel
CSR (see page 4-25).
You set the AOI length by writing a value to the Length field of the AOI Length CSR (see page 4-
26).
See Section 4.2.2 for an explanation of CSRs and Section 4.3.1 for an explanation of using read/
write commands.
