3.5 Spatial Correction
3.5.1 What is Spatial Correction?

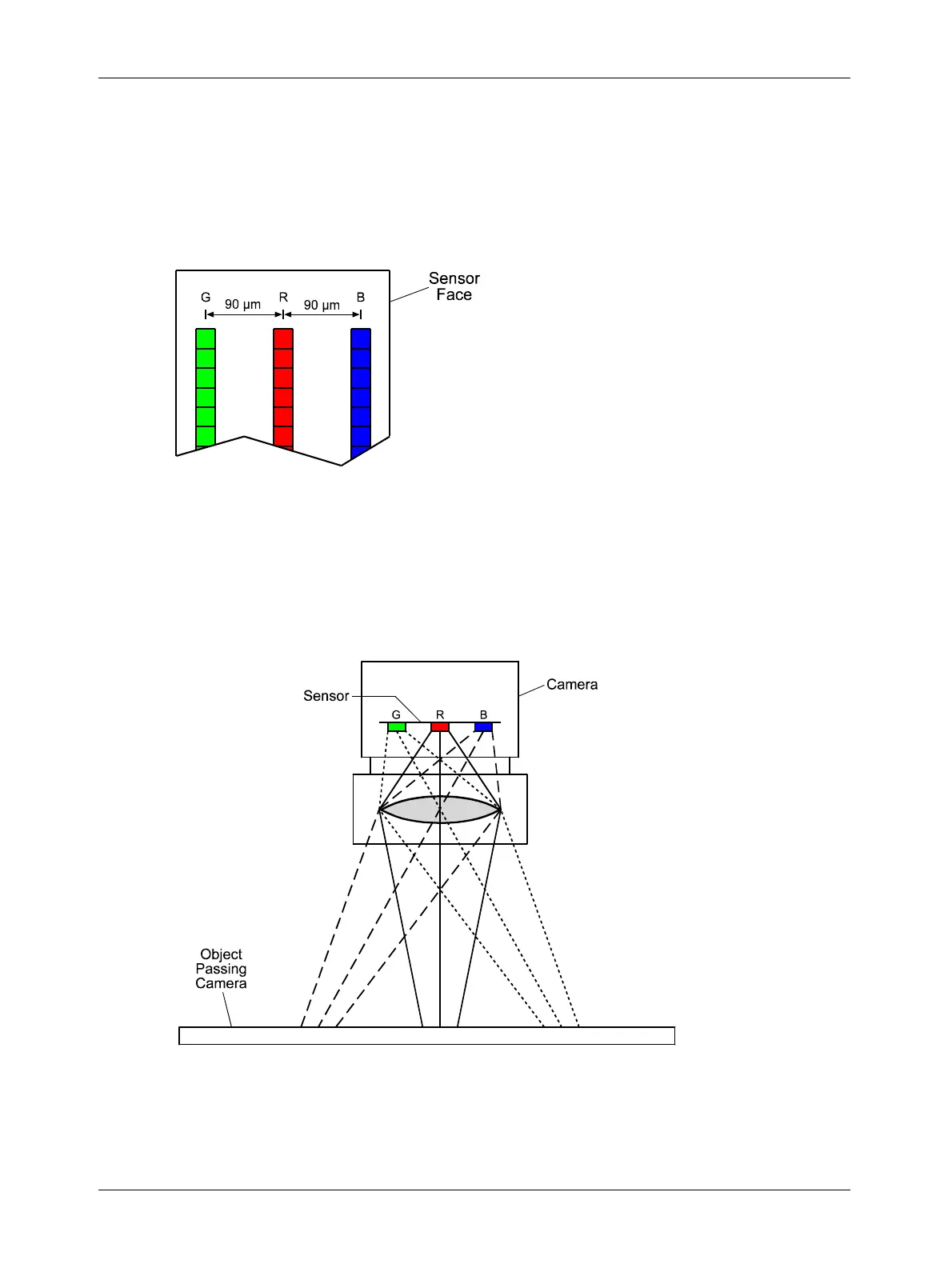

As shown in Figure 3-8, the sensor used in the L304kc has three lines of pixels and the lines are
spaced 90 µm apart center-to-center.
Figure 3-8: L304
kc Sensor Face
Due to the spacing between the lines, each line will have a different line of view on any object
passing the camera as shown in Figure 3-9. Whenever an exposure is triggered, all three lines in
the sensor are exposed simultaneously. This means that for a single exposure, each line in the
sensor captures a different area on the object.
Figure 3-9: Field of View for Each Line
